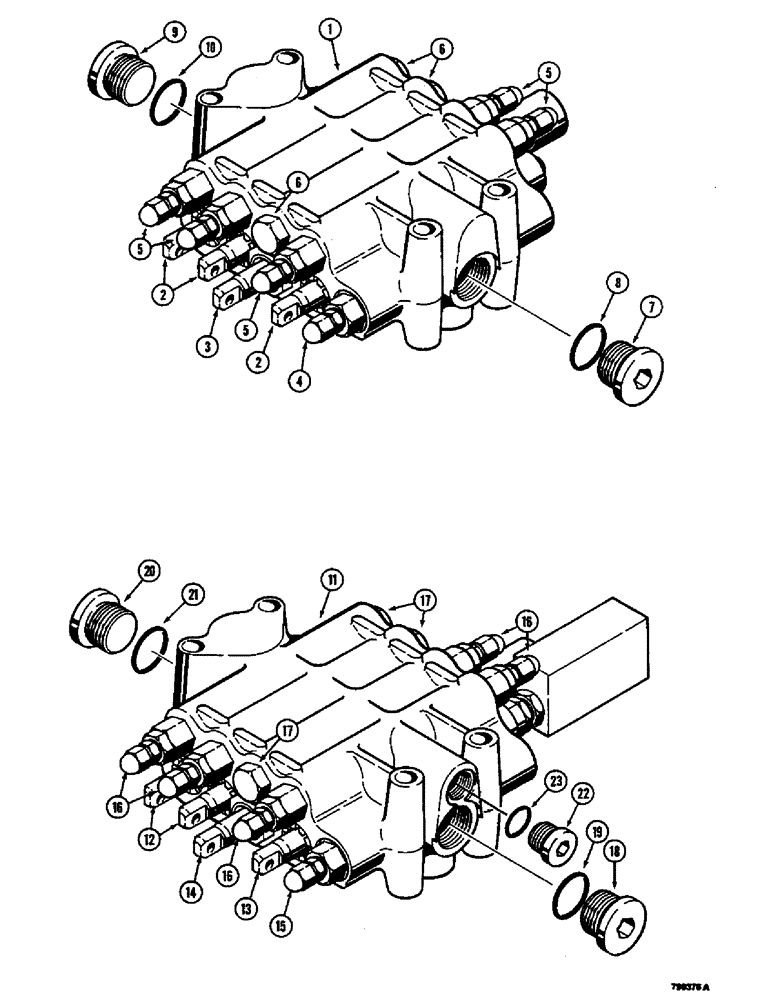

Запчасти Case 350B (210) - FOUR SPOOL CONTROL VALVES, LOADER MODELS (07) - HYDRAULIC SYSTEM

1

R42410

CONTROL VALVE ASSEMBLY - loader, Parker no. VDSP22DFDD6, w/o magnetic detent, Includes: Ref. 2 - 10

1шт.

2

N7982

SPOOL

- three position, parts list figure 220, w/o magnetic detent

3шт.

3

N6592

VALVE

SPOOL - four position, parts list figure 224, w/o magnetic detent

1шт.

4

W16129

VALVE PRESSURE RELIE

VALVE - main relief, parts list figure 216, w/o magnetic detent

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - circuit relief and load check, parts list figure 226, w/o magnetic detent

5шт.

6

NSS

NOT SOLD SEPARAT

VALVE - load check, parts list figure 228, w/o magnetic detent

3шт.

7

9841223

PLUG,1-1/16" - 12 ORB

w/o magnetic detent, Incl. Ref. 8 Hex Soc, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, w/o magnetic detent

1шт.

9

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

w/o magnetic detent, Incl. Ref 10 Hex Soc, 1 5/16"-12 ORB

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, w/o magnetic detent

1шт.

11

R42413

CONTROL VALVE ASSEMBLY - loader, Parker no. VDSP22DFDD5, w/magnetic detent, Includes: Ref. 12 - 23

1шт.

12

N7982

SPOOL

- three position, parts list figure 220, w/magnetic detent

2шт.

13

N6007

SPOOL - three position, with magnetic detent, parts list figure 222, w/magnetic detent

1шт.

14

N6592

VALVE

SPOOL - four position, parts list figure 224, w/magnetic detent

1шт.

15

W16129

VALVE PRESSURE RELIE

VALVE - main relief, parts list figure 216, w/magnetic detent

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - circuit relief and load check, parts list figure 226, w/magnetic detent

5шт.

17

NSS

NOT SOLD SEPARAT

VALVE - load check, parts list figure 228, w/magnetic detent

3шт.

18

9841223

PLUG,1-1/16" - 12 ORB

w/magnetic detent, Incl. Ref. 19 Hex Soc, 1 1/16"-12 ORB

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug, w/magnetic detent

1шт.

20

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

w/magnetic detent, Incl. Ref 21 Hex Soc, 1 5/16"-12 ORB

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug, w/magnetic detent

1шт.

22

71100209

PLUG,Hex Soc, 3/4"-16 ORB

w/Magnetic detent, Incl Ref 23 Hex Soc, 3/4"-16 ORB

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug, w/magnetic detent

1шт.
