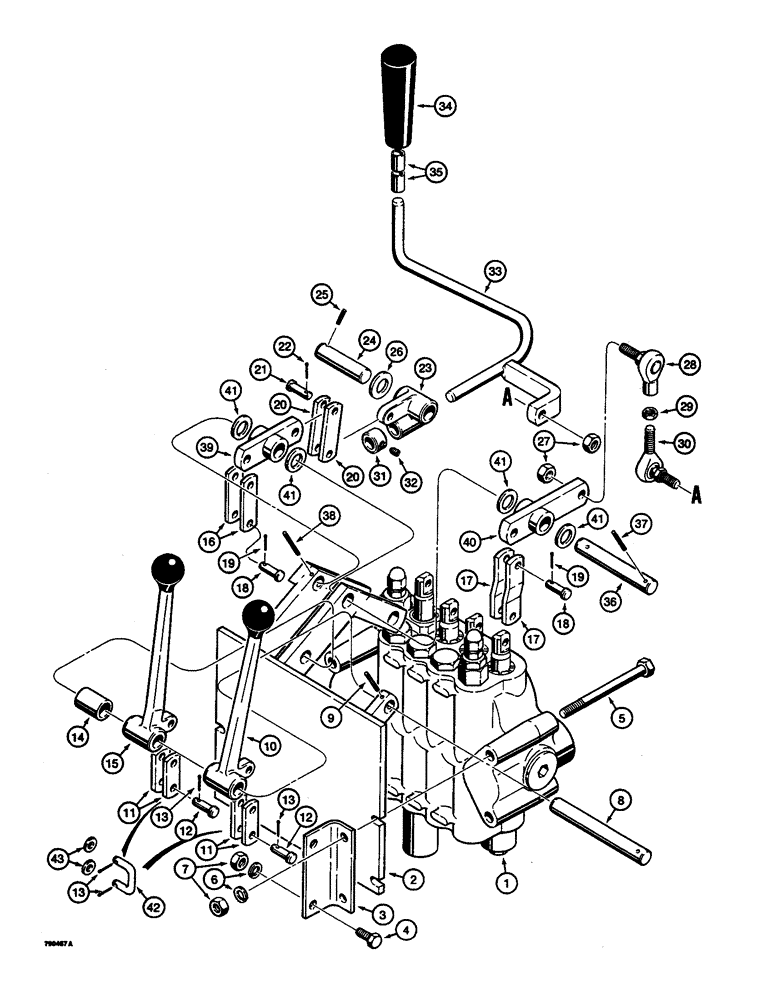

Запчасти Case 350B (204) - EQUIPMENT CONTROL VALVE AND LEVERS, THREE CONTROL LEVERS - FOUR SPOOL VALVE DOZER MODELS ONLY (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - four spool, dozer models, parts list figure 214

1шт.

2

R42398

BRACKET - mounting

1шт.

3

R42366

SUPPORT - mounting bracket

1шт.

4

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

5

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

4шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

8

D34898

SHAFT

- rear, control lever mounting

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

D33254

CONTROL LEVER - rear, outer

1шт.

11

D46077

LINK

- control lever to valve, rear, straight, no longer used, replace with refs. 42 and 43

4шт.

12

141-53

CLEVIS PIN,5/16" x .940"

plated, used with Ref 11 link only, if used 5/16" x .940"

4шт.

13

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), , Used with either straight or bent link 3/32" x 5/8"

4шт.

14

D46080

SPACER

- control lever shaft, rear

1шт.

15

R42369

CONTROL LEVER - rear, center

1шт.

16

D46075

DRAG LINK

LINK - control valve to lever, inner

2шт.

17

D46078

DRAG LINK

LINK - control valve to lever at ball joints

2шт.

18

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

19

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

4шт.

20

D43454

LINK

- at pivot lever

2шт.

21

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

22

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

2шт.

23

R43118

CRANK

LEVER - pivot

1шт.

24

D46074

AXLE PIN

PIN - pivot lever

1шт.

25

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

26

A26411

WASHER

- flat, spacer

1шт.

27

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF, replaces lock washer and regular hex nut used in production on some models

2шт.

28

R47940

BALL JOINT

- female

1шт.

29

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

30

R47941

JOINT TURNING

BALL JOINT - male

1шт.

31

D46079

COLLAR

- locking, control valve

1шт.

32

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC x 1/4", cup point

1шт.

33

D47804

LEVER

CONTROL LEVER - front

1шт.

34

D37550

KNOB

- control lever

1шт.

35

D38662

RING

BUSHING - knob

2шт.

36

D46073

AXLE PIN

SHAFT - mounting, linkage

1шт.

37

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

38

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

39

D46083

LEVER

- to pivot lever

1шт.

40

D46087

LEVER

- ball joints to control valve

1шт.

41

A26411

WASHER

- flat, spacer

4шт.

42

R49010

LINK

- control lever to valve, rear, bent

2шт.

43

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, used with Ref. 42 link

4шт.
