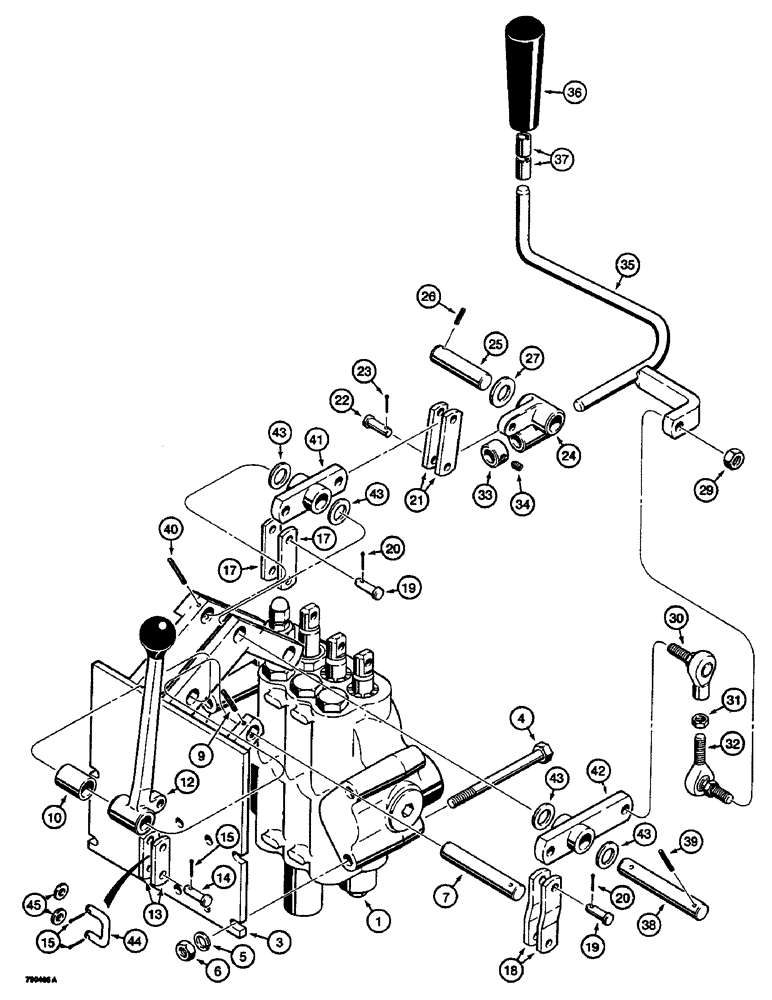

Запчасти Case 350B (202) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO CONTROL LEVERS - THREE SPOOL VALVE DOZER MODELS ONLY (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - three spool, dozer models, parts list figure 212

1шт.

3

D46098

BRACKET

- mounting

1шт.

4

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

7

NLS

NO LONGER SERVICED

SHAFT - rear, control lever mounting

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

D46080

SPACER

- control lever shaft

1шт.

12

R42369

CONTROL LEVER - rear

1шт.

13

D46077

LINK

- control lever to valve, straight, no longer used, replace with refs. 44 and 45

2шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated, used with Ref 13 link only, if used 5/16" x .940"

2шт.

15

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), , Used with either straight or bent link 3/32" x 5/8"

2шт.

17

D46075

DRAG LINK

LINK - to control valve, inner

2шт.

18

D46078

DRAG LINK

LINK - to control valve, center

2шт.

19

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

20

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

4шт.

21

D43454

LINK

- at pivot lever

2шт.

22

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

23

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

2шт.

24

R43118

CRANK

LEVER - pivot

1шт.

25

D46074

AXLE PIN

PIN - pivot lever

1шт.

26

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

27

A26411

WASHER

- flat, spacer

1шт.

29

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF, replaces lock washer and regular hex nut used in production on some models

2шт.

30

R47940

BALL JOINT

- female

1шт.

31

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

32

R47941

JOINT TURNING

BALL JOINT - male

1шт.

33

D46079

COLLAR

- locking, control lever

1шт.

34

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC x 1/4", cup point

1шт.

35

D47804

LEVER

CONTROL LEVER - front

1шт.

36

D37550

KNOB

- control lever

1шт.

37

D38662

RING

BUSHING - knob

2шт.

38

D46073

AXLE PIN

SHAFT - mounting, linkage

1шт.

39

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

40

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

41

D46083

LEVER

- to pivot lever

1шт.

42

D46087

LEVER

- ball joints to control valve

1шт.

43

A26411

WASHER

- flat, spacer

4шт.

44

R49010

LINK

- control lever to valve, port

1шт.

45

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, use with ref. 44 link

2шт.
