Запчасти Case 350B (194) - EQUIPMENT CONTROL VALVE AND LEVERS, TWO CONTROL LEVERS - THREE SPOOL VALVES LOADER MODELS ONLY (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

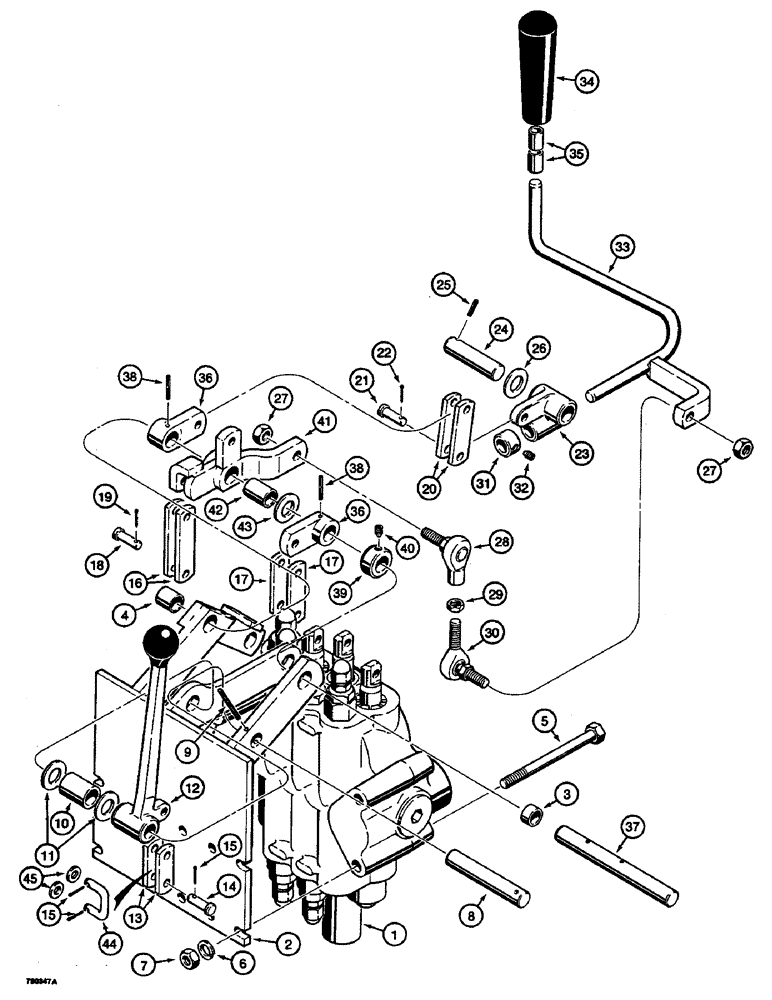

CONTROL VALVE - three spool, loader models, for correct assembly and component parts see figure 208

1шт.

2

R42423

BRACKET - mounting, Includes: Ref. 3 and 4

1шт.

3

A13683

BUSHING - outer, bracket

2шт.

4

L10818

BUSHING

- inner, bracket

2шт.

5

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

8

NLS

NO LONGER SERVICED

SHAFT - rear, control lever

1шт.

9

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

10

D46080

SPACER

- control lever shaft

1шт.

11

A25411

HOUSING

WASHER - flat, spacer

2шт.

12

R42369

CONTROL LEVER - rear

1шт.

13

D46077

LINK

- outer, control lever, straight, no longer used, replace with refs. 44 and 45

2шт.

14

141-53

CLEVIS PIN,5/16" x .940"

plated, used with Ref 13 link only, if used 5/16" x .940"

2шт.

15

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), , Used with either straight or bent link 3/32" x 5/8"

2шт.

16

D43453

LINK

- inner, bellcrank to control valve

2шт.

17

D46075

DRAG LINK

LINK - center, lever to control valve

2шт.

18

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

4шт.

19

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

4шт.

20

D43454

LINK

- at pivot lever

2шт.

21

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

2шт.

22

132-25

COTTER PIN,3/32" x 5/8"

PIN, Split (Cotter), 3/32" x 5/8"

2шт.

23

R43118

CRANK

LEVER - pivot

1шт.

24

D46074

AXLE PIN

PIN - pivot lever

1шт.

25

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

26

A26411

WASHER

- flat, spacer

1шт.

27

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF, replaces lock washer and regular hex nut used in production on some models

2шт.

28

R47940

BALL JOINT

- female

1шт.

29

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF

1шт.

30

R43592

END

BALL JOINT - male

1шт.

31

D46079

COLLAR

- locking, control lever

1шт.

32

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

- 1/4" - 20 NC x 1/4", cup point

1шт.

33

D47804

LEVER

CONTROL LEVER - front

1шт.

34

D37550

KNOB

- control lever

1шт.

35

D38662

RING

BUSHING - knob

2шт.

36

R42432

LINK ASSY.

LEVER - actuating, at mounting shaft

2шт.

37

R42436

SHAFT

- mounting, linkage

1шт.

38

138-2067

PIN,3/16" x 1", Coiled

2шт.

39

R42435

COLLAR

- locking, shaft, includes set screw, Includes: Ref. 40

1шт.

40

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

41

R42424

BELLCRANK - bucket control, Includes: Ref. 42

1шт.

42

R42425

BUSHING

- bellcrank

1шт.

43

A26411

WASHER

- flat, spacer, if used

1шт.

44

R49010

LINK

- outer, control lever, bent

1шт.

45

195-521

WASHER,5/16", SAE

- flat, 5/16", plated, use with ref. 44 link

2шт.
