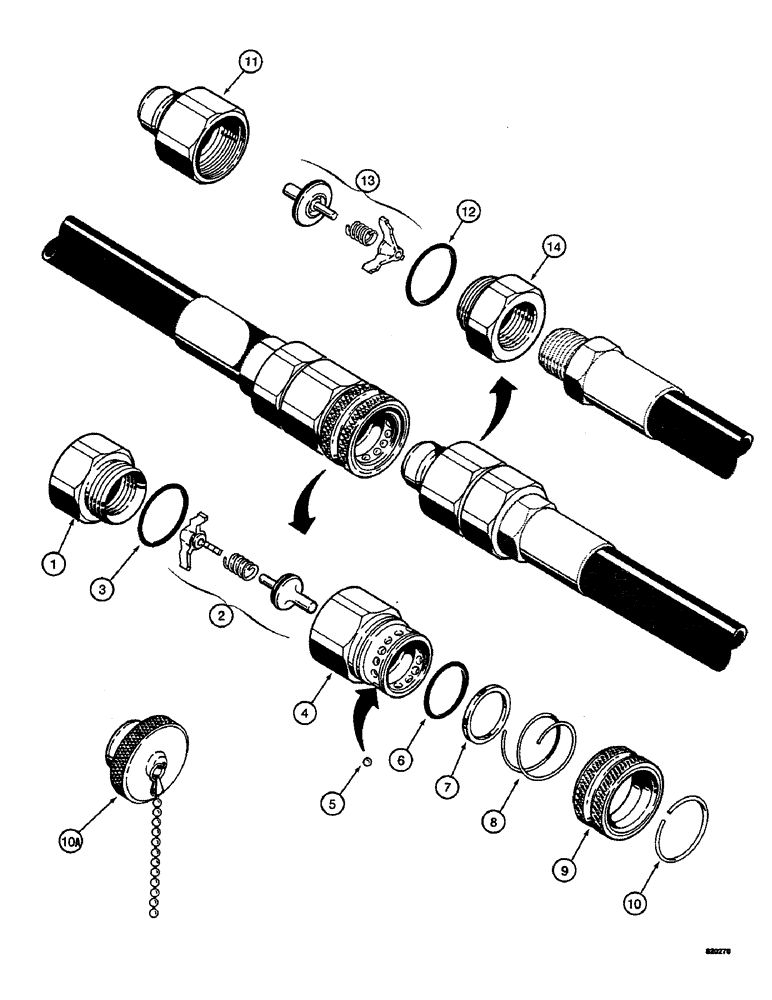

Запчасти Case 350B (190) - HYDRAULIC QUICK DISCONNECT COUPLINGS, USED ON MODELS WITH A BACKHOE (07) - HYDRAULIC SYSTEM

D52800

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - quick disconnect, female, D52800, Includes: Ref. 1 - 10

1шт.

1

D31975

FITTING

ADAPTER - coupling, D52800 female

1шт.

2

D53915

VALVE

ASSEMBLY - coupling, D52800 female

1шт.

3

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- coupling, D52800 female

1шт.

4

D53916

BODY

- coupling, D52800 female

1шт.

5

211-205

BALL

- 7/32", grade 25, chrome alloy steel, D52800 female coupling

10шт.

6

D53895

SEAL,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

O-RING - body, coupling, D52800 female

1шт.

7

D54276

RING

BACKUP RING - O-ring, D52800 female coupling

1шт.

8

D31979

VALVE SPRING

SPRING - sleeve, D52800 female coupling

1шт.

9

D31980

SLEEVE CYLINDER

SLEEVE - ball retaining, D52800 female coupling

1шт.

10

D31981

RING

RETAINING RING - spring, D52800 female coupling

1шт.

10a

D39924

PLUG

- dust, for female coupling, D52800

1шт.

D52694

QUICK MALE COUPLING

COUPLING ASSEMBLY - quick disconnect, male, D52694, Includes: Ref. 14

1шт.

11

D31971

BODY

- coupling, D52694 male

1шт.

12

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- body, coupling, D52694 male

1шт.

13

D53915

VALVE

ASSEMBLY - coupling, D52694 male

1шт.

14

D31975

FITTING

ADAPTER - coupling, D52694 male

1шт.
