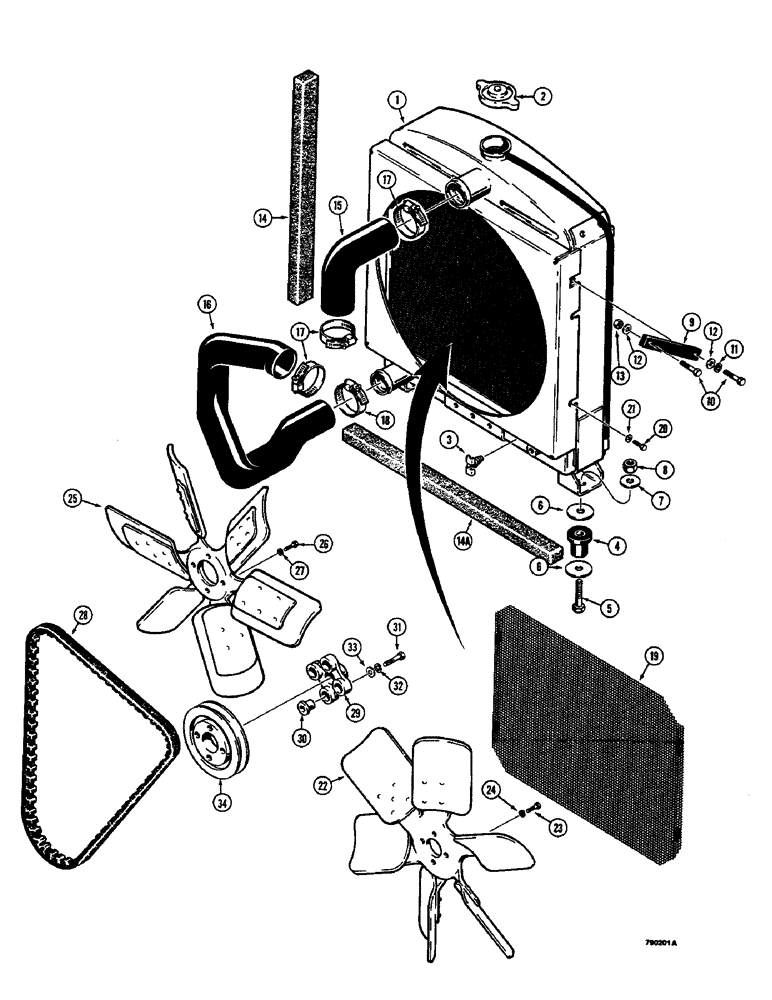

Запчасти Case 350B (010) - RADIATOR, FAN AND MOUNTING PARTS (01) - ENGINE

1

R42415

RADIATOR

- engine, Includes: Ref. 2

1шт.

2

D25826

CAP

- radiator, 7 PSI (48 kPa)

1шт.

3

217-92

COCK

VALVE - drain, 1/4" NPT

1шт.

4

CASL13142

BUSHING

INSULATOR - rubber

2шт.

5

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/4"

2шт.

6

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

- flat, 1/2", hardened, 1-7/8" OD

1шт.

7

D64050

WASHER

- flat, 1/2", hardened, 1-1/2" OD

2шт.

8

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

2шт.

9

R26330

STRAP

- radiator mounting

2шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, hardened, 3/8"

4шт.

13

131-652

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

14

R41785

BAFFLE

- radiator, side

2шт.

14a

R41783

LAMP

BAFFLE - radiator, bottom, see figure 278 for support plate

2шт.

15

R41429

RADIATOR HOSE,2.00" ID x 4.80", SAE 20R4 Class D-2, SAE 20R4 Class D-1

HOSE - radiator, upper

1шт.

16

R44297

RADIATOR HOSE,49.30 mm ID x 259.10 mm, SAE 20R4 Class D-2

HOSE - radiator, lower

1шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

adjustable #36, 1.81/2.75 Type F Worm

3шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable #28, 1.31/2.25 Type F Worm

1шт.

19

R43590

SCREEN

- antisandblast, if used, cannot be used with suction fan

1шт.

20

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Antisandblast screen, if used Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

21

195-21

WASHER,5/16"

- flat, , Antisandblast screen, if used 5/16"

4шт.

22

A173038

FAN

- suction, if used

1шт.

23

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex head, 5/16" - 18 NC x 3/4", grade 8

4шт.

24

92-5

LOCK WASHER,5/16"

4шт.

R50228

FAN

KIT - pusher fan, includes instruction sheet, if used, Includes: Ref. 25 - 27

1шт.

25

L100258

FAN

- pusher

1шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

27

92-5

LOCK WASHER,5/16"

4шт.

28

A11444

BELT,0.53" W x 50.50" L

Fan Drive 0.53" W x 50.50" L

1шт.

29

A51885

COUPLING, BREAK AWAY

COUPLING - flexible, Includes: Ref. 30

1шт.

30

A45216

BUSHING

- coupling

4шт.

31

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

32

92-7

LOCK WASHER,7/16"

4шт.

33

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

34

REF

INSTRUCTION

PULLEY - crankshaft, belt drive, see figure 36

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
