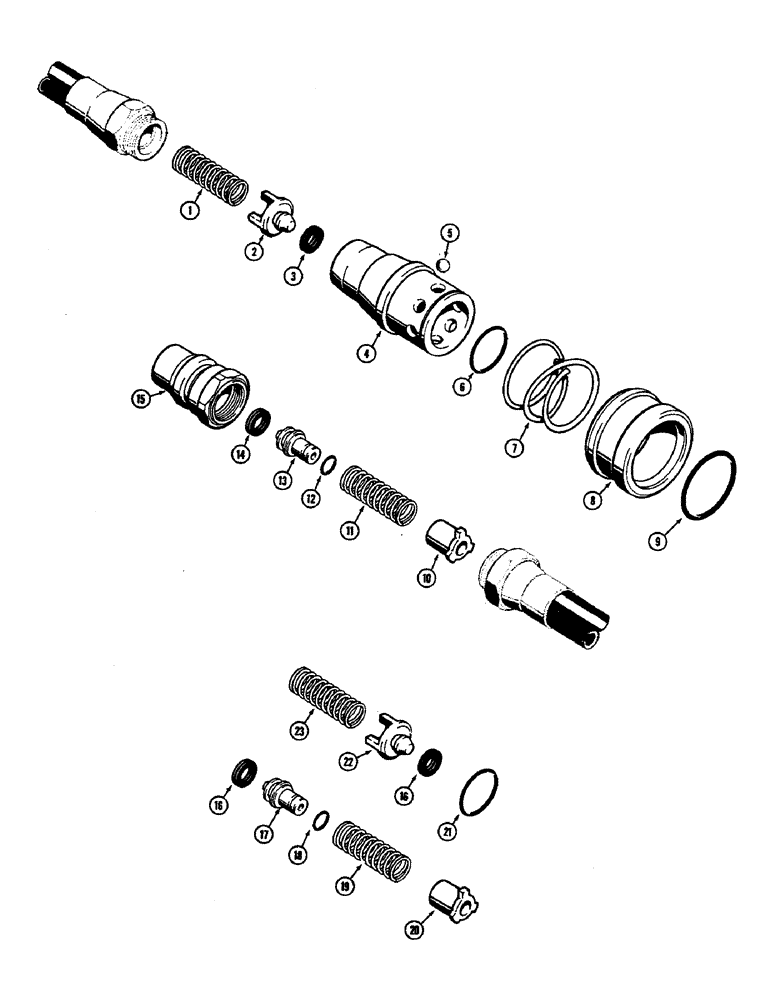

Запчасти Case 350B (188) - HYD. QUICK DISCONNECT COUPLINGS, USED ON MODELS W/ PULL BEHIND EQUIPMENT (07) - HYDRAULIC SYSTEM

A28542

COUPLING, QUICK, FEM

FEMALE COUPLING - quick disconnect, female, service kit parts listed below, A28542, Includes: Ref. 1 - 9

2шт.

1

A11324

SPRING

- piston, A28542 female coupling

1шт.

2

A26215

PISTON

- coupling, A28542 female

1шт.

3

A33964

SEAL

- piston, A28542 female coupling

1шт.

4

A27349

BODY

- female coupling, A28542

1шт.

5

211-7

BALL,1/4" Dia

- steel, A28542 female coupling 1/4" Dia

8шт.

6

S6576

O-RING,0.859" ID x 1.137" OD x 0.139"

- body, A28542 female coupling

1шт.

7

A27354

SPRING

- sleeve, A28542 female coupling

1шт.

8

A27353

SLEEVE

SLEEVE - ball retaining, A28542 female coupling

1шт.

9

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - retaining, A28542 female coupling

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, service kit parts listed below, A28541, Includes: Ref. 10 - 15

2шт.

10

51200858

SLEEVE

- piston, A28541 male coupling

1шт.

11

A27351

SPRING

- piston, A28541 male coupling

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston, A28541 male coupling

1шт.

13

A27508

PISTON

- coupling, A28541 male

1шт.

14

A33964

SEAL

- piston, A28541 male coupling

1шт.

15

A27356

PIPE FITTING

BODY - male coupling, A28541

1шт.

A40459

KIT

- service, for A28541 and A28542 couplings, service kit for quick disconnect, Includes: Ref. 16 - 23

1шт.

16

A33964

SEAL

- piston, service kit for quick disconnect couplings

2шт.

17

A27508

PISTON

- male coupling, service kit for quick disconnect

1шт.

18

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- male piston, service kit for quick disconnect couplings

1шт.

19

A27351

SPRING

- male piston, service kit for quick disconnect couplings

1шт.

20

51200858

SLEEVE

- male piston, service kit for quick disconnect couplings

1шт.

21

A34848

O-RING

- female body, service kit for quick disconnect couplings

1шт.

22

A26215

PISTON

- female coupling, service kit for quick disconnect

1шт.

23

A11324

SPRING

- female piston, service kit for quick disconnect couplings

1шт.
