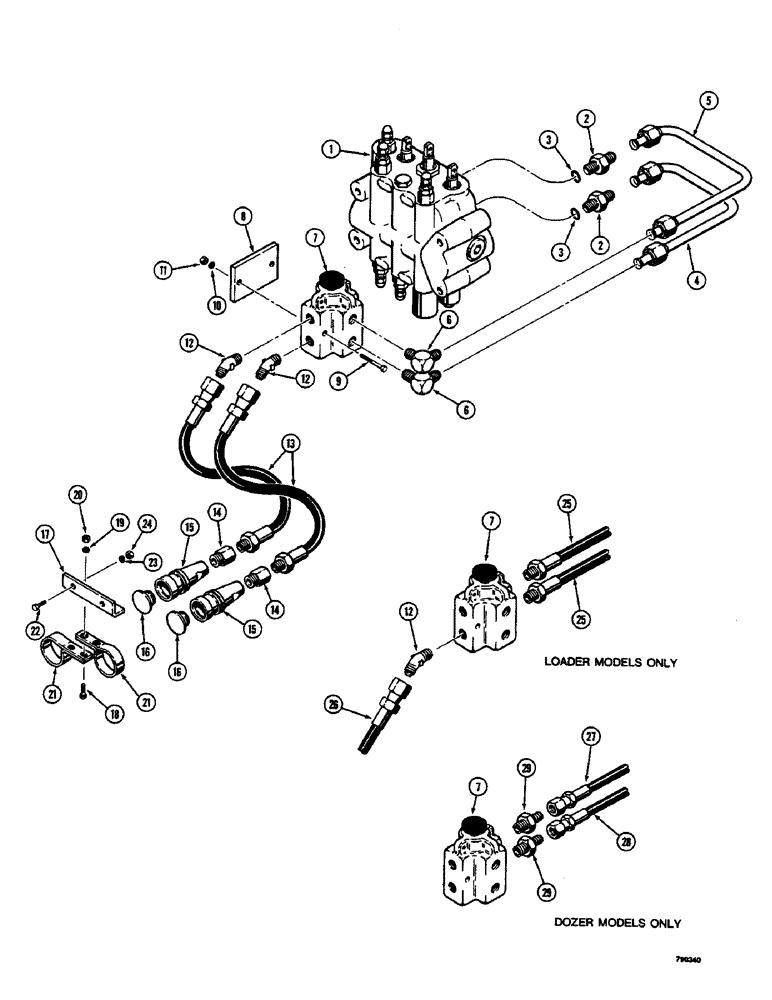

Запчасти Case 350B (182) - PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components, see figures 206-214

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D38149

TUBE

- lower

1шт.

5

D38151

TUBE

- upper

1шт.

6

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male

2шт.

7

D34424

VALVE

- diversion, parts list figure 186

1шт.

8

D34426

PLATE - mounting, diversion valve

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- 45 degree

2шт.

13

D28106

HOSE - 19-1/2" (495 mm) long

2шт.

14

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- special

2шт.

15

A28542

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list figure 188

2шт.

15a

A28541

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, parts list figure 188, not shown

2шт.

16

A65044

PLUG

- dust

2шт.

17

F42371

FLEETING PULLEY

BRACKET - coupling mounting

1шт.

18

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

A57662

CLAMP

- coupling

2шт.

22

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

25

D20193

HOSE - diversion valve to front equipment, 26" (660 mm) long, loader models only

2шт.

25

D20193

HOSE - diversion valve, 26" (660 mm) long, loader models only

2шт.

26

D39223

HOSE - diversion valve to outside pull behind, 13-3/4" (349 mm) long, loader models only

1шт.

27

D39220

HOSE ASSY.

HOSE - diversion valve to control valve, upper, 43" (1092 mm) long, dozer models only

1шт.

28

D39221

HOSE - diversion valve to control valve, lower, 47-1/2" (1206 mm) long, dozer models only

1шт.

29

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

ADAPTER - straight

2шт.
