Запчасти Case 350B (178) - THREE POINT HITCH HYDRAULIC CIRCUIT, WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

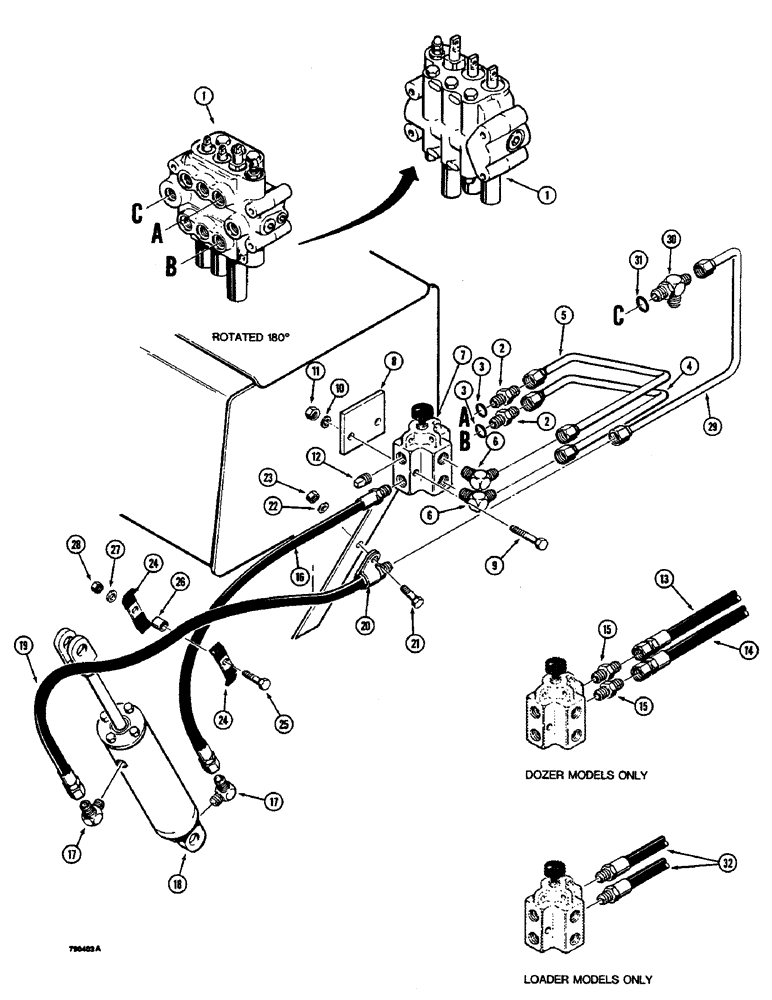

Схема запчастей Case 350B - (178) - THREE POINT HITCH HYDRAULIC CIRCUIT, WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 206-214

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D38151

TUBE

- lower

1шт.

5

D38149

TUBE

- upper

1шт.

6

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree

2шт.

7

D34424

VALVE

- diversion, parts list figure 186

1шт.

8

D34426

PLATE - mounting, diversion valve

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT

1шт.

13

D39220

HOSE ASSY.

HOSE - from diversion valve to front equipment, upper, 43" (1092 mm) long, dozer models only

1шт.

14

D39221

HOSE - from diversion valve to front equipment, lower, 47-1/2" (1026 mm) long, dozer models only

1шт.

15

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

ADAPTER - straight, use with ref. 13 and 14 hoses only

2шт.

16

D34462

HOSE

- diversion valve to cylinder, 43-3/4" (1105 mm) long

1шт.

17

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

2шт.

18

A11231

CYLINDER

- three point hitch, parts list figure 244

1шт.

19

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- return, 40" (1016 mm) long

1шт.

20

R11405

CLAMP

- return hose

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

22

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

24

D33316

CLAMP

- hoses

2шт.

25

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

26

D33829

BUSHING

SPACER - clamp

1шт.

27

195-21

WASHER,5/16"

- flat, 5/16"

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

29

D33934

TUBE - return

1шт.

30

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

- adjustable, Includes: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- tee

1шт.

32

D20193

HOSE - from diversion valve to front equipment, 26" (660 mm) long, loader models without clam bucket only

2шт.

Выбрано товаров: 32
