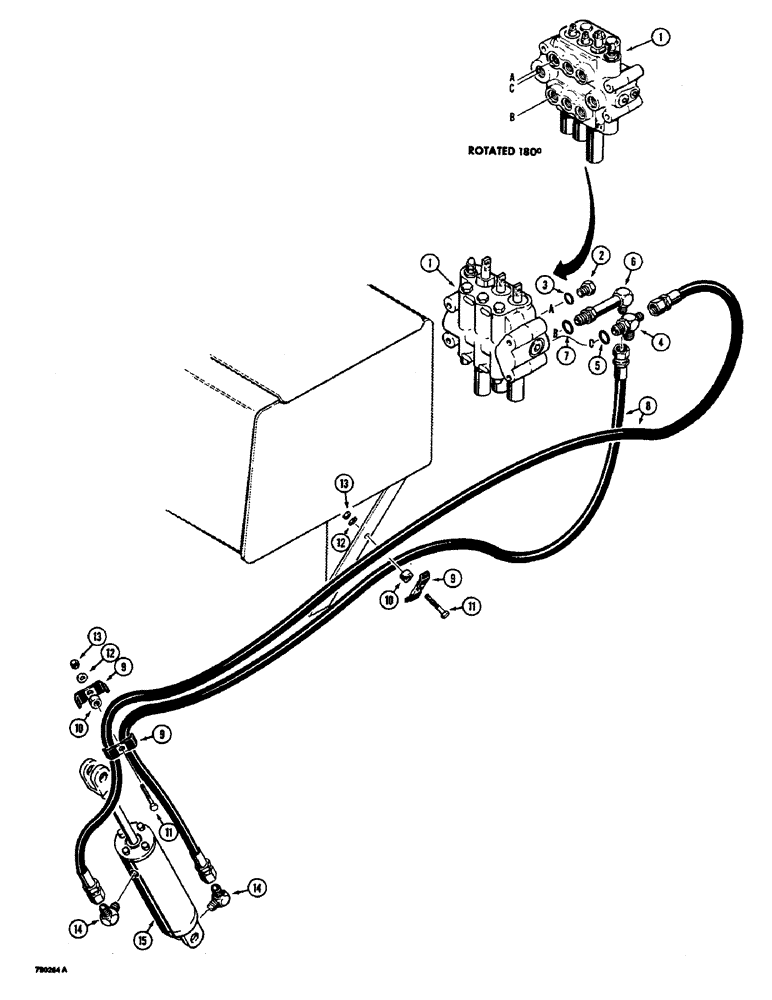

Запчасти Case 350B (176) - THREE POINT HITCH HYDRAULIC CIRCUIT, WITHOUT DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 208-214

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Top port of outer RH spool on 3 and 4 spool control valves, all ports except lower LH port on 2 spool control valves on drawbar models only, Incl. Ref. 3 Hex Hd, 7/8"-14 ORB

1-3шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

4

218-5247

TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 1 5/16"-12

- adjustable, return line to control valve return port, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

6

D23143

FITTING

ELBOW - 90 degree, lower port of outer (Right-hand) spool on 3 and 4 spool control valves, lower port of inner (Left-hand) spool on 2 spool control valves on drawbar models, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

8

R24291

HOSE ASSY.

HOSE - control valve to cylinder, both ends, 1/2" ID x 57" (1448 mm) long

2шт.

9

D33316

CLAMP

- hoses

3шт.

10

D33829

BUSHING

SPACER - clamp

2шт.

11

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

12

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

13

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

2шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

2шт.

15

A11231

CYLINDER

- three point hitch, parts list figure 244

1шт.
