Запчасти Case 350B (174) - RIPPER HYDRAULIC CIRCUIT, WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

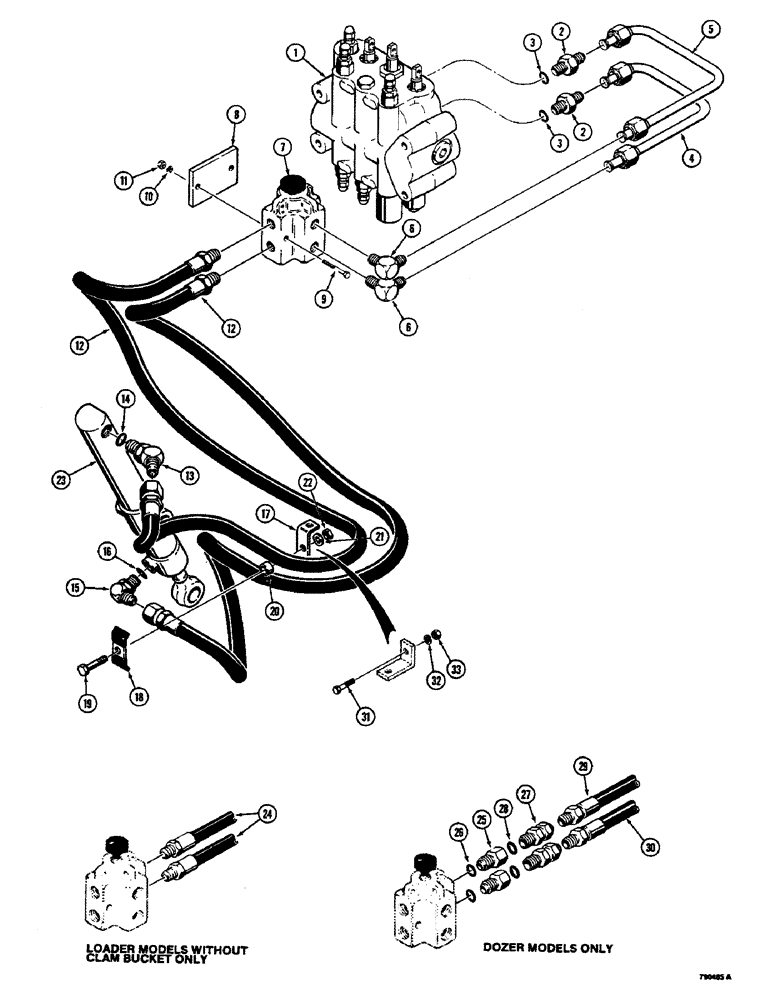

Схема запчастей Case 350B - (174) - RIPPER HYDRAULIC CIRCUIT, WITH DIVERSION VALVE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components, see figures 208, 210 and 214

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D38149

TUBE

- lower

1шт.

5

D38151

TUBE

- upper

1шт.

6

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- 90 degree

2шт.

7

D34424

VALVE

- diversion, parts list figure 186

1шт.

8

D34426

PLATE - mounting, diversion valve

1шт.

9

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

12

D34462

HOSE

- 43-1/2" (1105 mm) long

2шт.

13

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Male, Adjustable, Incl. Ref 14 45º, 7/8"-14 x 7/8"-14, O-Ring

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

15

R20839

FITTING

ELBOW - special, 90 degree, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

D34425

BRACKET - mounting, hose clamp

1шт.

18

D33316

CLAMP

- hose

1шт.

19

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

1шт.

20

D33829

BUSHING

SPACER - clamp

1шт.

21

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

23

G101241

CYLINDER ASSY.

CYLINDER - ripper, parts list figure 242

1шт.

24

D20193

HOSE - loader models without clam bucket, 26" (660 mm) long

2шт.

25

218-5040

ADAPTER

- straight, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

27

D37118

ADAPTER

- special, Includes: Ref. 28

2шт.

29

D46472

HOSE

- dozer models only, 124" (3150 mm) long

1шт.

30

D46471

TUBE ASSY.

HOSE - dozer models only, 124" (3150 mm) long

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

32

92-5

LOCK WASHER,5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.
