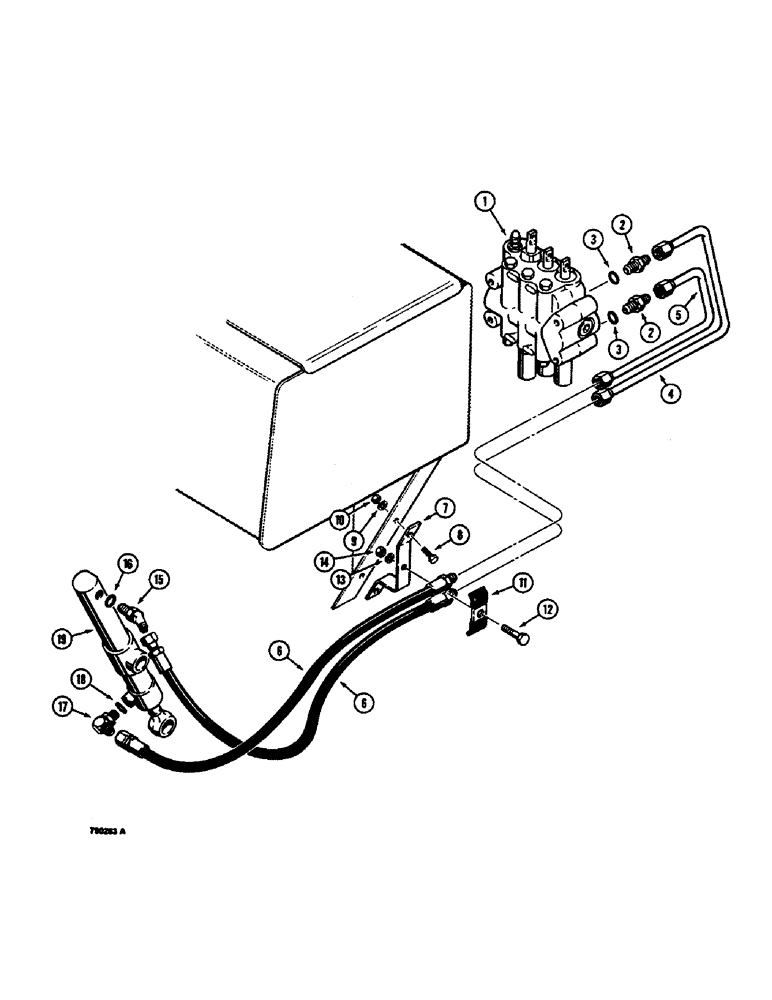

Запчасти Case 350B (172) - RIPPER HYDRAULIC CIRCUIT, WITHOUT DIVERSION VALVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 208, 210 and 214

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

D38145

TUBE - from upper control valve port

1шт.

5

D38147

TUBE - from lower control valve port

1шт.

6

D23030

HOSE

- to ripper cylinder, both ends

2шт.

7

D38331

BRACKET - mounting, hose clamp

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

11

D33316

CLAMP

- hoses

1шт.

12

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

15

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adjustable, Closed end of cylinder, Incl. Ref 16 45º, 7/8"-14 x 7/8"-14, O-Ring

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

R20839

FITTING

ELBOW - 90 degree, restrictive, rod end of cylinder, Includes: Ref. 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

19

G101241

CYLINDER ASSY.

CYLINDER - ripper, parts list figure 242

1шт.
