Запчасти Case 350B (170) - DOZER ANGLE AND TILT HYDRAULIC CIRCUIT, GRILLE TO BLADE (07) - HYDRAULIC SYSTEM

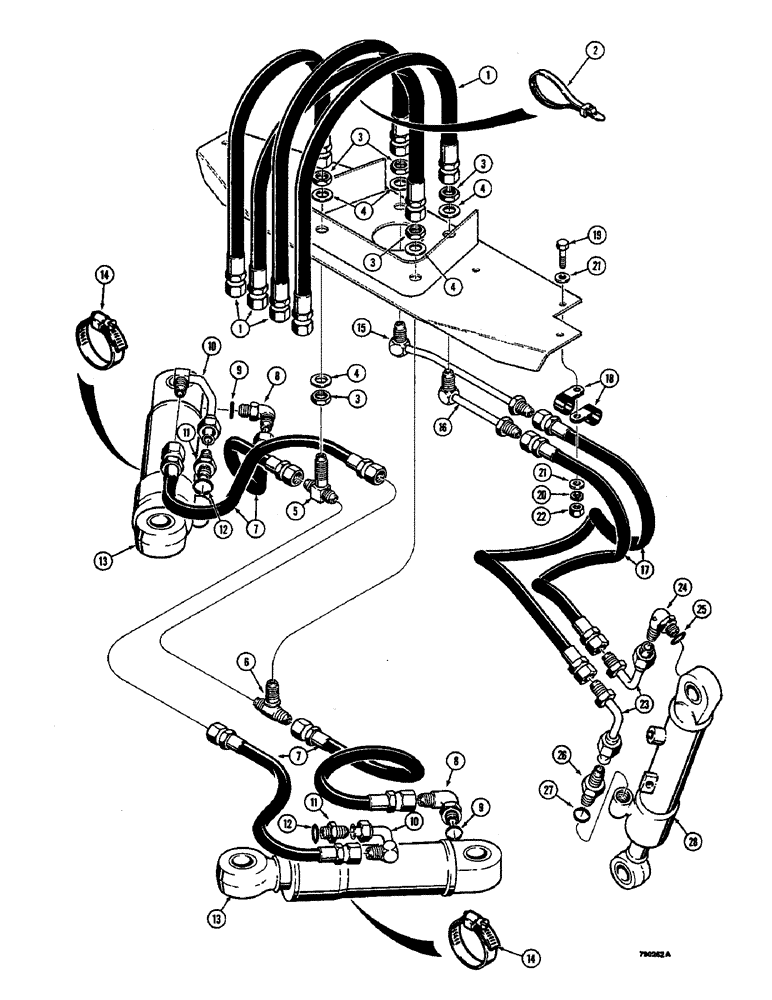

Схема запчастей Case 350B - (170) - DOZER ANGLE AND TILT HYDRAULIC CIRCUIT, GRILLE TO BLADE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R31442

HOSE

- grille to blade, 1/2" ID x 46" (1168 mm) long

4шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

5шт.

4

D35268

SHIM,1/32" Thk

Washer, Bulkhead fitting 1/32" Thk

5шт.

5

R28969

FITTING

TEE - bulkhead, left-hand

1шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, right-hand

1шт.

7

R30835

HOSE ASSY.

HOSE - to angle cylinders, 3/8" ID x 19" (483 mm) long

4шт.

8

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, closed end of angle cylinder, Includes: Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

10

D28205

PIPE

TUBE - to angle cylinders, rod end

2шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, male, straight, Incl. Ref 12 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

13

G101250

CYLINDER

- angle, parts list figure 238

2шт.

14

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - adjustable, hose

2шт.

15

R41542

TUBE ASSY.

TUBE - to tilt cylinder, long, front

1шт.

16

R41538

TUBE ASSY.,0.5" OD x 6.75" L

TUBE - to tilt cylinder, short, rear

1шт.

17

R30835

HOSE ASSY.

HOSE - to tilt cylinder, 3/8" ID x 19" (483 mm) long

2шт.

18

49855

CLAMP

- P-type, tilt cylinder hoses

2шт.

19

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

23

NLS

NO LONGER SERVICED

TUBE - to tilt cylinder, both ends

2шт.

24

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

26

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, male, straight, Incl. Ref 27 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

28

G101247

JACK BODY

CYLINDER - tilt, parts list figure 240

1шт.

Выбрано товаров: 28
