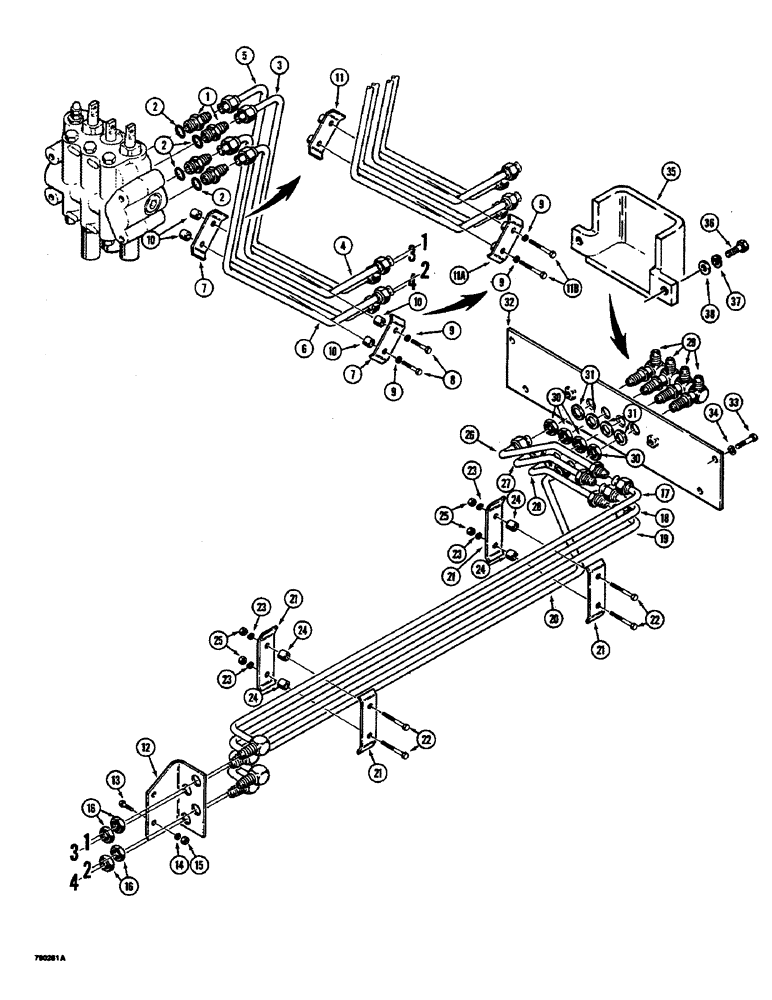

Запчасти Case 350B (168) - DOZER ANGLE AND TILT HYDRAULIC CIRCUIT, CONTROL VALVE TO GRILLE (07) - HYDRAULIC SYSTEM

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 212 and 214

1шт.

1

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 2 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

3

R41855

TUBE - angle, upper control valve port

1шт.

4

R41865

TUBE - angle, lower control valve port

1шт.

5

R41841

TUBE ASSY.

TUBE - tilt, upper control valve port

1шт.

6

R41849

TUBE - tilt, lower control valve port

1шт.

7

R41984

CLAMP - without welded spacer, no longer used, replace with refs. 11, 11A and 11B

2шт.

8

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Used with ref. 7 clamp, if used Hex, 3/8"-16 x 1 3/4", G5

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

R29842

SPACER,3/8" Pipe x .469"

- clamp, used with ref. 7 clamp only, if used

4шт.

11

R44167

CLAMP - inner, with spacer welded on

1шт.

11a

R44168

CLAMP - outer, with spacer welded on

1шт.

11b

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Used with clamps 11 and 11A Hex, 3/8"-16 x 2", G5

2шт.

12

R42255

BRACKET - tube mounting

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

17

R41847

TUBE,0.5" OD x 41.7, 4.82" L

- angle, upper

1шт.

18

R41853

TUBE,0.5" OD x 41.7, 5.1" L

- angle, lower

1шт.

19

R41847

TUBE,0.5" OD x 41.7, 4.82" L

- tilt, upper

1шт.

20

R41839

TUBE,0.5" OD x 44.3, 9.82" L

- tilt, lower, to grille

1шт.

21

R41984

CLAMP - tubes

4шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

C18330

SPACER

- clamp

4шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

26

R41861

TUBE,0.5" OD

- angle, upper, at grille

1шт.

27

R41851

TUBE,0.5" OD

- angle, lower, at grille

1шт.

28

R41845

TUBE,0.5" OD

- tilt, upper, at grille

1шт.

29

R29758

FITTING

ELBOW - 90 degree, bulkhead

4шт.

30

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

4шт.

31

D35268

SHIM,1/32" Thk

Washer, Special, Bulkhead fitting 1/32" Thk

4шт.

32

R42364

PLATE - tube mounting

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

34

92-8

LOCK WASHER,1/2"

4шт.

35

R34008

GUARD

- bulkhead fittings

1шт.

36

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

37

92-8

LOCK WASHER,1/2"

2шт.

38

195-33

WASHER,1/2"

- flat, 1/2"

2шт.
