Запчасти Case 350B (164) - CLAM BUCKET HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

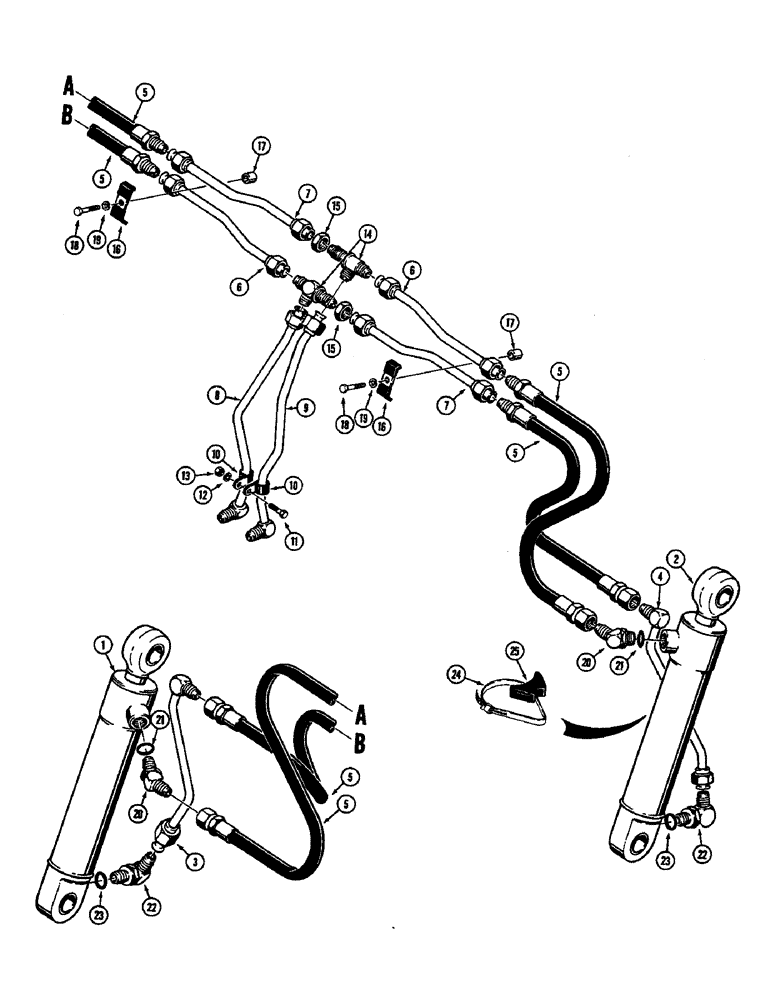

Схема запчастей Case 350B - (164) - CLAM BUCKET HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

G101191

CYLINDER ASSY.

CYLINDER - clam, left-hand, parts list figure 234

1шт.

2

G101190

CYLINDER ASSY.

CYLINDER - clam, right-hand, parts list figure 234

1шт.

2

87454017R

REMAN-HYD CYLINDER

CYLINDER - clam, right-hand, parts list figure 234

1шт.

2

87454017C

CORE-HYD CYLINDER

Return Number

1шт.

3

D51619

TUBE

- to closed end of left-hand cylinder

1шт.

4

D51621

TUBE

- to closed end of right-hand cylinder

1шт.

5

D27984

HOSE,12.7mm ID x 660.4mm L, SAE 100R2

- right-hand and left-hand cylinders, 26" (660 mm) long

4шт.

6

D51733

TUBE

- horizontal, right-hand upper and left-hand lower

2шт.

7

D51731

TUBE

- horizontal, right-hand lower and left-hand upper

2шт.

8

D51615

TUBE

- vertical, left-hand

1шт.

9

D51617

TUBE

- vertical, right-hand

1шт.

10

38188

CLAMP

- vertical tubes

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead, connecting horizontal and vertical tubing

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

- horizontal tubing

2шт.

17

D76209

SPACER

- tube clamp

2шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-12"

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Clam cylinders, Rod end, Incl. Ref 21 45º, 7/8"-14 x 7/8"-14, O-Ring

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, clam cylinders, closed end, Incl. Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adjustable, tube to cylinder

2шт.

25

D38648

BLOCK

INSULATOR - rubber, tube

2шт.

Выбрано товаров: 27
