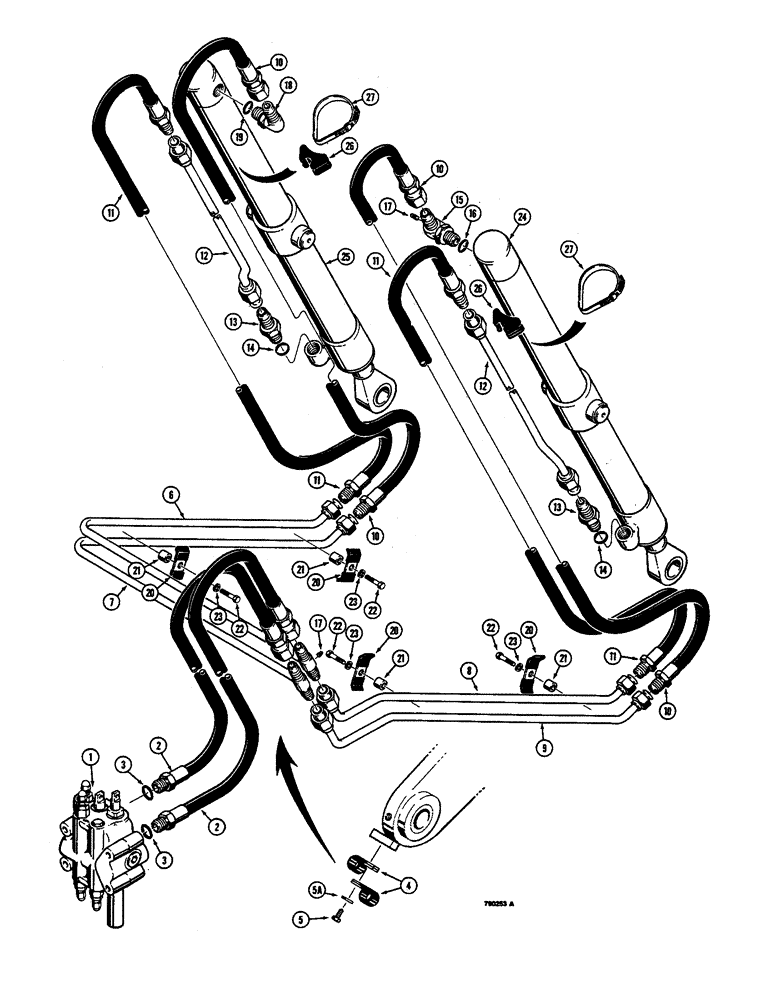

Запчасти Case 350B (160) - LOADER BUCKET TILT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components, see figures 206-210

1шт.

2

D37343

HOSE

- from control valve, 43" (1092 mm) long, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - hose

1шт.

4

R14668

CLAMP

- hoses to loader lift frame

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

5a

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

6

R41576

TUBE ASSY.

TUBE - upper, crossover to left-hand side of loader frame

1шт.

7

R41578

TUBE ASSY.

TUBE - lower, crossover to left-hand side of loader frame

1шт.

8

R41572

TUBE

- upper, right-hand side of loader frame

1шт.

9

R41574

TUBE

- lower, right-hand side of loader frame

1шт.

109

D24571

HOSE

- to bucket tilt cylinder, closed end, 30-3/4" (781 mm) long

2шт.

11

D32288

HOSE ASSY.

HOSE - to bucket tilt cylinder, rod end, 36" (914 mm) long

2шт.

12

D33328

TUBE ASSY.

TUBE - to bucket tilt cylinder, rod end

2шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, bucket tilt cylinder, rod end, Includes: Ref. 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

15

R19576

FITTING

ELBOW - 90 degree, special, closed end, right-hand cylinder, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

17

221-1849

PLUG

- hex socket head, 1/8" NPT

2шт.

18

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, closed end, left-hand cylinder, Incl. Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

20

R17319

CLAMP

- tubes to loader frame

4шт.

21

D76209

SPACER

- clamp

4шт.

22

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

4шт.

23

92-5

LOCK WASHER,5/16"

4шт.

24

G101248

CYLINDER ASSY.

CYLINDER - bucket tilt, right-hand, parts list figure 232

1шт.

25

G101249

CYLINDER BLOCK

CYLINDER - bucket tilt, left-hand, parts list figure 232

1шт.

26

D38648

BLOCK

INSULATOR - rubber, cylinder tube

2шт.

27

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube, adjustable

2шт.
