Запчасти Case 350B (158) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

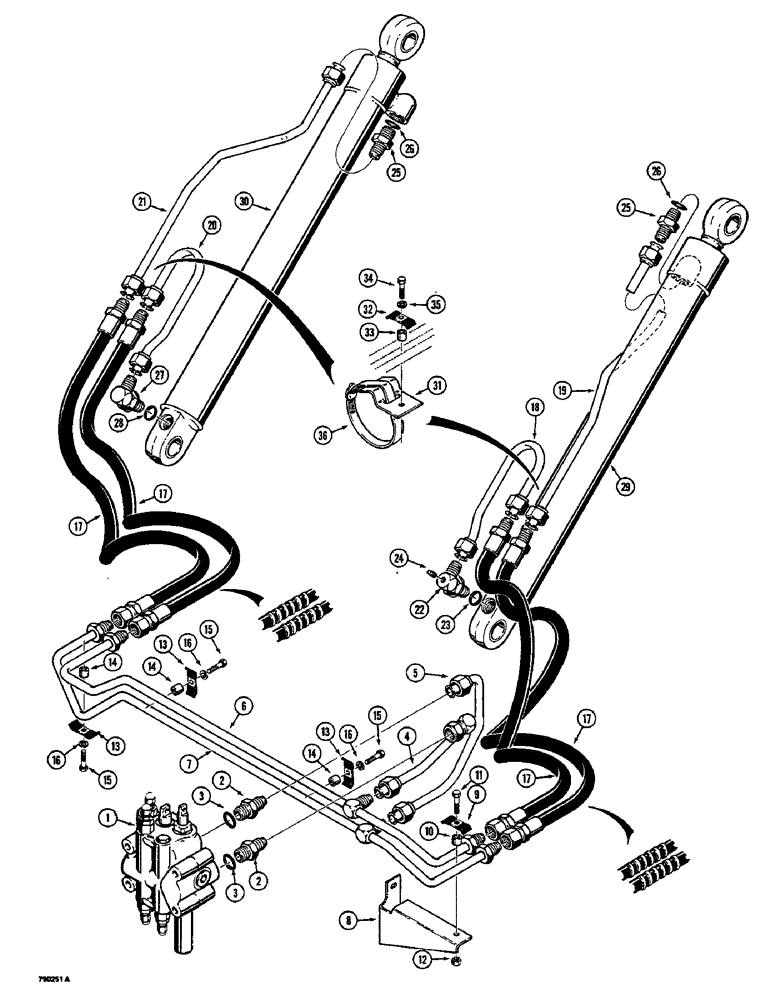

Схема запчастей Case 350B - (158) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - for correct assembly and components see figures 206-210

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

4

R46128

TUBE - lower control valve port, to upper crossover tube

1шт.

5

R42846

TUBE - upper control valve port, to lower crossover tube

1шт.

6

R41588

TUBE

- crossover, upper

1шт.

7

R41591

TUBE - crossover, lower

1шт.

8

R41753

BRACKET - support, right hand side tubes

1шт.

9

R17319

CLAMP

- crossover tubes, right-hand side

1шт.

10

D76209

SPACER

- clamp

1шт.

11

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

1шт.

12

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

1шт.

13

R17319

CLAMP

- crossover tubes

3шт.

14

D76209

SPACER

- clamp

3шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

3шт.

16

92-5

LOCK WASHER,5/16"

3шт.

17

R41715

HOSE

- to lift cylinder, 19" (483 mm) long

4шт.

18

R41584

TUBE - lift cylinder, right-hand side, closed end

1шт.

19

R41580

TUBE - lift cylinder, right-hand side, rod end

1шт.

20

R41586

TUBE - lift cylinder, left-hand side, closed end

1шт.

21

R41582

TUBE - lift cylinder, left-hand side, rod end

1шт.

22

R19576

FITTING

ELBOW - 90 degree, special, right-hand lift cylinder, closed end, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

221-1849

PLUG

- hex socket head, 1/8" NPT

1шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, rod end, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- adapter

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degree, left-hand lift cylinder, closed end, Incl. Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

29

G101242

CYLINDER

- lift, right-hand, parts list figure 230

1шт.

30

G101243

CYLINDER

- lift, left-hand, parts list figure 230

1шт.

31

R43212

BRACKET - support, tubes, lift cylinders

2шт.

32

R17319

CLAMP

- tubes, lift cylinders

2шт.

33

D76209

SPACER

- clamp

2шт.

34

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - tube, adjustable

2шт.

Выбрано товаров: 36
