Запчасти Case 350B (156) - EQUIPMENT OIL FILTER (07) - HYDRAULIC SYSTEM

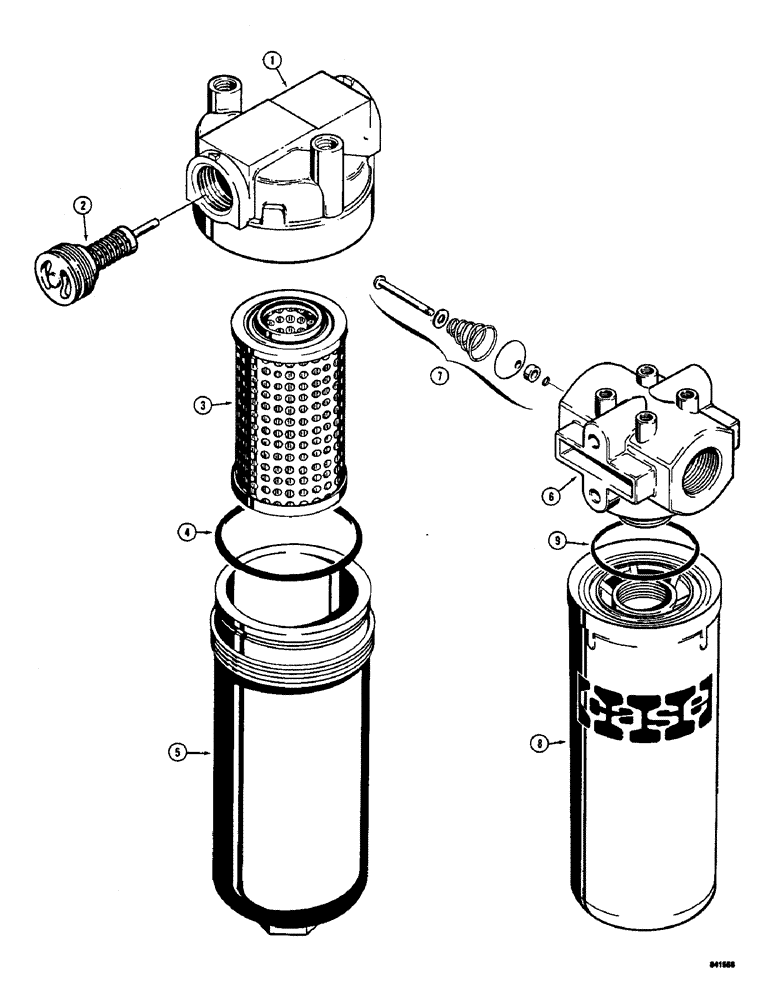

Схема запчастей Case 350B - (156) - EQUIPMENT OIL FILTER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

D43567

FILTER ASSY

ASSEMBLY - hydraulic oil, Marvel, if used, D43567, Includes: Ref. 1 - 5

1шт.

1

D61903

HEAD

- filter, D43567 marvel oil, Includes: Ref. 2

1шт.

2

D58199

VALVE

BYPASS VALVE - filter, D43567 marvel oil

1шт.

D43800

FILTER, ELEMENT

KIT - filter, D43567 marvel oil, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43567 marvel oil

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- filter head, D43567 marvel oil

1шт.

5

D61948

HOUSING

- filter, D43567 marvel oil

1шт.

R50518

FILTER

ASSEMBLY - hydraulic oil, Donaldson, if used, R50518 oil filter, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter, R50518 donaldson oil

1шт.

7

NSS

NOT SOLD SEPARAT

BYPASS VALVE - filter, R50518 donaldson oil

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT ASSEMBLY - filter, R50518 donaldson oil, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter, R50518 donaldson oil

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- element to head, R50518 donaldson oil filter

1шт.

Выбрано товаров: 13
