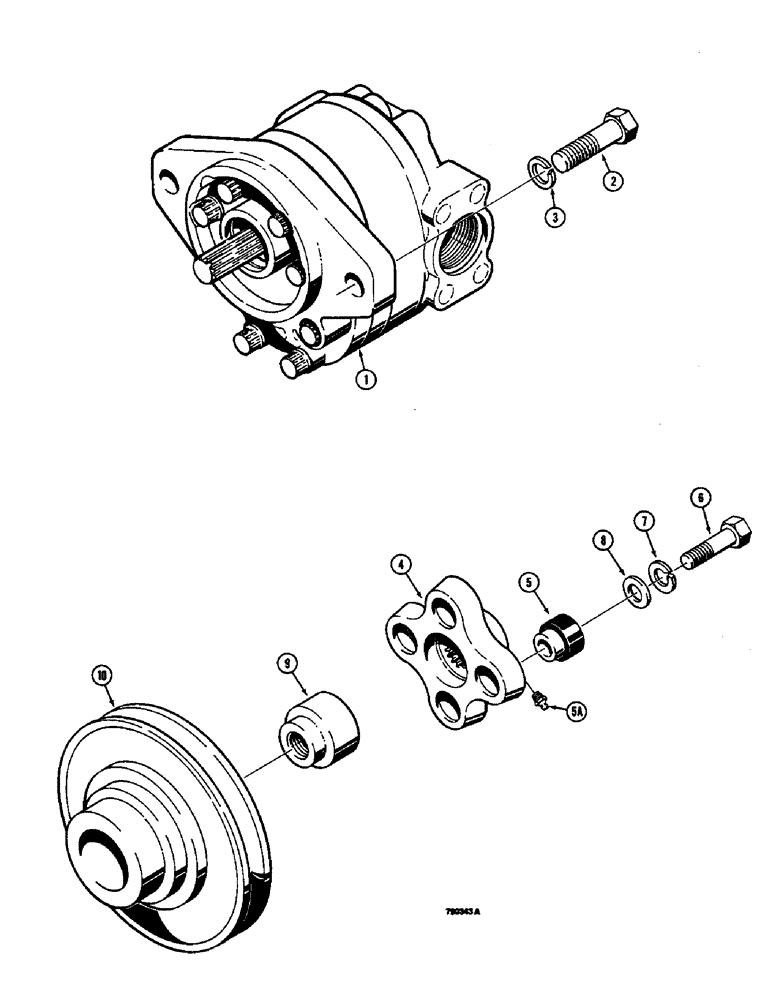

Запчасти Case 350B (154) - HYDRAULIC EQUIPMENT PUMP DRIVE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

PUMP - equipment, for correct pump and component parts see figure 150 or 152

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

92-8

LOCK WASHER,1/2"

2шт.

4

D90883

SPLINED COUPLING

COUPLING ASSEMBLY - flexible, pump drive, Includes: Ref. 5 and 5A

1шт.

5

A45216

BUSHING

- coupling

4шт.

5a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

1шт.

6

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

7

92-7

LOCK WASHER,7/16"

4шт.

8

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- flat, special

4шт.

9

REF

INSTRUCTION

NUT - crankshaft pulley, see figure 36

1шт.

10

REF

INSTRUCTION

PULLEY - crankshaft, see figure 36

1шт.
