Запчасти Case 350B (152) - R43429 EQUIPMENT HYDRAULIC PUMP, LOADER MODELS AND ALL MODELS W/ A BACKHOE (07) - HYDRAULIC SYSTEM

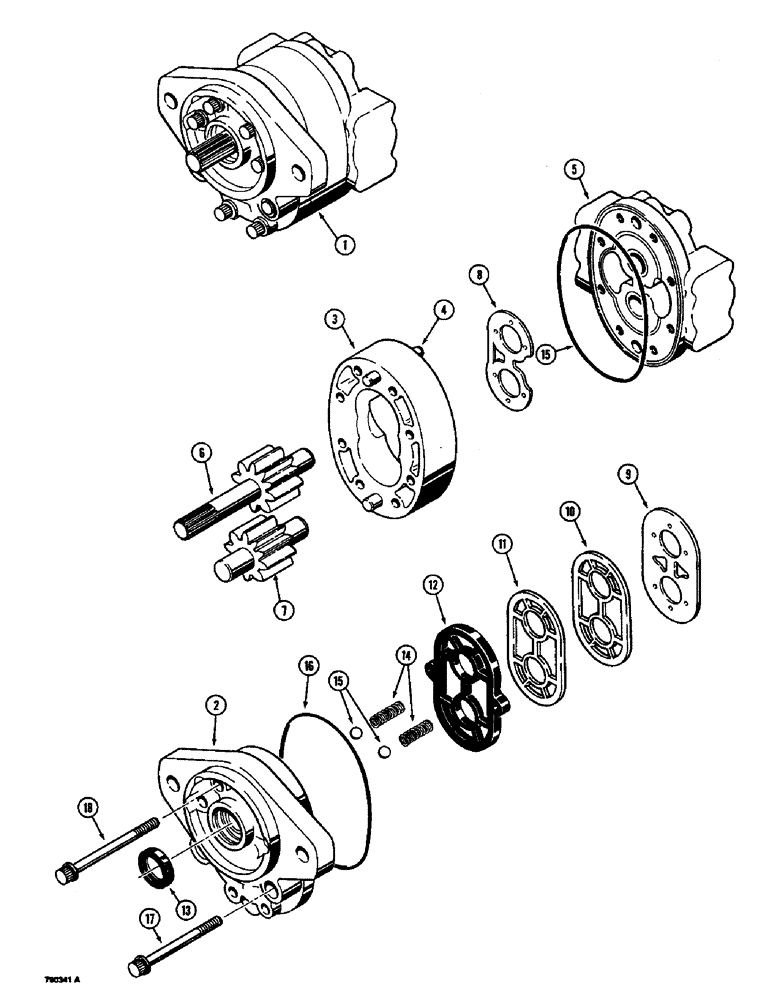

Схема запчастей Case 350B - (152) - R43429 EQUIPMENT HYDRAULIC PUMP, LOADER MODELS AND ALL MODELS W/ A BACKHOE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R43429

PUMP

ASSEMBLY - equipment, new, Cessna no. 24503-LAY, Includes: Ref. 2 - 18

1шт.

1

RR43429

REMAN-HYD PUMP

PUMP ASSEMBLY - equipment, remanufactured, componenets parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

RC43429

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

87644730R

REMAN-HYD PUMP

350B CASE CRAWLER TRACTOR, PUMP ASSEMBLY - equipment, new, Cessna no. 24503-LAY, Reman for New PN R43429

1шт.

1

87644730C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

D48879

COVER

- drive shaft end

1шт.

N6022

HOUSING

KIT - body, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - pump center

1шт.

4

A43667

DOWEL

- body

2шт.

5

D48883

COVER

- port end

1шт.

6

N6021

PINION

GEAR AND SHAFT ASSEMBLY - drive

1шт.

7

N6020

PINION

GEAR AND SHAFT ASSEMBLY - idler

1шт.

D59656

GASKET KIT

KIT - seal, Includes: Ref. 8 - 16

1шт.

8

A45358

PLATE

- thrust

1шт.

9

H335331

DIAPHRAGM

- pump

1шт.

10

H260935

GASKET

- protector

1шт.

11

H260927

GASKET

- backup

1шт.

12

H273912

SEAL

- diaphragm

1шт.

13

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

14

D31403

SPRING

- ball retaining

2шт.

15

211-312

BALL,13/32" Dia

- steel, meter 13/32" Dia

2шт.

16

H756221

O-RING,4.987" ID x 5.193" OD

- pump

2шт.

17

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3"

4шт.

18

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3-1/4"

4шт.

Выбрано товаров: 24
