Запчасти Case 350B (150) - R24624 EQUIPMENT HYDRAULIC PUMP, DOZER AND DRAWBAR MODELS (07) - HYDRAULIC SYSTEM

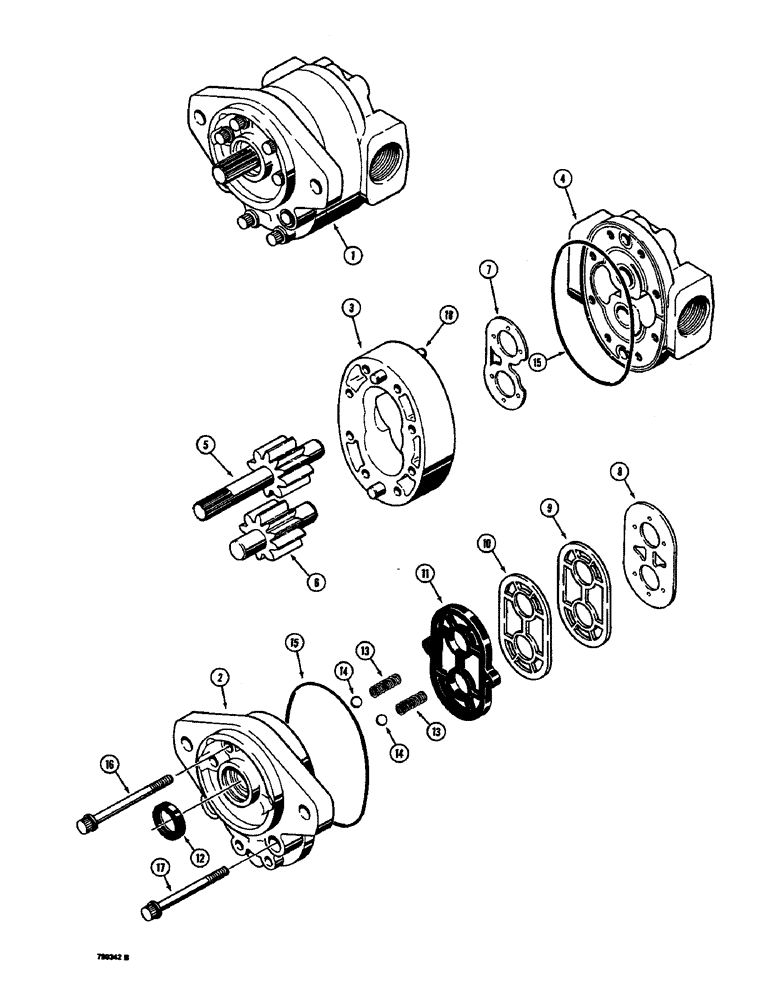

Схема запчастей Case 350B - (150) - R24624 EQUIPMENT HYDRAULIC PUMP, DOZER AND DRAWBAR MODELS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R24624

PUMP

ASSEMBLY - equipment, new, Cessna no. 24502-LAN, Includes: Ref. 2 - 18

1шт.

1

RR24624

REMAN-HYD PUMP

PUMP ASSEMBLY - equipment, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 18

1шт.

1

RC24624

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 18

1шт.

2

D48879

COVER

- drive shaft end

1шт.

3

R25508

BODY

- center

1шт.

4

D48883

COVER

- port end

1шт.

5

R25513

GEAR

AND SHAFT ASSEMBLY - drive

1шт.

6

R25514

GEAR WHEEL

GEAR AND SHAFT ASSEMBLY - idler

1шт.

N6407

KIT

- seal, includes a small O-ring not need in this pump, Includes: Ref. 7 - 15

1шт.

7

A45358

PLATE

- thrust

1шт.

8

H335331

DIAPHRAGM

- pump

1шт.

9

H260935

GASKET

- protector

1шт.

10

D39319

GASKET

- backup

1шт.

11

D48888

SEAL

- diaphragm

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- drive shaft

1шт.

13

D31403

SPRING

- ball retaining

2шт.

14

211-312

BALL,13/32" Dia

- steel, meter 13/32" Dia

2шт.

15

D48887

O-RING

- cover

2шт.

16

166-53

SCREW,Flg, 3/8" - 16 x 3", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 3"

4шт.

17

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

BOLT - Ferry head, 3/8" - 16 NC x 2-3/4"

4шт.

18

A40785

AXLE PIN,12.7mm OD x 63.5mm L

DOWEL - body

2шт.

Выбрано товаров: 21
