Запчасти Case 350B (148) - EQUIPMENT HYD CIRCUIT, CONTROL VALVE TO RESERVOIR, MODEL W/ DONALDSON FILTER-TRAC.SN 3073926 & AFTER (07) - HYDRAULIC SYSTEM

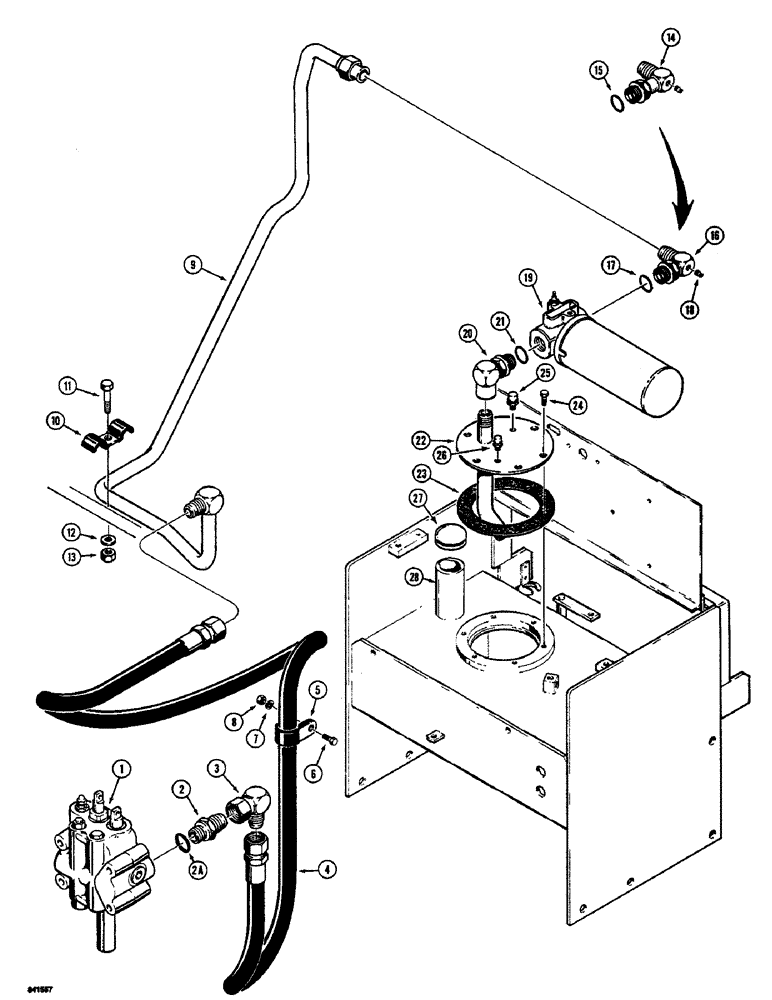

Схема запчастей Case 350B - (148) - EQUIPMENT HYD CIRCUIT, CONTROL VALVE TO RESERVOIR, MODEL W/ DONALDSON FILTER-TRAC.SN 3073926 & AFTER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CONTROL VALVE - equipment, for correct assembly and components see figures 206 - 214

1шт.

2

D28890

CONNECTOR, ELEC

CONNECTOR - straight, Includes: Ref. 2A

1шт.

2a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, adjustable

1шт.

4

R46137

HOSE ASSY.

HOSE - return, 3/4" ID x 30" (762 mm) long

1шт.

5

D40471

CLAMP

- hose

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

9

R48513

TUBE

, Serial Range: --filter

1шт.

10

D42833

CLAMP

- tube

1шт.

11

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

12

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

13

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

14

R46111

ELBOW - 90 degree, long, no longer used replace with ref. 16 elbow, Includes: Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

16

R36477

ELBOW

- 90 degree, Includes: Ref. 17

1шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

19

REF

INSTRUCTION

FILTER - oil, Donaldson, with one-piece spin-on element, parts list figure 156

1шт.

20

218-5458

ELBOW

- 90 degree, adjustable, Includes: Ref. 21

1шт.

21

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

22

R41768

COVER - hydraulic reservoir

1шт.

23

D50547

GASKET,1.52mm Thk

- hydraulic reservoir

1шт.

24

L107828

BOLT

- hex, self-locking and sealing, 3/8" - 16 NC x 7/8", plated

6шт.

25

R15538

VALVE

- air inlet

1шт.

26

R15536

VALVE

RELIEF VALVE - hydraulic reservoir

1шт.

27

R44356

CAP

- filler, hydraulic reservoir

1шт.

28

R44357

TUBE - filler neck, weld on

1шт.

Выбрано товаров: 29
