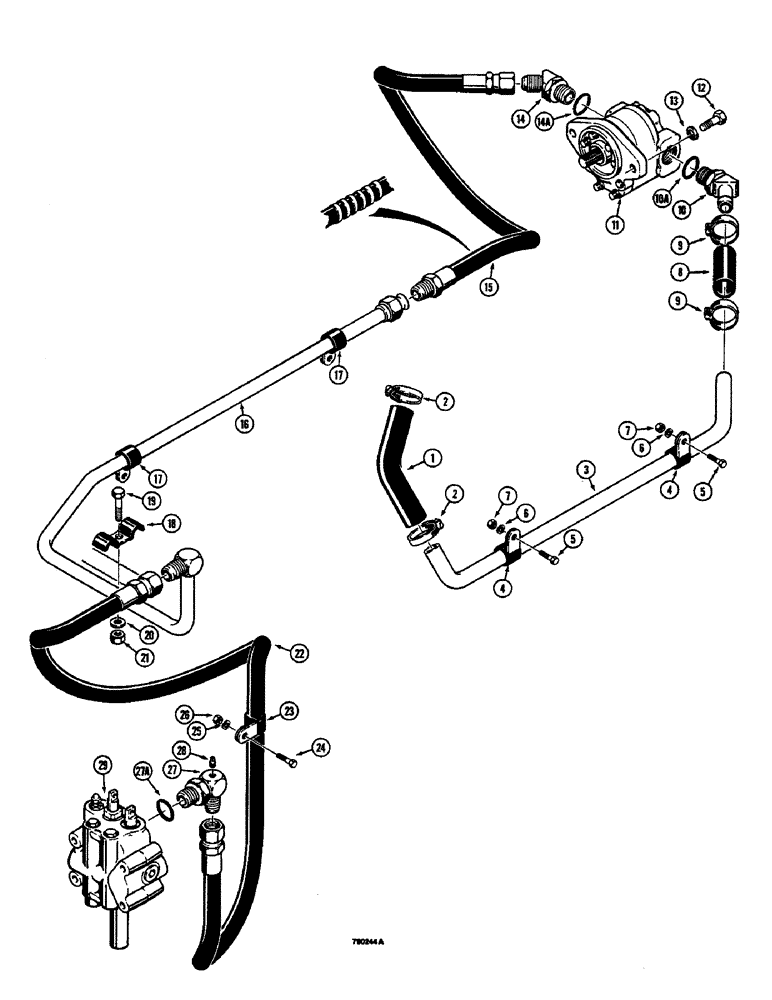

Запчасти Case 350B (144) - EQUIPMENT HYDRAULIC CIRCUIT, RESERVOIR TO CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

D54149

HOSE ASSY.

HOSE - from reservoir, 1-1/4" ID x 11" (279 mm) long, cut from S118465 bulk, see below

1шт.

2

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable #28, 1.31/2.25 Type F Worm

2шт.

3

R42012

TUBE - to equipment pump

1шт.

4

D40471

CLAMP

- tube

2шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- to equipment pump, cut from S118465 bulk, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

9

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

adjustable #28, 1.31/2.25 Type F Worm

2шт.

10

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj., Pump inlet, Incl. Ref. 10A 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

10a

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- elbow

1шт.

11

REF

INSTRUCTION

PUMP - equipment, for correcot assembly and components see figure 150 or 152, drive parts on figure 154

1шт.

12

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, adjustable, pump outlet, Includes: Ref. 14A

1шт.

14a

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

15

D52405

HOSE ASSY.

HOSE - from pump, 3/4" ID x 17-1/32" (433 mm) long, with integral hose guard

1шт.

16

R42165

TUBE ASSY.

TUBE - to control valve

1шт.

17

R14668

CLAMP

- tube, use power shuttle cooling system clamp hardware, see figure 92

2шт.

18

D42833

CLAMP

- tube

1шт.

19

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

20

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

21

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

22

R43143

HOSE - to control valve, 3/4" ID x 26" (660 mm) long

1шт.

23

D40471

CLAMP

- hose

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

27

R38928

FITTING

ELBOW - 90 degree, at control valve, Includes: Ref. 27A

1шт.

27a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- elbow, 1/8" NPT

1шт.

29

REF

INSTRUCTION

CONTROL VALVE - equipment, for correct assembly and components, see figures 206-214

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk 1.25" ID x 180.00", SAE 100R3

1шт.
