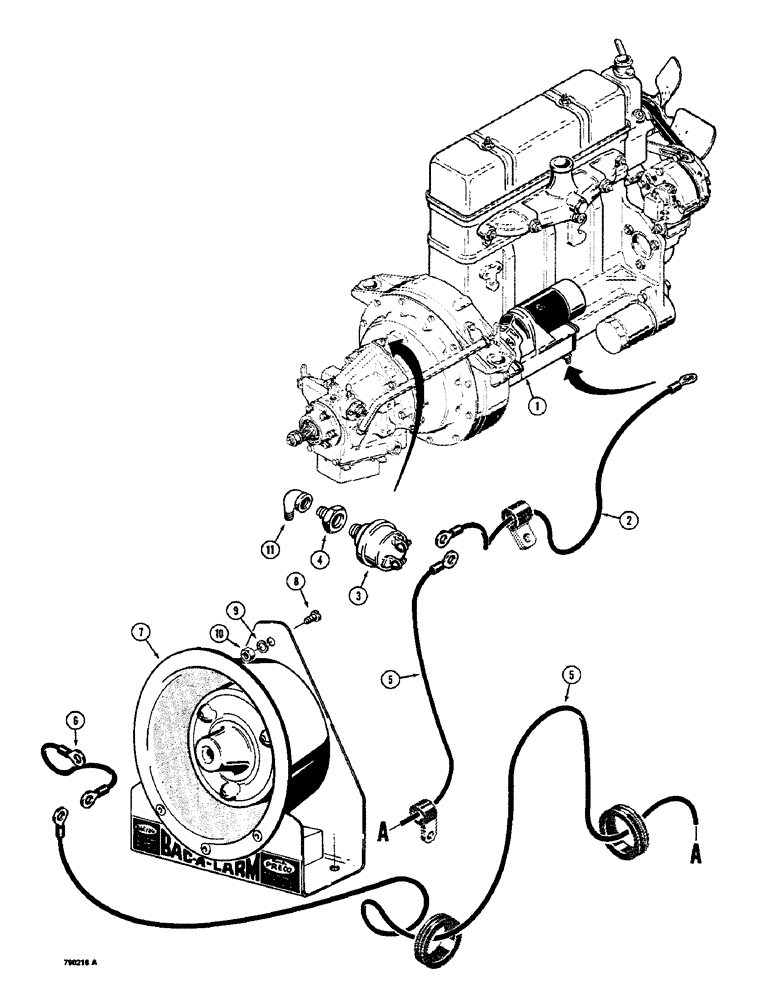

Запчасти Case 350B (084) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - parts list figures 62 and 64

1шт.

2

R41005

WIRE -, Serial Range: starter-switch

1шт.

3

L112588

SWITCH

- alarm

1шт.

4

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" x 1/8"

1шт.

5

R41004

WIRE - switch to alarm, 84" (2134 mm) long

1шт.

6

R41006

ELECTRICAL WIRE

WIRE - ground, 4" (102 mm) long

1шт.

7

S223033

BUZZER

BACKUP ALARM - electrical

1шт.

8

73-412

SCREW,Slotted Flat Hd, 1/4"-20 x 3/4"

MACHINE SCREW - flat head slotted, 1/4" - 20 NC x 3/4"

3шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

10

25-104

NUT,1/4"-20, G5

3шт.

11

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.
