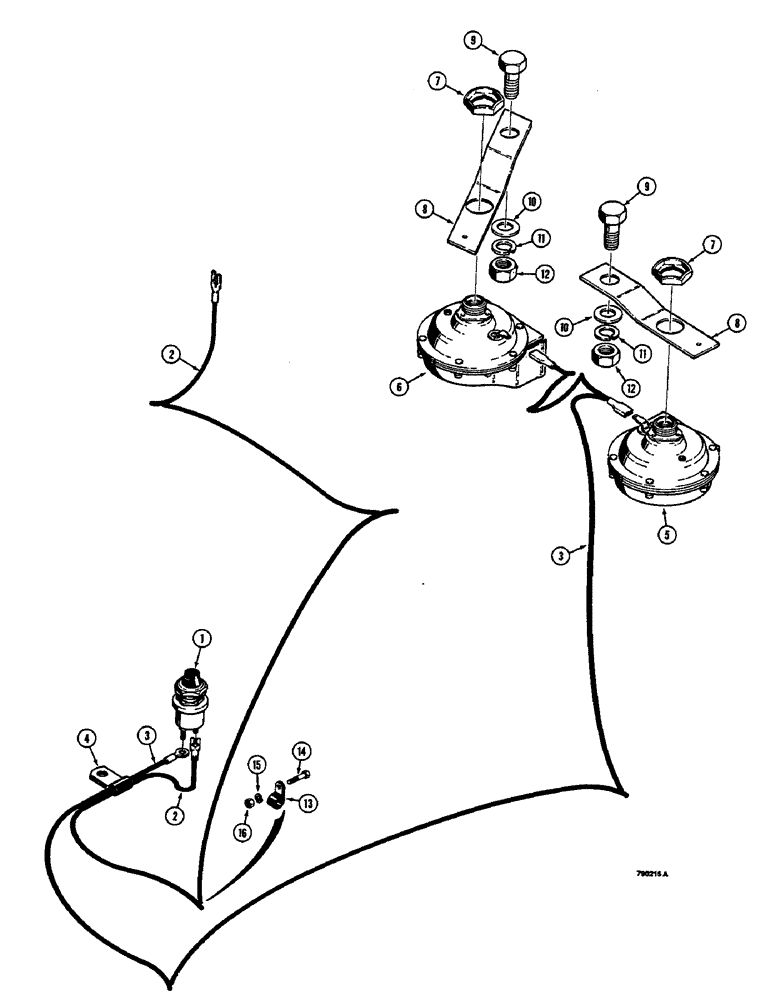

Запчасти Case 350B (082) - HORN (06) - ELECTRICAL SYSTEMS

1

D34924

SWITCH

- push button, horn

1шт.

2

R43122

WIRE - switch, ground, to ammeter terminal

1шт.

3

R43142

WIRE -, Serial Range: switch-horns

1шт.

4

49845

CLAMP

- wire, to seat and tank frame cover

1шт.

5

R45962

HORN

- right-hand

1шт.

6

D123205

HORN

- left-hand

1шт.

7

L30866

LOCK NUT

- special, 7/8"

2шт.

8

R39064

BRACKET, SUPPORTING

BRACKET - horn

2шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

95-8

WASHER,1/2"

flat 1/2"

2шт.

11

92-8

LOCK WASHER,1/2"

2шт.

12

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

13

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- horn wire, behind operators seat

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
