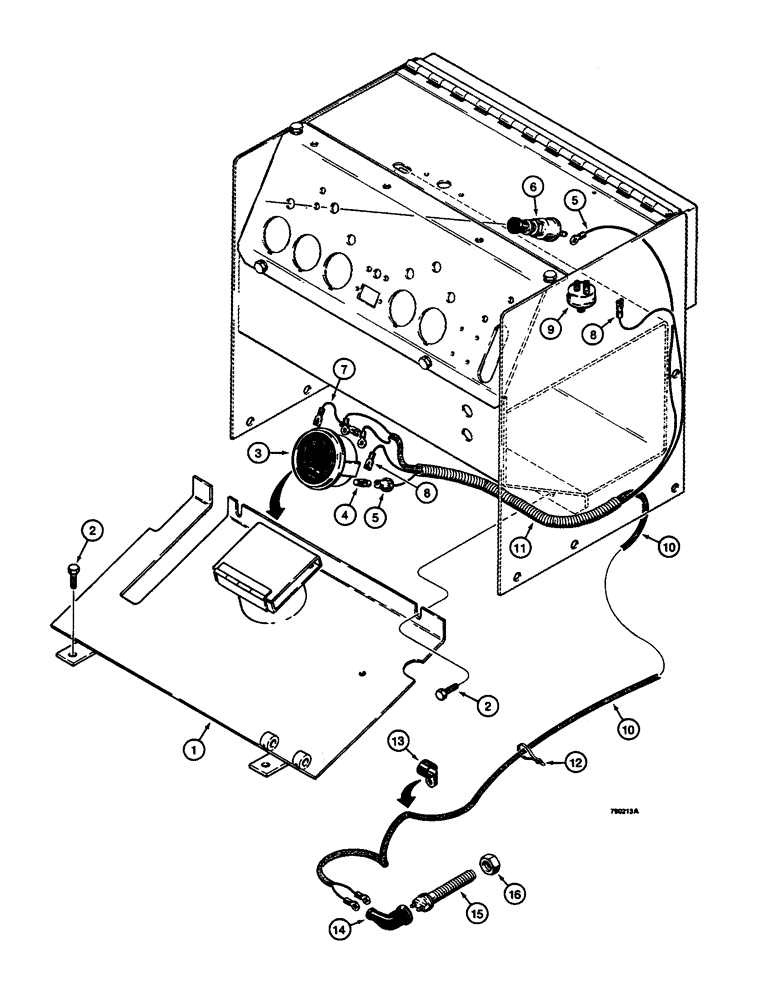

Запчасти Case 350B (078) - TACHOMETER AND WIRING, MODELS WITH PTO (06) - ELECTRICAL SYSTEMS

1

R44042

PLATE - front floor, used on models with tachometer only

1шт.

2

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

R29588

TACHOMETER

ASSEMBLY - PTO, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

TACHOMETER - without bulb and wire

1шт.

4

D74522

BULB

- no. 1889

1шт.

5

D74521

CONNECTOR ASSEMBLY - with wire to lamp switch

1шт.

6

REF

INSTRUCTION

SWITCH - lamp, see figure 74

1шт.

7

R43249

SLEEVE

WIRE - ground, tachometer

1шт.

8

R43248

WIRE - tachometer to oil pressure switch

1шт.

9

D28798

SWITCH

- engine oil pressure

1шт.

10

R29617

HARNESS

- tachometer

1шт.

11

R43250

CONDUIT

- harness, 20" (508 mm) long

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness, to PTO cover

1шт.

14

R29627

BOOT

GUARD - rubber

1шт.

15

R29589

SENSOR

- tachometer

1шт.

16

25-1512

JAM NUT,Jam, 3/4"-10, G5

JAM NUT - hex, 3/4" - 16 NF

1шт.
