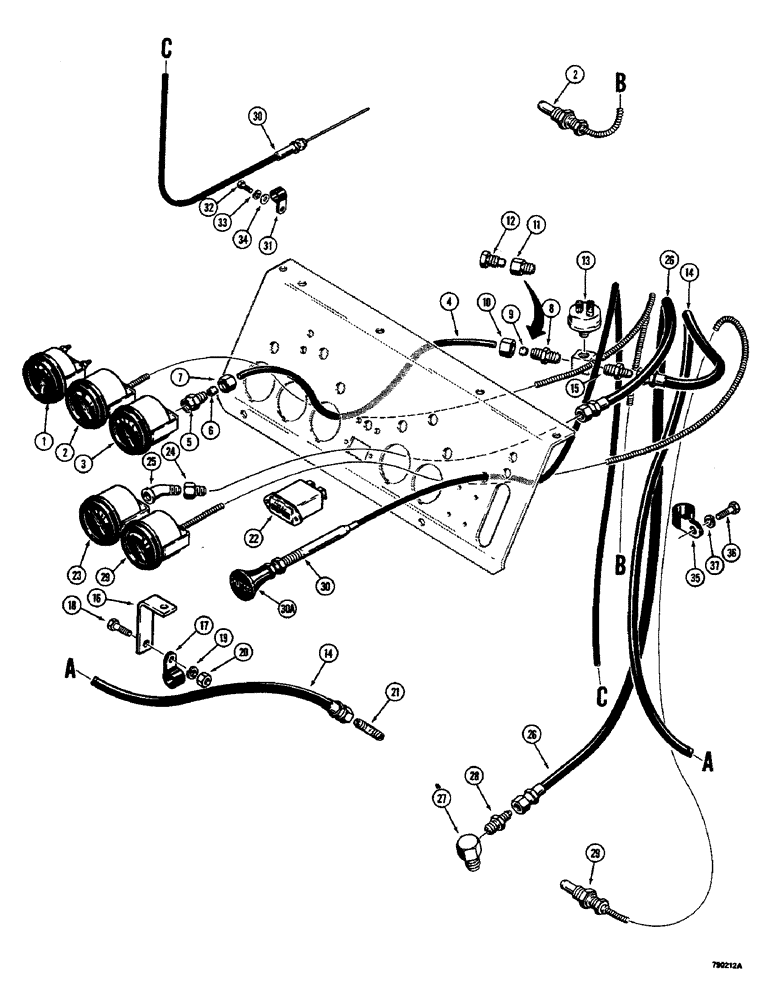

Запчасти Case 350B (076) - INSTRUMENT PANEL GAUGES AND FUEL SHUTOFF (06) - ELECTRICAL SYSTEMS

1

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

2

357042A1

GAUGE

- engine oil temperature

1шт.

3

1341325C1

GAUGE

- engine oil pressure

1шт.

4

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, engine oil pressure gauge to switch, 10" (254 mm) long, cut from bulk tubing, see parts substitution list for bulk tube options

1шт.

D35091

PIPE FITTING

ADAPTER - straight, female, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

6

D37176

SLEEVE

- adapter

1шт.

7

D37362

TUBE NUT

- adapter

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - male, production part, for service order 222-400, see refs. 11 and 12, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

9

D37176

SLEEVE

- adapter

1шт.

10

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - straight, service replacement for D35816, see refs. 8-10, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

12

222-500

TUBE NUT,5/16" - 24 NPT

NUT AND SLEEVE - adapter

1шт.

13

D28798

SWITCH

- engine oil pressure

1шт.

14

D95116

HOSE

- engine oil pressure, 44" (1118 mm) long

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, male

1шт.

16

R48000

BRACKET

- tube support

1шт.

17

49838

CLAMP

- engine oil presure hose

1шт.

18

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

21

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degrees

1шт.

22

L49907

GAUGE

HOURMETER - see figure 74 for mounting and electrical connections

1шт.

23

R42368

GAUGE ASSY.

GAUGE - transmission oil pressure

1шт.

24

218-461

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Female NPTF

ADAPTER - male

1шт.

25

221-401

ELBOW,45 Degree, 1/8"-27, NPT

STREET ELBOW - 45 degrees

1шт.

26

D95115

HOSE

- transmission oil pressure, 41-1/2" (1054 mm) long

1шт.

27

D49080

ELBOW UNION

ELBOW - special reducing, 90 degrees

1шт.

28

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - male

1шт.

29

R39457

ELECTRICAL GAUGE

GAUGE - converter temperature

1шт.

30

R42067

CABLE

CONTROL - fuel shutoff

1шт.

30a

L33717

KNOB

- fuel shutoff control

1шт.

31

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- fuel shutoff cable

1шт.

32

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

195-18

WASHER,1/4"

- flat, 1/4"

1шт.

35

D40471

CLAMP

- hoses, on cowl

1шт.

36

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.
