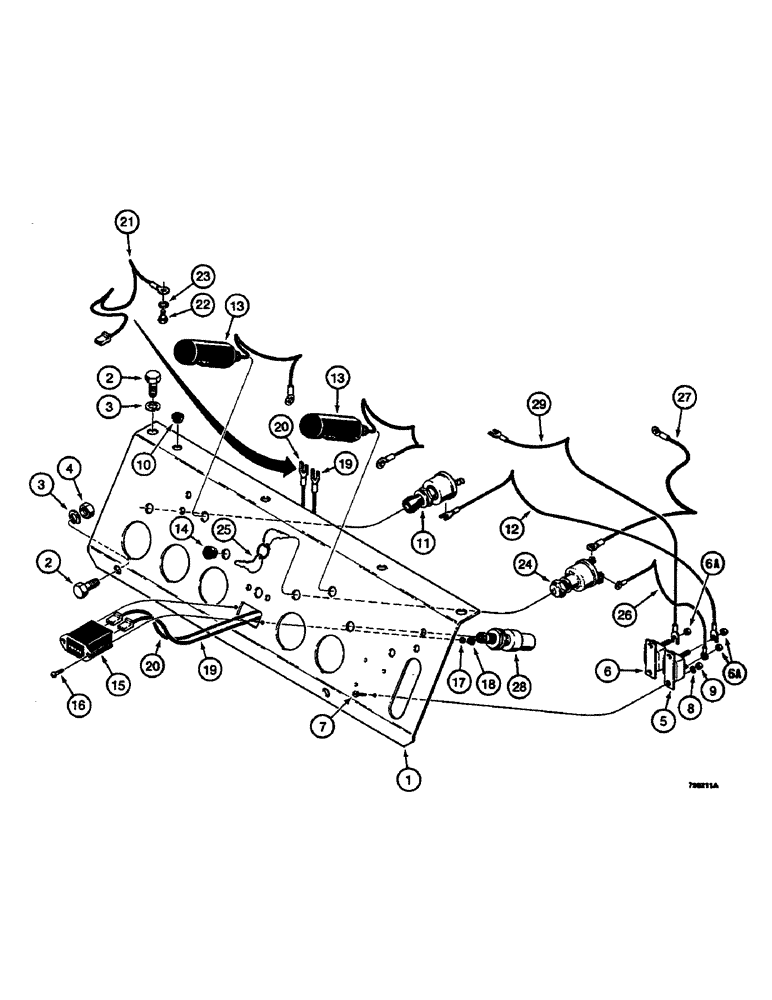

Запчасти Case 350B (074) - INSTRUMENT PANEL AND WIRING (06) - ELECTRICAL SYSTEMS

1

R47639

PANEL, INSTRUMENTS

INSTRUMENT PANEL - includes decal, for decal see figure 308

1шт.

2

113-279

BOLT

- hex head, 3/8" - 16 NC x 3/4", plated

4шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

5

L104329

BREAKER

CIRCUIT BREAKER - 15 amp, 24 volt, if used

1шт.

6

R45475

BREAKER

CIRCUIT BREAKER - 40 amp, 24 volt, Includes: Ref. 6A

1шт.

6a

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, no. 10-32 NF, used on refs. 5 and 6 circuit breaker terminals

2шт.

7

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

MACHINE SCREW - No. 8 - 32 NC x 3/8", plated

2-4шт.

8

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2-4шт.

9

129-16

NUT,#8-32

2-4шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

11

D35065

SWITCH

- lamp

1шт.

12

R40956

WIRE - lamp switch to 15 amp circuit beaker

1шт.

13

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, parts list and mounting hardware on figure 72, if used

2шт.

14

353-407

PLUG,Dome, .687" hole, Nylon

- nylon, 11/16" hole size, if used

1шт.

15

L49907

GAUGE

HOURMETER - engine

1шт.

16

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

MACHINE SCREW - Fillister Head, No. 5 - 40 NC x 1/2"

2шт.

17

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

18

129-44

SQUARE NUT,Sq, #5-40

2шт.

19

R38765

ELECTRICAL WIRE

WIRE - hourmeter to oil pressure switch, 40" (1016 mm) long, service replacement for a 9" (229 mm) long wire used in production, cut to required length

1шт.

20

R38765

ELECTRICAL WIRE

WIRE - hourmeter ground, 40" (1016 mm) long service replacement, to key switch, if used (See refs. 21-23)

1шт.

21

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, to upright frame, 14" (356 mm) long, if used

1шт.

22

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

23

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , If used Int Tooth, 1/4"

1шт.

24

D35092

SWITCH

KEY SWITCH - ignition, includes two keys, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

KEY - switch, short, set of two, not shown, comes with ref. 24 key switch, service with R30074 key set

1шт.

25

R30074

SET

KEY - switch, long, set of two, service replacement

1шт.

26

L11780

ELECTRICAL WIRE

WIRE - 15 amp circuit breaker to key switch

1шт.

27

A13755

WIRE - key switch to oil pressure switch

1шт.

28

R40432

SWITCH

- push button, starter

1шт.

29

R40956

WIRE - 40 amp circuit, Serial Range: breaker-ammeter

1шт.
