Запчасти Case 350B (072) - LAMPS (06) - ELECTRICAL SYSTEMS

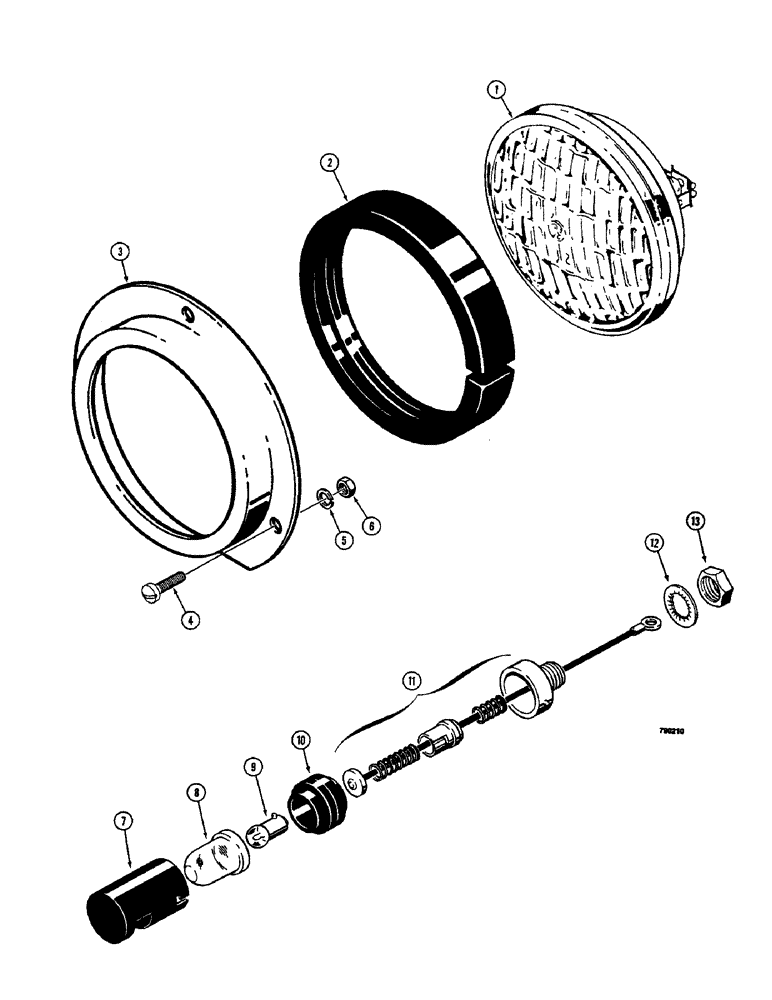

Схема запчастей Case 350B - (072) - LAMPS (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406, head lamps and rear lamp

3шт.

2

D93241

RETAINER

SEAL - bulb, rubber, head lamps and rear lamp

3шт.

3

D57288

RING

RETAINER - lamp, head lamps and rear lamp

3шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

MACHINE SCREW - pan head slotted, No. 10 - 24 NC x 1/2", plated, head lamps and rear lamp

9шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Head lamps and rear lamp #10

9шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, head lamps and rear lamp

9шт.

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Ref. 7 - 11

2шт.

7

R22237

COVER

instrument panel lamp

1шт.

8

R22232

SIGHTGLASS

LENS -, instrument panel lamp

1шт.

9

71421

BULB,R5W, 12V, 5W

- No. 67, instrument panel lamp

1шт.

10

NSS

NOT SOLD SEPARAT

INSULATOR - rubber, instrument panel lamp

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - 10 amp, includes wire, instrument panel lamp

1шт.

12

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , Instrument panel lamp Int Tooth, 5/8"

2шт.

13

86637932

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8" - 18 NF, instrument panel lamp

2шт.

Выбрано товаров: 14
