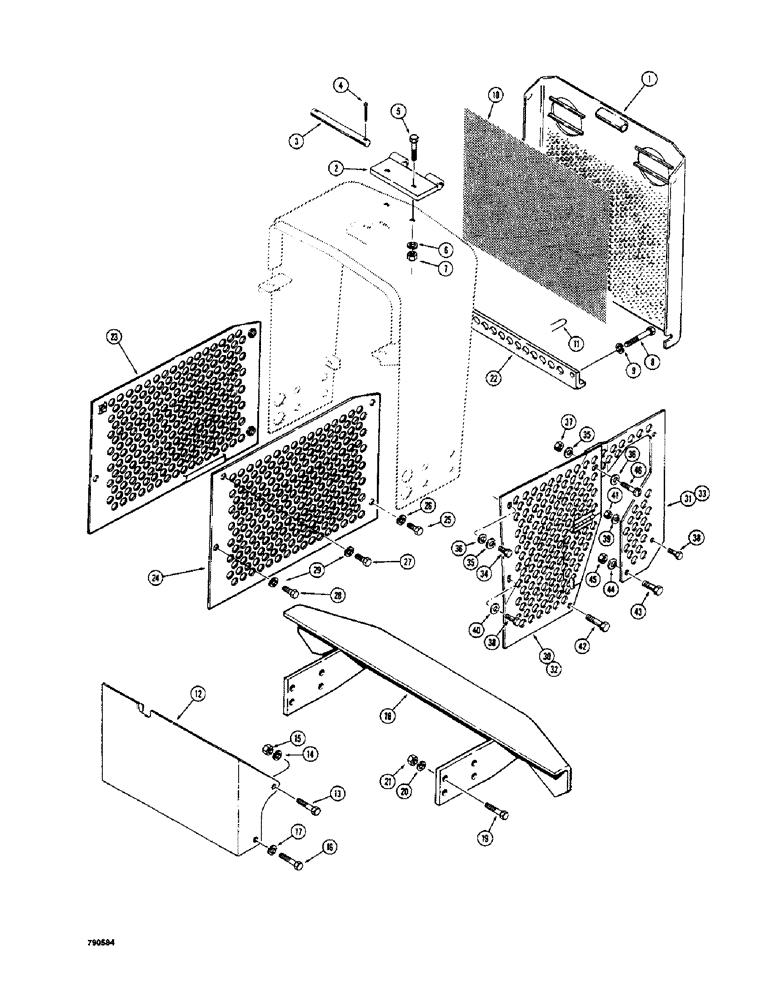

Запчасти Case 350 (420) - FORESTRY ATTACHMENTS (05) - UPPERSTRUCTURE CHASSIS

1

D50515

GRILLE ASSY

GRILLE - radiator, drawbar and dozer models only

1шт.

2

D40462

BRACKET - grille

1шт.

3

D40286

PIN - grille mounting

1шт.

4

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2" - 13 NC x 2-1/2"

2шт.

9

92-8

LOCK WASHER,1/2"

2шт.

10

D33494

SCREEN - grille

1шт.

11

R14078

ELECTRICAL WIRE

WIRE - screen mounting, no. 20 x 18-1/4" long

6шт.

12

D21408

GUARD - rear transmission, models without backhoe

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

16

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

D32133

BUMPER - drawbar models, if used

1шт.

19

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

8шт.

20

92-8

LOCK WASHER,1/2"

8шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

22

D51326

PLATE

CROSSBAR - radiator guard

1шт.

23

D30483

GUARD - LH, side, loader and drawbar models, brush

1шт.

23

R38012

PLATE

GUARD - LH, side, noise reduction, loader and drawbar models, brush

1шт.

24

D30480

GUARD - RH side, loader and drawbar models, brush

1шт.

24

R38013

PLATE

GUARD - RH side, noise reduction, loader and drawbar models, brush

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Loader and drawbar models, brush guards Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

26

92-8

LOCK WASHER,1/2"

loader and drawbar models - brush guards 1/2"

4шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Loader and drawbar models, brush guards Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Loader and drawbar models, brush guards Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

loader and drawbar models - brush guards 3/8"

4шт.

30

D50539

GUARD - RH, side rear, dozer models, brush

1шт.

31

D50520

GUARD - RH, side front, dozer models, brush

1шт.

32

D50540

GUARD - LH, side rear, dozer models, brush

1шт.

33

D50521

GUARD - LH, side front, dozer models, brush

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Dozer models, brush guards Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

35

92-6

LOCK WASHER,3/8"

dozer models - brush guards 3/8"

4шт.

36

195-25

WASHER,3/8"

- flat, , dozer models, brush guards 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, dozer models, brush guards

2шт.

38

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Dozer models, brush guards Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

39

92-8

LOCK WASHER,1/2"

dozer models - brush guards 1/2"

4шт.

40

195-33

WASHER,1/2"

- flat, , dozer models, brush guards 1/2"

2шт.

41

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, dozer models, brush guards

4шт.

42

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Dozer models, brush guards Hex, 5/8"-11 x 2 1/4", G5

2шт.

43

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Dozer models, brush guards Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

44

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Dozer models, brush guards 5/8"

2шт.

45

25-1010

NUT,5/8"-11, G5

Dozer models, brush guards 5/8"-11, G5

2шт.

46

77-616

SCREW - machine, 3/8" - 16 NC x 1, dozer models, brush guards

2шт.
