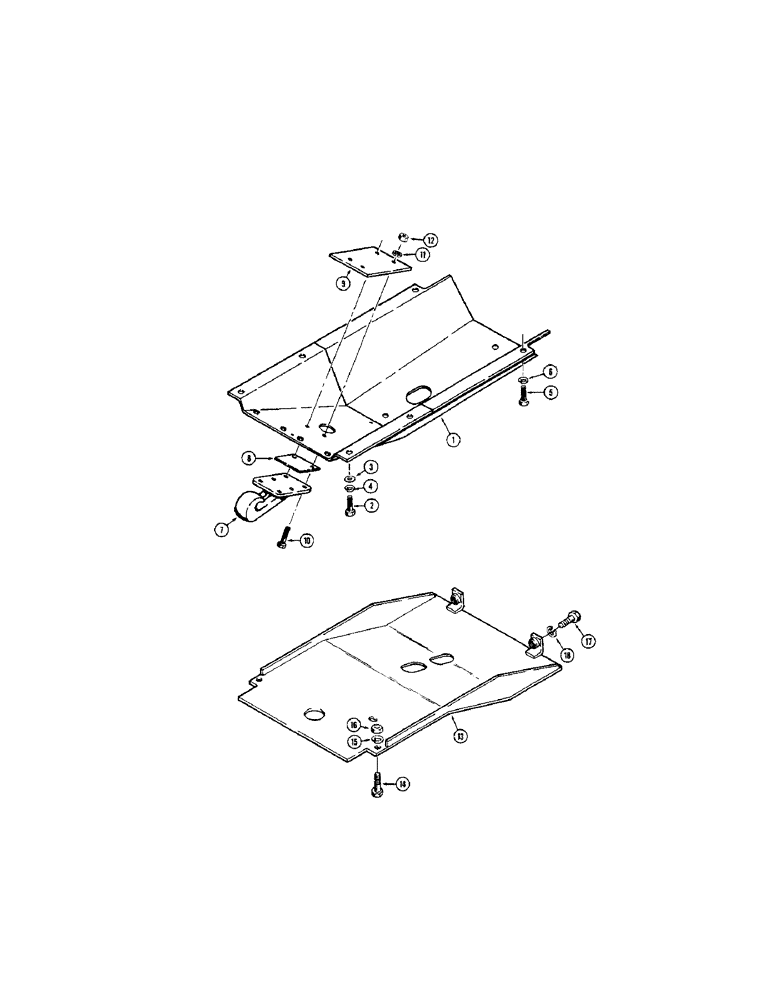

Запчасти Case 350 (418) - PULL HOOK, CRANKCASE AND TRANSMISSION GUARDS (05) - UPPERSTRUCTURE CHASSIS

1

D26694

GUARD - crankcase, use on all models except backhoe

1шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

92-8

LOCK WASHER,1/2"

2шт.

7

10940

HOOK

- pull

1шт.

8

36718

BRAKE BAND

SHIM - mounting, pull hook

1шт.

9

32123

LEVER

PLATE - doubler, pull hook

1шт.

10

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- hex, 1/2" - 20 NF x 2-1/4"

4шт.

11

92-8

LOCK WASHER,1/2"

4шт.

12

25-118

NUT,1/2"-20, G5

- hex, 1/2" - 20 NF

4шт.

13

D48486

GUARD

- transmission, use on all models except backhoe

1шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

2шт.

15

92-8

LOCK WASHER,1/2"

2шт.

16

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

17

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
