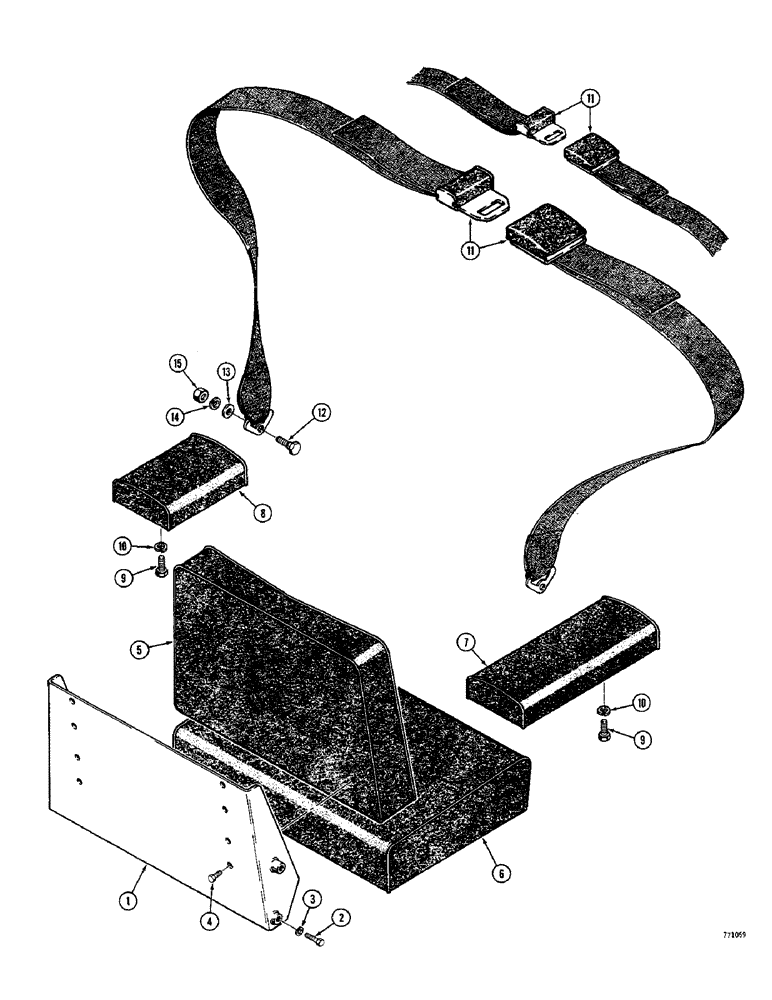

Запчасти Case 350 (416) - SEAT AND SEAT BELTS (05) - UPPERSTRUCTURE CHASSIS

1

D33263

SUPPORT - seat

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

D44169

CUSHION

- back

1шт.

6

D44386

CUSHION ASSY.

CUSHION - seat

1шт.

7

D27693

ARMREST

CUSHION - arm, RH

1шт.

8

D48489

ARM

CUSHION - arm, LH

1шт.

9

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

R36488

SAFETY BELT

SAFETY BELT, 3" (76 mm) wide

1шт.

11

R39063

SAFETY BELT

SAFETY BELT, 2" (51 mm) wide

1шт.

12

F42236

STEP BOLT

BOLT - special

2шт.

13

195-529

WASHER,7/16", SAE

- flat, 7/16", plated

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

15

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

2шт.
