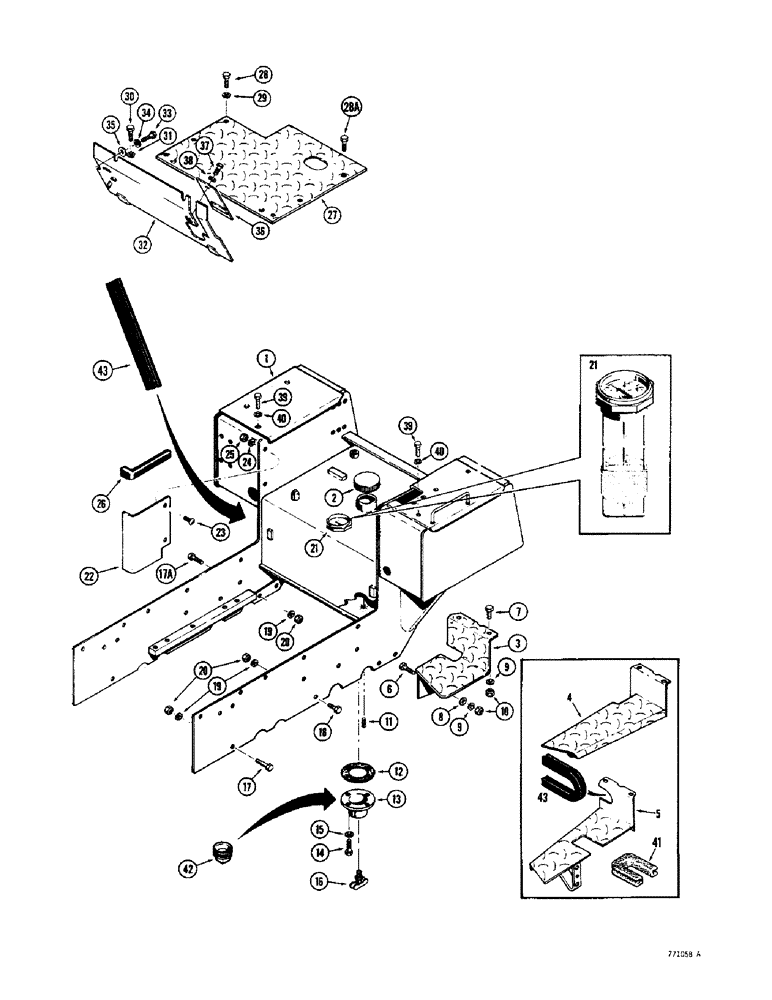

Запчасти Case 350 (414) - SEAT AND FUEL TANK, FLOOR PLATES AND STEP PLATES (05) - UPPERSTRUCTURE CHASSIS

1

D48504

TANK

FRAME AND FUEL TANK - service with R34143, Serial Range: -3054401

1шт.

1

R31449

TANK

FRAME AND FUEL TANK - uses items 12, 13 and 14, service with R34143, Start Serial: 3054401

1шт.

1

R34143

TANK

FRAME AND FUEL TANK - used item 42

1шт.

2

CASE10731

FILLER CAP

CAP - filler

1шт.

3

D33200

PLATE - step, loader models

1шт.

4

D33995

PLATE - step, LH, drawbar and dozer models, except ROPS models, Serial Range: -3050472

1шт.

4

F93284

PLATE - step, LH, drawbar and dozer models, previous ROPS models, Start Serial: 3050472

1шт.

5

D33996

PLATE - step, RH, drawbar and dozer models, except ROPS models, Serial Range: -3050472

1шт.

5

F93283

PLATE - step, RH, drawbar and dozer models, previous ROPS models, Start Serial: 3050472

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2-4шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2-4шт.

8

195-25

WASHER,3/8"

- flat, 3/8"

2-4шт.

9

92-6

LOCK WASHER,3/8"

4-8шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, 4 used on loader models and 8 used on drawbar and dozer models

4-8шт.

11

221-12

PLUG,Sq Hd, 1/4"-18

- 1/4" NPT

1шт.

12

35621

GASKET

- drain cover

1шт.

13

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - fuel tank drain

1шт.

14

14-614

SCREW,Hex, 3/8" - 24 x 7/8", Gr 5

BOLT - hex, 3/8" - 24 NF x 7/8"

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

217-81

VALVE

DRAINCOCK - fuel tank

1шт.

17

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4"

2шт.

17a

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

4шт.

18

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

8шт.

20

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

21

D43838

GAUGE

- fuel

1шт.

22

D37821

SHIELD - heat, models with equipment hydraulics only

1шт.

23

173-250

SCREW - machine, 3/8" - 16 NC x 1"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

26

D33500

LINING

TRIM - edge, heat shield

1шт.

27

D48479

PLATE - floor, rear

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3-4шт.

28a

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

If used Hex, 3/8"-16 x 2 1/4", G5

1шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2" - 13 NC x 3/4"

2шт.

31

92-8

LOCK WASHER,1/2"

2шт.

32

D48492

PLATE - floor, front, Serial Range: -3043118

1шт.

32

D51751

PLATE - floor, front, Serial Range: 3043118-3065736

1шт.

32

R39040

PLATE - floor, front, Start Serial: 3065737

1шт.

33

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.

35

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

36

D48586

COVER - dipstick, shuttle oil level, if used

1шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

38

92-6

LOCK WASHER,3/8"

1шт.

39

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

41

D49094

LINING

TRIM - RH step

1шт.

42

R27578

PLUG

- special

1шт.

43

REF

INSTRUCTION

TRIM - right hand step plate and seat frame, 5" (127 MM) long, cut from D52412, see below

2шт.

D52412

RUBBER STRIP

TRIM - edge, 83" (2108 MM) long

1шт.
