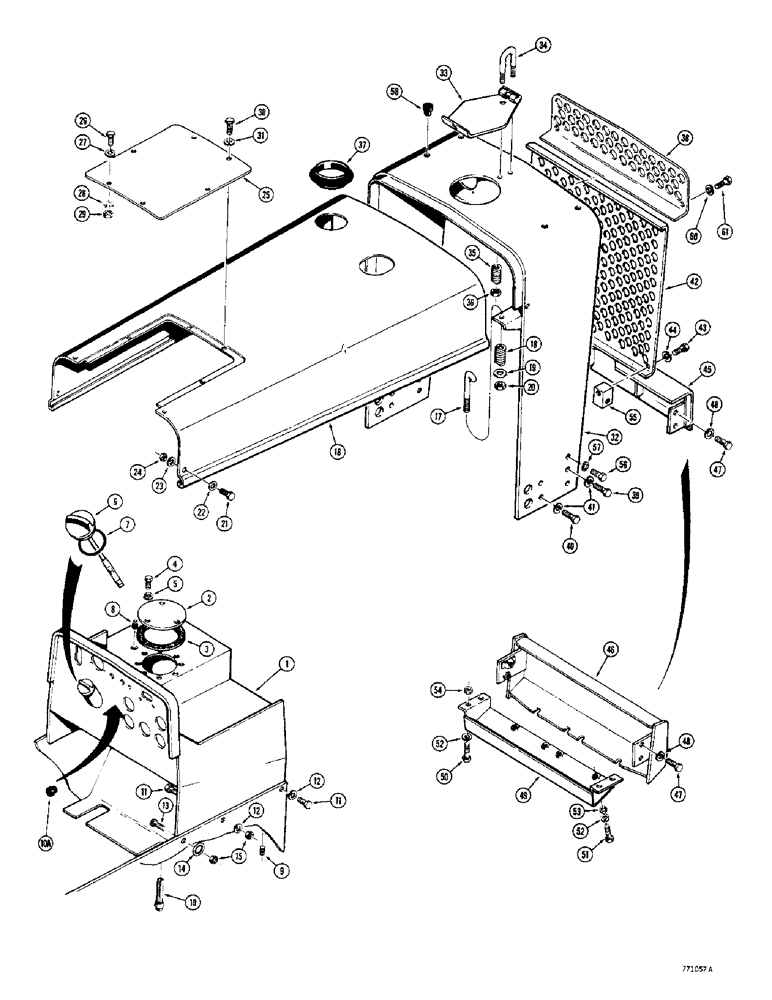

Запчасти Case 350 (410) - HOOD, SHROUD, COWL AND DASH (05) - UPPERSTRUCTURE CHASSIS

1

D48503

COWL

AND DASH - uses 3/8" - 24 NF x 1" bolts, service with R42562 cowl and D26908 regulator plate and (6) 13-616 bolts, Serial Range: -3054401

1шт.

1

D51346

COWL AND DASH - uses 3/8" - 16 NC x 1" bolts, service with R42562 cowl and D26908 regulator plate, Serial Range: -3054401

1шт.

1

R42562

COWL

AND DASH - uses 3/8" - 16 NC x 1" bolts, Start Serial: 3054401

1шт.

2

37758

HOSE

COVER - hydraulic tank

1шт.

3

36321

GASKET

- cover

1шт.

4

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- hex, 3/8" - 24 NF x 1", D48503 cowl

3шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

D51346 and R36900 cowls Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

D35919

DIPSTICK

CAP AND DIPSTICK - hydraulic oil

1шт.

7

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- cap and dipstick

1шт.

8

221-7

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - square head, 1-1/4" NPT

1шт.

9

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1шт.

10

221-751

PLUG - drain, magnetic, 3/4" NPT 3/4"-14

1шт.

10a

353-407

PLUG,Dome, .687" hole, Nylon

- button, rubber

1шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

12

92-8

LOCK WASHER,1/2"

4шт.

13

75-816

SCREW - machine, 1/2" - 13 NC x 1"

2шт.

14

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

16

D49082

HOOD

- engine

1шт.

17

D33958

BOLT

- special, hood hold down

2шт.

18

F60482

SPRING

- hold down bolt

2шт.

19

195-25

WASHER,3/8"

- flat, 3/8"

2шт.

20

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self lock, 3/8" - 16 NC

2шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

22

195-25

WASHER,3/8"

- flat, 3/8"

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

25

D50728

COVER - access

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

195-525

WASHER,3/8", SAE

- flat, 3/8"

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

30

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- hex, 1/4" - 28 NF x 1/2"

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

32

D44382

SHROUD - radiator, loader models only

1шт.

33

D30074

LID

COVER - radiator, access

1шт.

32

D43730

SHROUD

- radiator, drawbar and dozer models, on models before sn 3043118, order (2) D35180 blocks, (2) 13-7024 bolts and (2) 92-10 lock washers, when stock is exhausted, use R31446 shroud, (2) D57287 light seals and (2) D57288 light retainers, Serial Range: -3054401

1шт.

32

R31446

SHROUD - radiator, drawbar and dozer models, Start Serial: 3054401

1шт.

34

D29688

U-BOLT

- radiator cover

1шт.

35

23098

SPRING

- radiator cover

2шт.

36

131-365

LOCK NUT

NUT - hex, self lock, 5/16" - 24 NF

2шт.

37

R14780

GROMMET

- air cleaner

1шт.

38

D43729

GUARD - head lamp

1шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

40

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Drawbar and dozer models Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

41

92-8

LOCK WASHER,1/2"

8шт.

42

P52315

CLEVIS

GRILLE - radiator

1шт.

43

113-474

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex, 1/2" - 13 NC x 1-1/2", plated

4шт.

44

192-42

WASHER - lock, 1/2", plated

4шт.

45

D51341

BUMPER - backhoe models only

1шт.

46

D48435

BUMPER - all models without backhoe, power angle-tilt dozers, Serial Range: -3047966

1шт.

46

R24404

BUMPER

- power angle-tilt dozers, Start Serial: 3047966

1шт.

47

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex, 1/2" - 13 NC x 1-3/4"

4шт.

48

92-8

LOCK WASHER,1/2"

4шт.

49

36979

SPACER

SUPPORT - bumper

1шт.

50

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

51

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

52

92-8

LOCK WASHER,1/2"

8шт.

53

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

54

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

55

D35180

BLOCK

- radiator to guard mounting

2шт.

56

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

57

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

58

R38805

PLUG

4шт.

59

RESERVED

1шт.

60

192-42

WASHER - lock, 1/2"

2шт.

61

113-472

BOLT

- hex, 1/2" - 13 NC x 1"

2шт.
