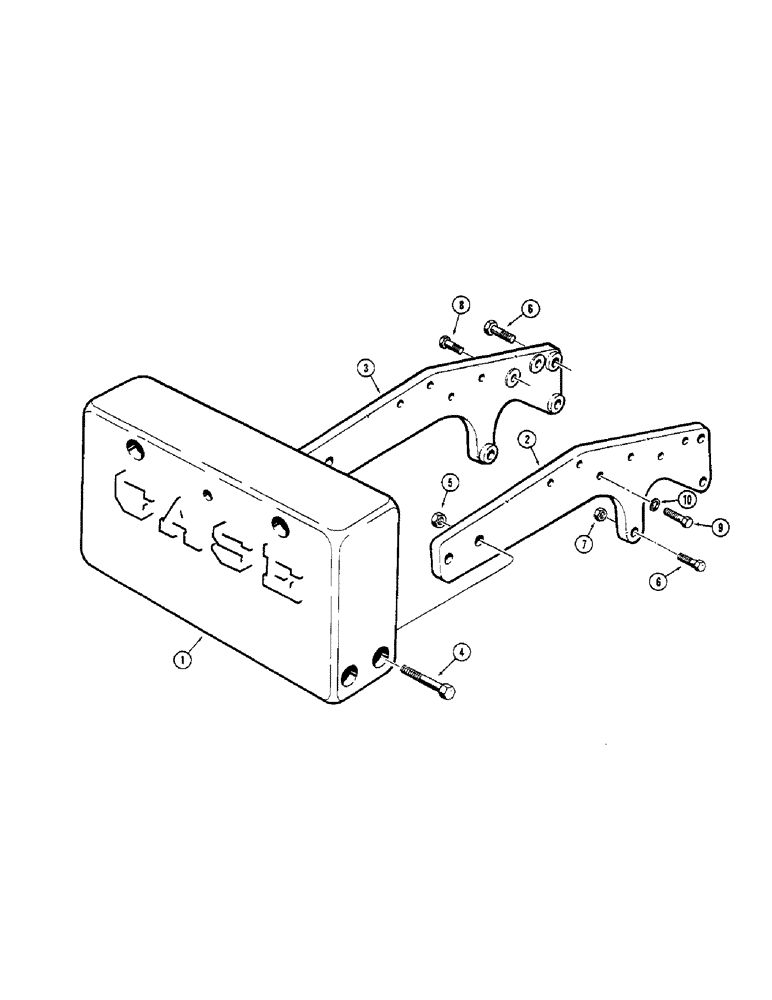

Запчасти Case 350 (404) - REAR COUNTERWEIGHT - PTO MODELS (05) - UPPERSTRUCTURE CHASSIS

1

D32104

X

COUNTERWEIGHT - rear, 1400 pounds (634.0 KG)

1шт.

2

D33842

ARM - support, RH

1шт.

3

D33843

ARM - support, LH

1шт.

4

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

5

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

6шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

9

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4"

8шт.

10

92-8

LOCK WASHER,1/2"

8шт.
