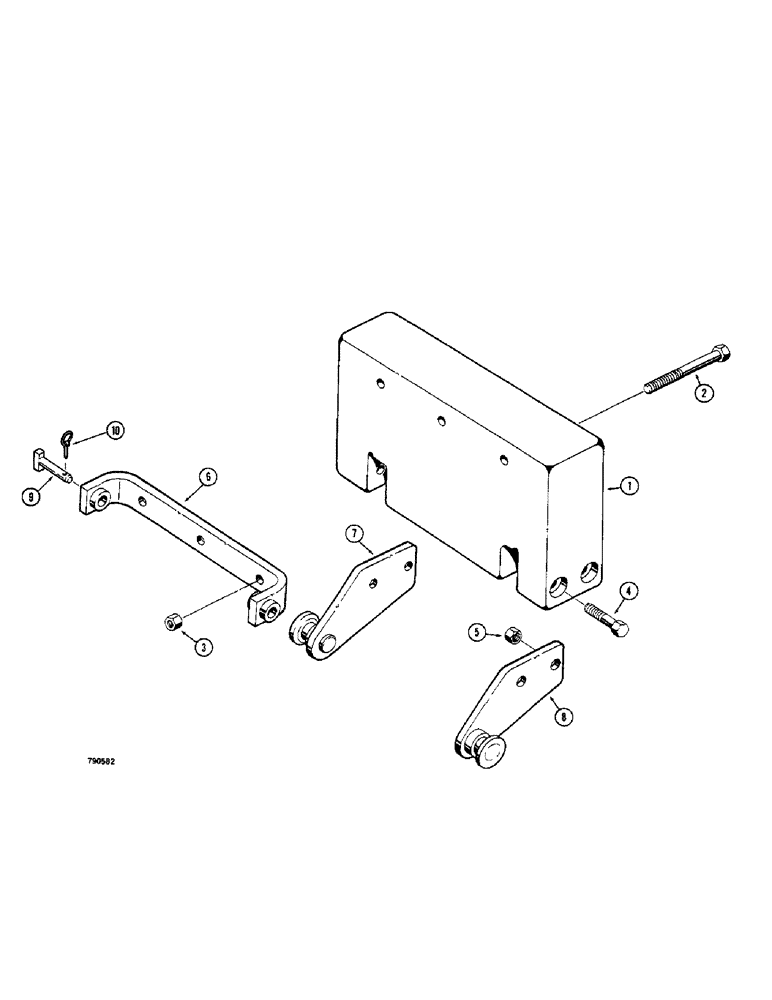

Запчасти Case 350 (404[1]) - REAR COUNTERWEIGHT - WITH BACKHOE REMOVED (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 pounds (634.0 KG)

1шт.

2

15-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

- hex, 1" - 8 NC x 10-1/2"

2шт.

3

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

2шт.

4

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

5

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.

6

D37534

BRACKET - counterweight mounting, upper

1шт.

7

D37134

ARM

SUPPORT ARM - lower, RH

1шт.

8

D37135

ARM

SUPPORT ARM - lower, LH

1шт.

9

D38697

PIN ASSY.

PIN - mounting bracket

2шт.

10

D33805

PIN

- klik

2шт.
