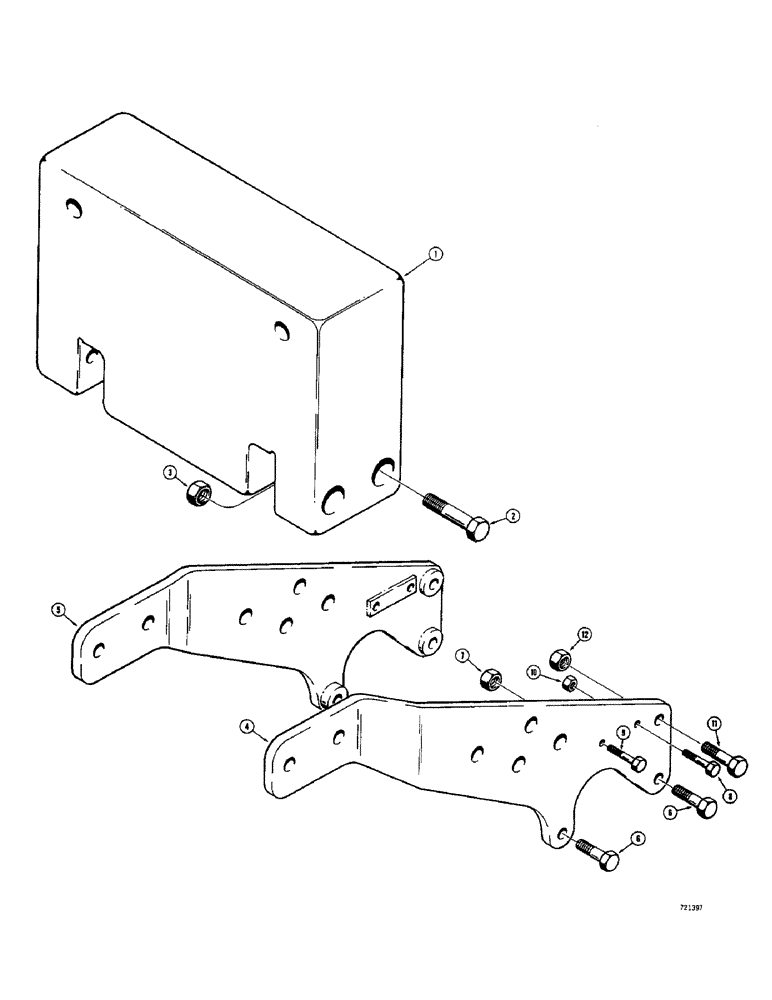

Запчасти Case 350 (402) - REAR COUNTERWEIGHT - LOADER/WINCH MODELS, USED TRACTOR SN3050472 & AFTER OR PREVIOUS ROPS MODELS (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 900 pounds (408 KG)

1шт.

2

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT - hex, 1" - 14 NC x 5"

4шт.

3

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 14 NF

4шт.

4

R29875

ARM - support, RH

1шт.

5

R29876

ARM - support, LH

1шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

7

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" - 10 NC

2шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

9

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2" - 13 NC x 3"

2шт.

10

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

11

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

12

25-1012

NUT,3/4"-10, G5

2шт.
