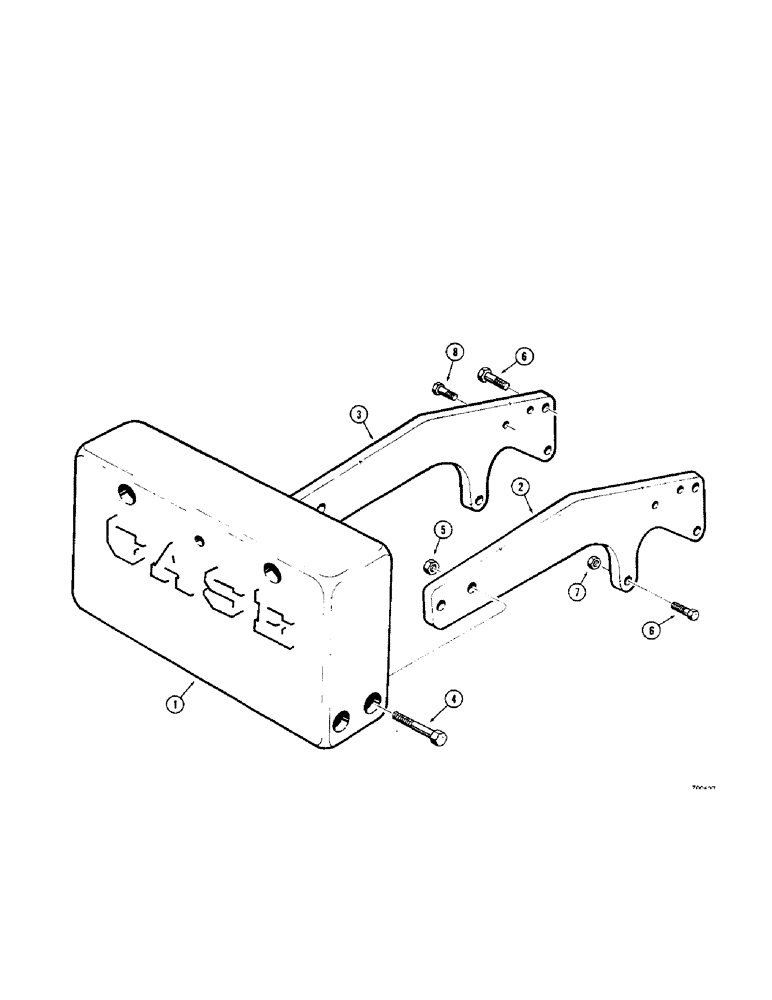

Запчасти Case 350 (400[1]) - REAR COUNTERWEIGHT - LOADER/WINCH MODELS USED BEFORE TRACTOR SN 3050472 EXCEPT ROPS MODELS (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 pounds (635.0 KG)

1шт.

2

D33842

ARM - support, RH

1шт.

3

D33843

ARM - support, LH

1шт.

4

15-1696

CAPSCREW,Hex, 1" - 8 x 6"

BOLT - hex, 1" - 8 NC x 6"

4шт.

5

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.

6

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

6шт.

7

25-1012

NUT,3/4"-10, G5

2шт.

8

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.
