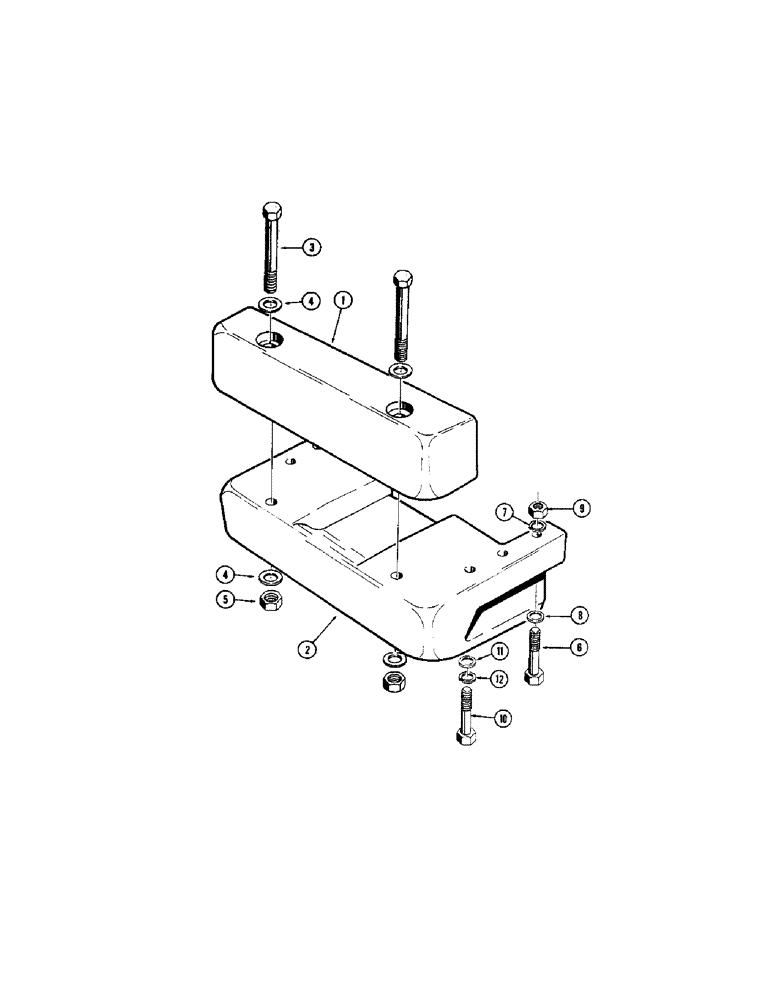

Запчасти Case 350 (398) - FRONT COUNTERWEIGHT, MODELS WITHOUT BACKHOE (05) - UPPERSTRUCTURE CHASSIS

1

R26023

WEIGHT

COUNTERWEIGHT - upper, 90 pounds (40.8 KG)

1шт.

2

36616

SHIM

COUNTERWEIGHT - lower, 420 pounds (190.5 KG)

1шт.

3

13-10128

BOLT,Hex, 5/8" - 11 x 8", Gr 5

2шт.

4

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

4шт.

5

230-4117

LOCK NUT,7/16"-14, GA

NUT - hex, self lock, 5/8" - 11 NC

2шт.

6

26-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

- hex, 1/2" - 13 NC x 4", grade 8

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

D26752

WASHER

- special

2шт.

9

129-556

NUT,1/2"-13, G8

6 used without cage nuts 1/2"-13, G8

4-6шт.

10

26-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2"-13 NC x 4-1/4", grade 8

4шт.

11

D26752

WASHER

- special

4шт.

12

92-8

LOCK WASHER,1/2"

2шт.
