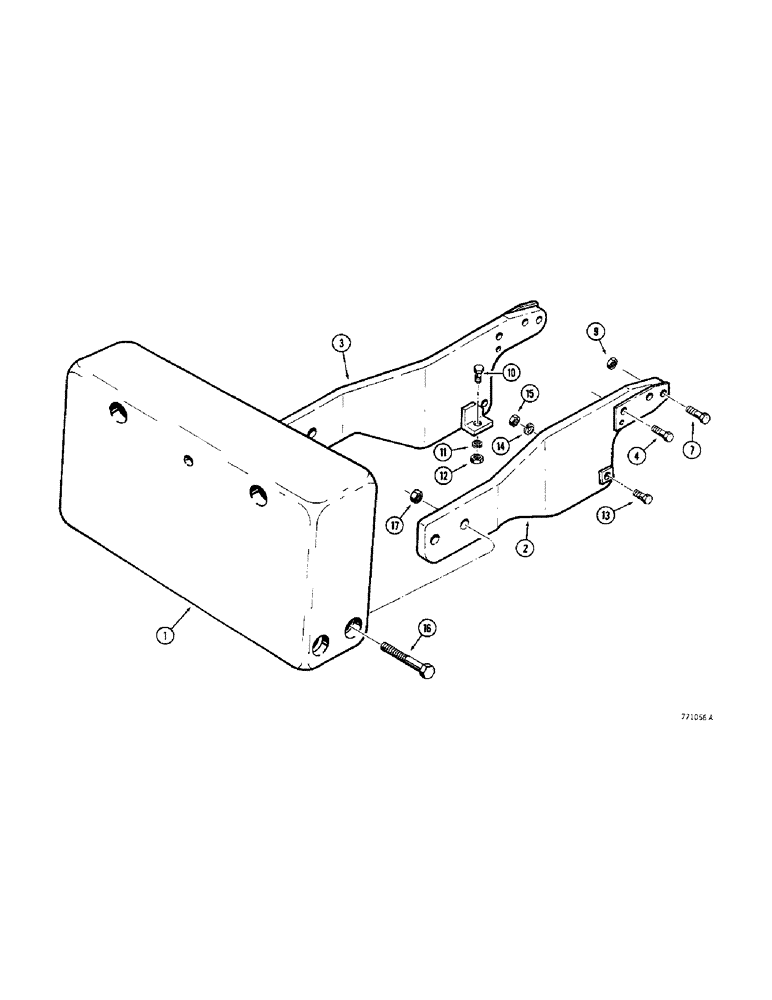

Запчасти Case 350 (398[1]) - REAR COUNTERWEIGHT - LOADER MODELS WITHOUT REAR MOUNTED EQUIPMENT (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - 1400 pounds (635.0 KG), cast

1шт.

1

R32731

WEIGHT

COUNTERWEIGHT - 1500 pounds (680.4 KG), fabricated, not shown, service with D31204

1шт.

2

D32685

SUPPORT

ARM - counterweight support, RH

1шт.

3

D32684

ARM - counterweight support, LH

1шт.

4

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

4шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

8

RESERVED

1шт.

9

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self lock, 3/4" - 10 NC

2шт.

10

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

2шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12

25-1010

NUT,5/8"-11, G5

2шт.

13

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

25-1012

NUT,3/4"-10, G5

2шт.

16

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

17

131-659

NUT,1"-8, GB

NUT - hex, self lock, 1" - 8 NC

4шт.
