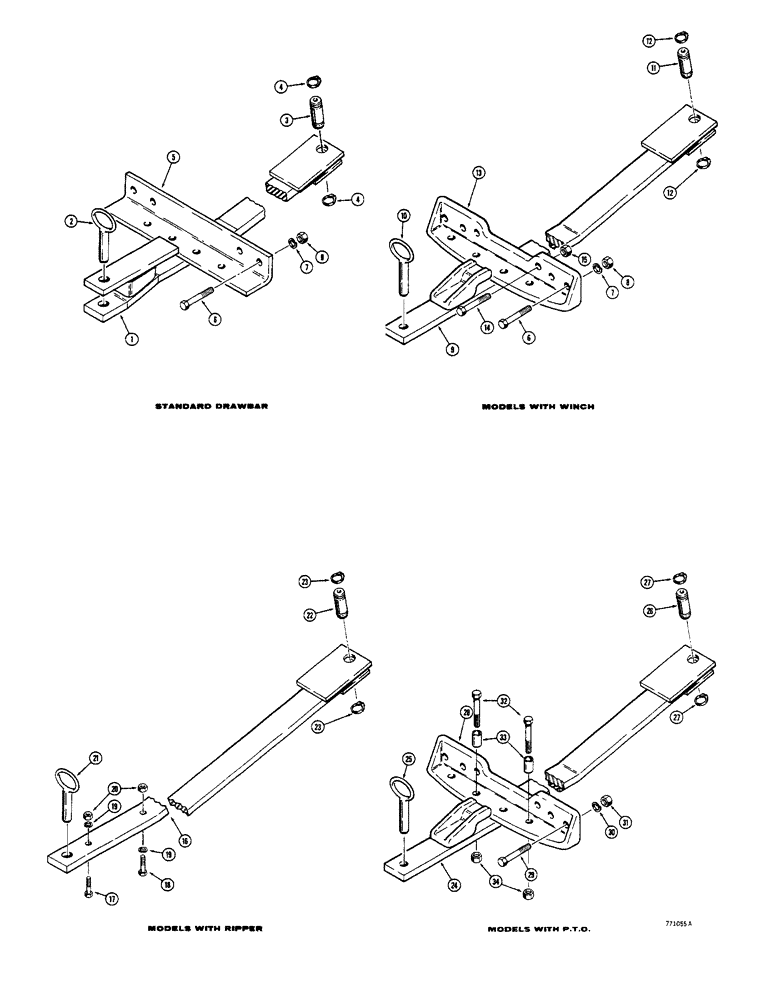

Запчасти Case 350 (396) - DRAWBARS, USED TRACTOR SN 3050472 AND AFTER/OR SERVICE REPLACEMENT (05) - UPPERSTRUCTURE CHASSIS

1

R29786

DRAWBAR

- standard

1шт.

2

13073

AXLE PIN

PIN - hitch, drawbar, standard

1шт.

3

D33816

PIN

- mounting, drawbar, standard

1шт.

4

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, standard drawbar #125, Ext

2шт.

5

D40387

GUIDE - drawbar, standard

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Standard drawbar Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard drawbar 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

Standard drawbar 5/8"-11, G5

4шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models with winch Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with winch 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

Models with winch 5/8"-11, G5

4шт.

9

R29833

DRAWBAR - models with winch

1шт.

10

13073

AXLE PIN

PIN - hitch, drawbar, models with winch

1шт.

11

D33816

PIN

- mounting, drawbar, models with winch

1шт.

12

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, models with winch #125, Ext

2шт.

13

D35674

GUIDE - drawbar, models with winch

1шт.

14

D37830

BOLT - hex, special, models with winch

2шт.

15

25-1010

NUT,5/8"-11, G5

Models with winch 5/8"-11, G5

2шт.

16

R29823

CAP

DRAWBAR, models with ripper

1шт.

17

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Models with ripper Hex, 5/8"-11 x 2 1/4", G5

1шт.

18

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Models with ripper Hex, 5/8"-11 x 2 1/2", G5

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with ripper 5/8"

2шт.

20

25-1010

NUT,5/8"-11, G5

Models with ripper 5/8"-11, G5

2шт.

21

13073

AXLE PIN

PIN - hitch, drawbar, models with ripper

1шт.

22

D33816

PIN

- mounting, drawbar, models with ripper

1шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, , ring, models with ripper #125, Ext

1шт.

24

R29833

DRAWBAR, models with PTO

1шт.

25

13073

AXLE PIN

PIN - hitch, drawbar, models with PTO

1шт.

26

D33816

PIN

- mounting, drawbar, models with PTO

1шт.

27

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, models with PTO #125, Ext

2шт.

28

D35674

GUIDE - drawbar, models with PTO

1шт.

29

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Models with PTO Hex, 5/8"-18 x 2", G5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with PTO 5/8"

4шт.

31

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, models with PTO

4шт.

32

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2" - 13 NC x 3", models with PTO

2шт.

33

D33403

BUSHING

SPACER - collar, 15/16" long, models with PTO

2шт.

34

131-654

LOCK NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" - 13 NC, models with PTO

2шт.
