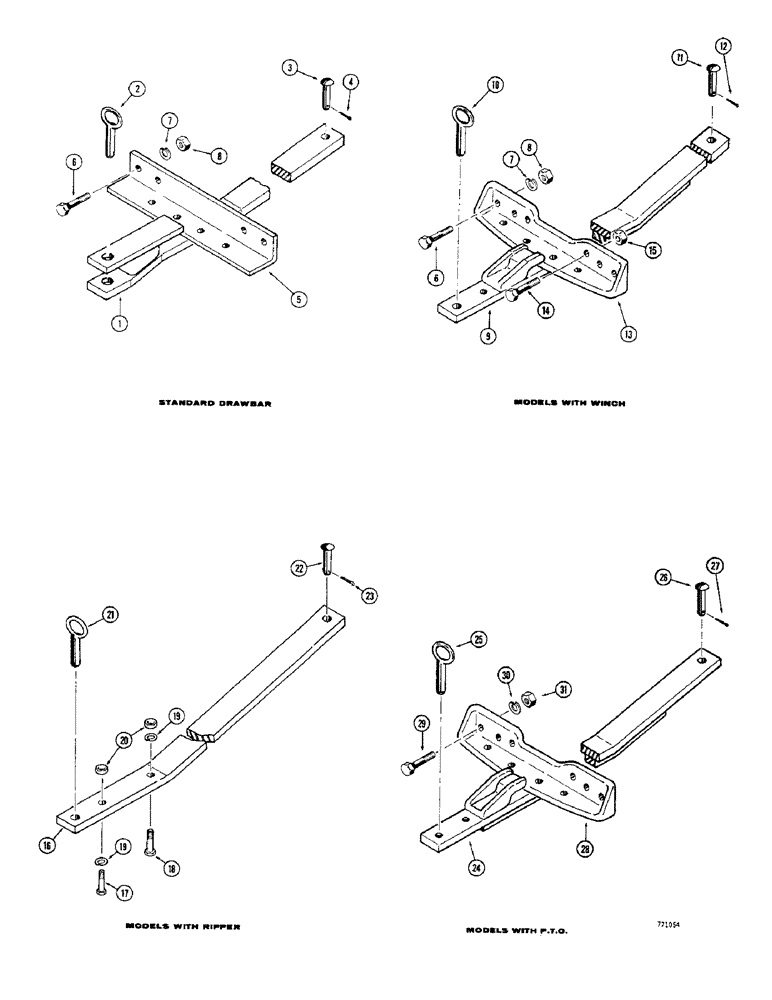

Запчасти Case 350 (394) - DRAWBARS, USED BEFORE TRACTOR SN 3050472 (05) - UPPERSTRUCTURE CHASSIS

1

D46111

DRAWBAR - used with no rear mounted equipment, standard

1шт.

2

13073

AXLE PIN

PIN - hitch, drawbar, standard

1шт.

3

13044

NUT

PIN - mounting, drawbar, standard

1шт.

4

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Standard drawbar 1/4" x 2"

1шт.

5

D40387

GUIDE - drawbar, standard

1шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Standard drawbar Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Standard drawbar 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

Standard drawbar 5/8"-11, G5

4шт.

6

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

Models with winch Hex, 5/8"-11 x 2", G5

4шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with winch 5/8"

4шт.

8

25-1010

NUT,5/8"-11, G5

Models with winch 5/8"-11, G5

4шт.

9

D21843

DRAWBAR - winch, models with winch

1шт.

10

13073

AXLE PIN

PIN - hitch, drawbar, models with winch

1шт.

11

13044

NUT

PIN - mounting, drawbar, models with winch

1шт.

12

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models with winch 1/4" x 2"

1шт.

13

D35674

GUIDE - drawbar, models with winch

1шт.

14

D37830

BOLT - hex, special, models with winch

2шт.

15

25-1010

NUT,5/8"-11, G5

Models with winch 5/8"-11, G5

2шт.

16

D45908

DRAWBAR - ripper, models

1шт.

17

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8" - 18 NF x 2-1/2", models with ripper

1шт.

18

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Models with ripper Hex, 5/8"-11 x 2 1/4", G5

1шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with ripper 5/8"

2шт.

20

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, models with ripper

2шт.

21

13073

AXLE PIN

PIN - hitch, drawbar, models with ripper

1шт.

22

13044

NUT

PIN - mounting, drawbar, models with ripper

1шт.

23

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models with ripper 1/4" x 2"

1шт.

24

13109

PIN

DRAWBAR - PTO

1шт.

25

13073

AXLE PIN

PIN - hitch, drawbar, models with PTO

1шт.

26

13044

NUT

PIN - mounting, drawbar, models with PTO

1шт.

27

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Models with PTO 1/4" x 2"

1шт.

28

D35674

GUIDE - drawbar, models with PTO

1шт.

29

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

Models with PTO Hex, 5/8"-18 x 2", G5

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Models with PTO 5/8"

4шт.

31

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, models with PTO

4шт.
