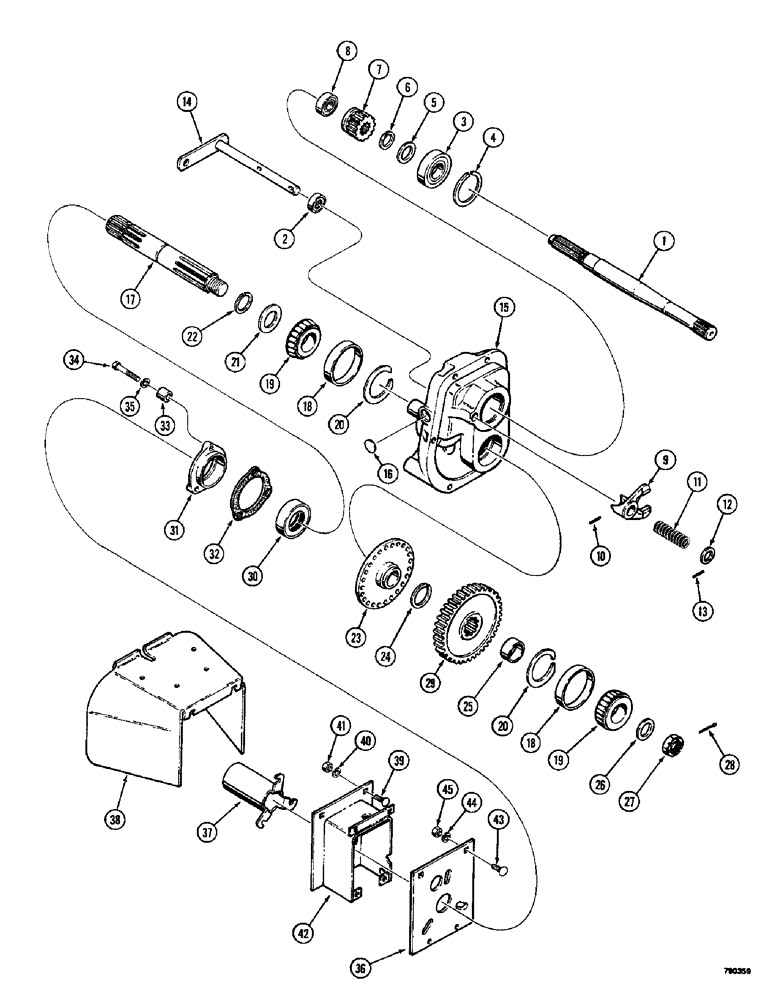

Запчасти Case 350 (392) - PTO ASSEMBLY (05) - UPPERSTRUCTURE CHASSIS

R30095

PTO ASSEMBLY - complete, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 45

1шт.

1

D41905

SHAFT

- drive, PTO

1шт.

2

A26778

SEAL

OIL SEAL - shift shaft

1шт.

3

G10624

BALL BEARING

BEARING - drive shaft

1шт.

4

A30091

RING, SNAP

SNAP RING -, Serial Range: bearing-shaft

1шт.

5

B18275

WASHER

- retainer, shaft bearing

1шт.

6

F62095

RING, SNAP

SNAP RING - drive shaft

1шт.

7

G10675

GEAR

- drive, PTO shaft

1шт.

8

G10623

BALL BEARING

BEARING - rear, drive shaft

1шт.

9

A36397

FORK TEDDER

FORK - shift, drive gear

1шт.

10

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN - roll, shift fork, 1/4" x 3/8"

1шт.

11

A30146

SPRING

- throw out, shift fork

1шт.

12

B18080

WASHER

- retainer, spring

1шт.

13

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring retainer 3/16" x 1 1/4", Slotted

1шт.

14

G30605

SHAFT ASSY.

SHAFT - shift-out

1шт.

15

A36887

HOUSING

- PTO drive

1шт.

16

41-16

PLUG,Exp, 1"

- expansion, housing

1шт.

17

A39092

SHAFT

- PTO output

1шт.

18

G57451

BEARING, CUP

CUP - bearing, PTO shaft

2шт.

19

G57452

ROLLER BEARING

CONE - bearing, PTO shaft

2шт.

20

A27414

RING

SNAP RING -, Serial Range: bearing-housing

2шт.

21

A36580

RETAINER

- rear bearing, PTO shaft

1шт.

22

A21619

CIRCLIP

SNAP RING - rear, PTO shaft

1шт.

23

R30022

DISC - tachometer

1шт.

24

A29969

WASHER

- spring

1шт.

25

A29360

SPACER

- front, driven gear

1шт.

26

195-53

WASHER,1" x 2" x .134"

- flat, 1"

1шт.

27

B18305

NUT

- slotted, 1" NF

1шт.

28

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

29

G10676

GEAR

- PTO driven

1шт.

30

G13803

OIL SEAL

- rear, PTO shaft

1шт.

31

A28805

RETAINER

- rear oil seal

1шт.

32

A30037

GASKET

- retainer

1шт.

33

B18083

BUSHING

SPACER - retainer

3шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

35

92-6

LOCK WASHER,3/8"

3шт.

36

A29087

PLATE

- guard mounting

1шт.

37

A38715

GUARD

- PTO shaft

1шт.

38

A27335

GUARD

- PTO

1шт.

39

11-612

BOLT

- hex, 3/8" - 16 NC x 3/4"

4шт.

40

92-6

LOCK WASHER,3/8"

4шт.

41

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

42

R30437

ADAPTER - PTO guard

1шт.

43

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

44

92-6

LOCK WASHER,3/8"

2шт.

45

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.
