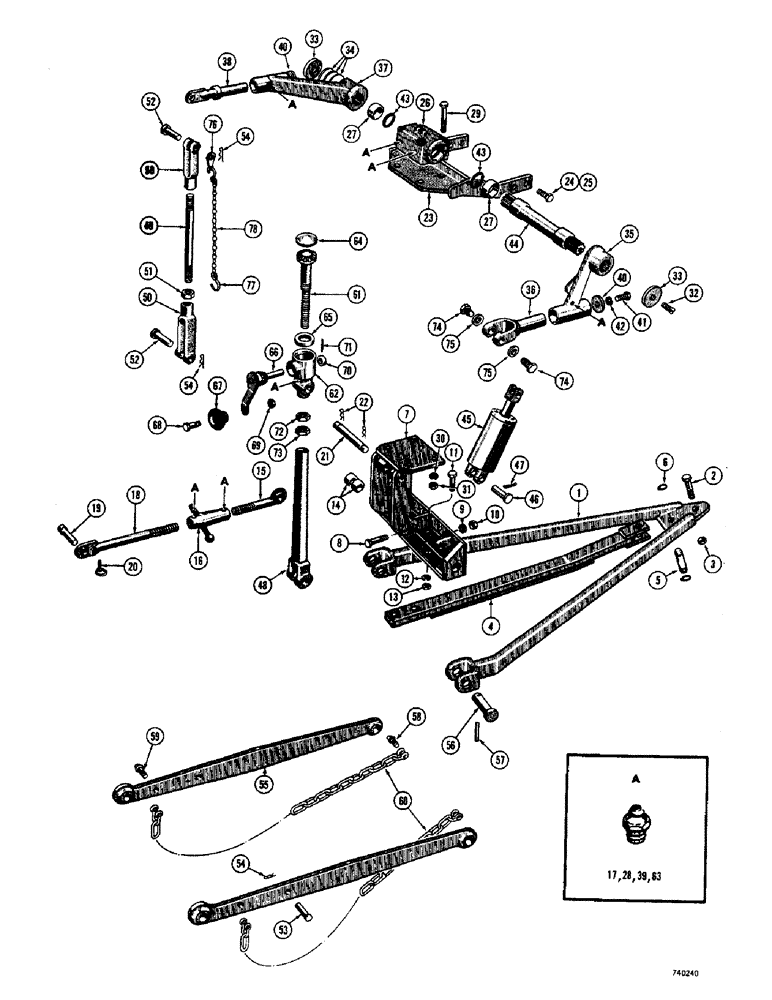

Запчасти Case 350 (386) - THREE POINT HITCH (05) - UPPERSTRUCTURE CHASSIS

1

D20635

ARM - mounting, drawbar, except ROPS models, parts, Serial Range: -3050472

1шт.

1

R29863

ARM - mounting, drawbar, previous ROPS models, parts, Start Serial: 3050472

1шт.

2

13-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

- hex, 1" - 8 NC x 3-1/2", drawbar and mounting parts

1шт.

3

230-41116

NUT,1"-8, GA

NUT - hex, self lock, 1" - 8 NC, drawbar and mounting parts

1шт.

4

39778

SCREW

DRAWBAR - three point hitch, except ROPS models, mounting parts, Serial Range: -3050472

1шт.

4

R29866

DRAWBAR - three point hitch, previous ROPS models, mounting parts, Start Serial: 3050472

1шт.

5

D25983

PIN

- drawbar and mounting parts

1шт.

6

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, drawbar and mounting parts

2шт.

7

D44601

BRACKET - mounting, three point hitch, drawbar and mounting parts

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

Drawbar and mounting parts Hex, 5/8"-11 x 1 3/4", G5, Full Thd

4шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Drawbar and mounting parts 5/8"

4шт.

10

25-1010

NUT,5/8"-11, G5

Drawbar and mounting parts 5/8"-11, G5

4шт.

11

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

Drawbar and mounting parts Hex, 1/2"-13 x 4 1/2", G5

2шт.

12

92-8

LOCK WASHER,1/2"

drawbar and mounting parts 1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, drawbar and mounting parts

2шт.

14

D20483

SPACER - mounting, front depth adjusting screw, drawbar and mounting parts

2шт.

15

A7240

SCREW - front, LH thread, turnbuckle

1шт.

16

A7821

TURNBUCKLE - depth adjusting screw

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, turnbuckle

2шт.

18

D20622

LINK - rear, RH thread, turnbuckle

1шт.

19

G16735

PIN

- mast, turnbuckle

1шт.

20

A30338

PIN

- keeper, mast pin, turnbuckle

1шт.

21

39798

BRACKET

PIN - depth adjusting link, turnbuckle

1шт.

22

A29054

HAIR PIN COTTER

- hair pin, cotter, turnbuckle

2шт.

23

D33890

STRAP - hanger, shaft and housing

1шт.

24

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Shaft and housing Hex, 3/4"-10 x 2 1/4", G5

4шт.

25

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", shaft and housing

4шт.

26

D33977

HOUSING

- rock shaft, shaft and housing, Includes: Ref. 27

1шт.

27

A23422

BUSHING

- housing, shaft and housing

2шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, shaft and housing

2шт.

29

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- hex, 5/8" - 11 NC x 5", shaft and housing

4шт.

30

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Shaft and housing 5/8"

4шт.

31

25-1010

NUT,5/8"-11, G5

Shaft and housing 5/8"-11, G5

4шт.

32

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- machine, flat head, 3/8" - 16 NC x 1", shaft and housing

2шт.

33

A27679

PLATE - lock, lift arm, shaft and housing

2шт.

34

A27678

SHIM - lock plate, LH, shaft and housing

3шт.

35

D20612

ARM - lift, RH, shaft and housing

1шт.

36

A35019

END

SWIVEL - lift arm, RH, shaft and housing

1шт.

37

D20614

ARM ASSY.

ARM - lift, LH, shaft and housing

1шт.

38

G16755

SWIVEL - LH lift arm, shaft and housing

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, draft arms, cylinder and lift links

2шт.

40

G16747

WASHER - retainer, lift arm swivel, draft arms, cylinder and links

2шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Draft arms, cylinder and lift links Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

42

92-6

LOCK WASHER,3/8"

three point hitch, draft arms, cylinder and lift link 3/8"

2шт.

43

A23423

SEAL

O-RING - shaft, draft arms, cylinder and lift links

2шт.

44

A23419

SHAFT - lift, draft arms, cylinder and links

1шт.

45

A11231

CYLINDER

- three point hitch, see figure 222 for cylinder, draft arms, cylinder and lift links

1шт.

46

A27344

PIN - mounting, cylinder, draft arms, cylinder and lift links

2шт.

47

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Three point hitch, draft arms, cylinder and lift link 1/4" x 1 1/2"

2шт.

48

A35195

YOKE

- leveling screw, draft arms, cylinder and lift links

1шт.

D20652

LINK

LIFT LINK ROD ASSEMBLY - left hand, draft arms, cylinder, Includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

ROD - lift link, left hand, draft arms, cylinder and lift links

1шт.

50

213-8

CLEVIS,3/4"-16

- lift link rod, left hand upper and lower, draft arms, cylinder and lift links

2шт.

51

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF, draft arms, cylinder and lift links

1шт.

52

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - clevis, draft arms, cylinder and lift links

2шт.

53

A27657

PIN

- A35195 yoke, draft arms, cylinder and lift links

1шт.

54

A29054

HAIR PIN COTTER

- hair, draft arms, cylinder and lift links

3шт.

55

D37077

ARM - draft, draft arms, cylinder and lift links

2шт.

56

D20629

PIN - mounting, draft arm, cylinder and lift links

2шт.

57

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , 3-point hitch, draft arms, cylinder and lift link 1/4" x 1 7/8", Slotted

2шт.

58

D21858

SCREW - shackle, draft arms, cylinder and lift links

2шт.

59

D37078

SCREW - shackle, draft arms, cylinder and lift links

2шт.

60

D21389

CHAIN - mounting bracket to draft arm, cylinder and lift links

2шт.

61

A149042

ADJUSTMENT SCREW

ROD - leveling, with gear, draft arms, cylinder and lift links

1шт.

62

A26236

GEARBOX ASSY

HOUSING - gear, adjusting screw, draft arms, cylinder and lift links

1шт.

63

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, draft arms, cylinder and lift links

1шт.

64

41-30

PLUG

- Welch, 1-7/8" diameter, draft arms, cylinder and lift links

1шт.

65

A27655

BEARING, BALL

BEARING - thrust, leveling screw, draft arms, cylinder and lift links

1шт.

66

A28584

CRANK

CRANK - adjusting screw, with gear, draft arms, cylinder and lift links

1шт.

67

A26845

KNOB

- adjusting screw crank, draft arms, cylinder and lift links

1шт.

68

A27652

SCREW

BOLT - mounting, knob, draft arms, cylinder and lift links

1шт.

69

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, draft arms, cylinder and lift links

1шт.

70

A27651

COLLAR

- leveling screw crankshaft, draft arms, cylinder and lift links

1шт.

71

135-45

PIN - locking, taper, 5/32" x 1", draft arms, cylinder and lift links

1шт.

72

A27656

NUT

- brass, 7/8" - 14 NF, draft arms, cylinder and lift links

1шт.

73

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, lock, 7/8" - 14 NF, draft arms, cylinder and lift links

1шт.

74

A27658

STUD

PIN - pivot, adjusting screw, draft arms, cylinder and lift links

2шт.

75

F20286

WASHER

- pivot pin, draft arms, cylinder and lift links

1шт.

D20504

CHAIN ASSEMBLY - lift link end, draft arms, cylinder, Includes: Ref. 76 - 78

1шт.

76

NSS

NOT SOLD SEPARAT

RETAINER - chain, draft arms, cylinder and lift links

1шт.

77

A27643

HOOK

S-HOOK - chain, draft arms, cylinder and lift links

2шт.

78

NSS

NOT SOLD SEPARAT

CHAIN - lift link rod, draft arms, cylinder

1шт.
