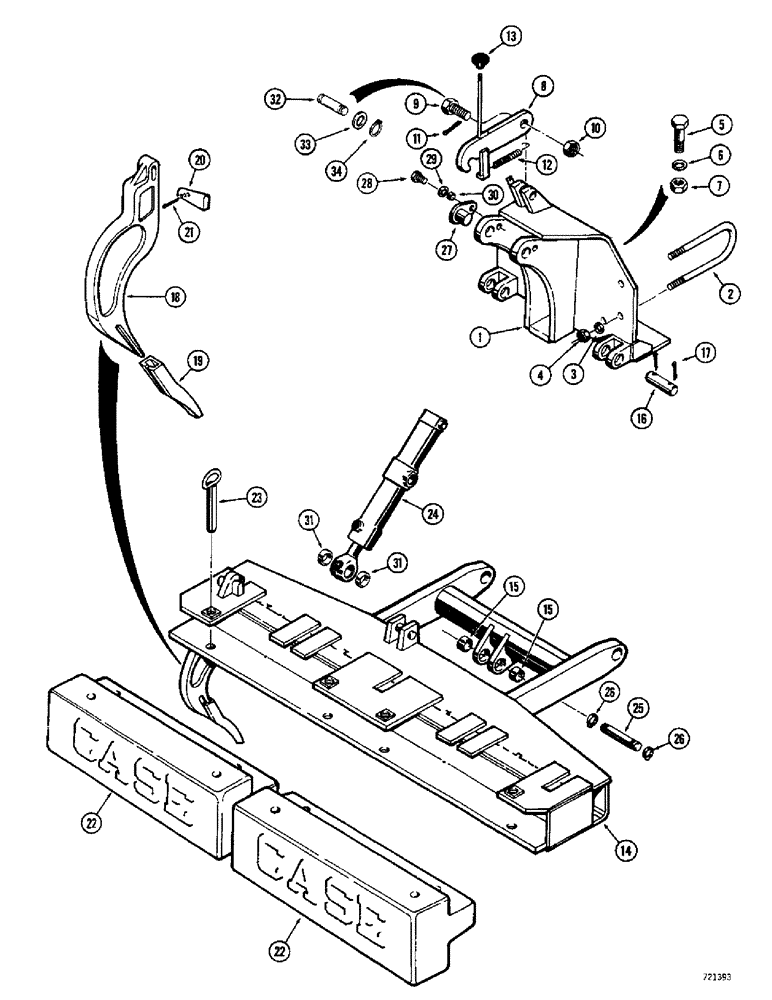

Запчасти Case 350 (384) - RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

REFERENCE

SPARE PART

FRAME - mounting, early production, uses 5/8" diameter U-bolts, use R33195 frame, (2) R33193 U-bolts, (4) 92-12 washers and (4) 25-1112 nuts

1шт.

1

R33195

FRAME

- mounting, late production, uses 3/4" diameter U-bolts

1шт.

2

31696

BOLT

U-BOLT - D45911 frame

2шт.

2

R33193

U-BOLT

- R33195 frame

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 31696 U-bolt 5/8"

4шт.

3

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , R33193 u-bolt 3/4"

4шт.

4

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF, 31696 U-bolt

4шт.

4

25-1112

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF, R33193 U-bolt

4шт.

5

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

6

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

25-1010

NUT,5/8"-11, G5

1шт.

8

D29985

LOCK

- transport safety

1шт.

9

D25951

BOLT

- special, early production, use 32, 33 and 34

1шт.

10

25-1220

SLOTTED NUT,1 1/4"-12, G5

NUT - hex, slotted, 1-1/4" - 12 NC, use with D25951 bolt

1шт.

11

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), , Use with D25951 bolt 1/8" x 2"

1шт.

12

R33370

SPRING

- lock

1шт.

13

31375

WASHER

- lock lever

1шт.

14

D33518

FRAME - ripper, Includes: Ref. 15

1шт.

15

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- frame

2шт.

16

31715

PIN

- mounting, ripper frame to mounting frame

2шт.

17

132-152

PIN

- cotter, 1/4" x 1-3/4"

4шт.

18

D23748

TOOTH

- ripper

5шт.

19

R33815

POINT

- ripper tooth

5шт.

20

D30592

WEDGE

RETAINER - wedge, ripper tooth

5шт.

21

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

5шт.

22

D28845

WEIGHT - ripper

2шт.

23

CAS19055

PIN ASSY.

PIN - retaining, weight

4шт.

24

REF

INSTRUCTION

CYLINDER - ripper, see page 226 for cylinders

1шт.

25

D26105

PIN ASSY.

PIN - mounting, cylinder to ripper frame

1шт.

26

D26918

SNAP RING,#125, Ext

Ring, Snap, , mounting pin #125, Ext

2шт.

27

35031

PIN

- trunnion, cylinder to mounting frame

2шт.

28

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2" - 20 NC x 1"

2шт.

29

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

30

D23740

BUSHING

- 35031 mounting pin

2шт.

31

R15389

SPACER

- cylinder rod

2шт.

32

D33816

PIN

- retaining lever, late production

1шт.

33

95-20

WASHER,1 1/4" x 2 3/8" x .165"

- flat, 1-3/8"

2шт.

34

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.
