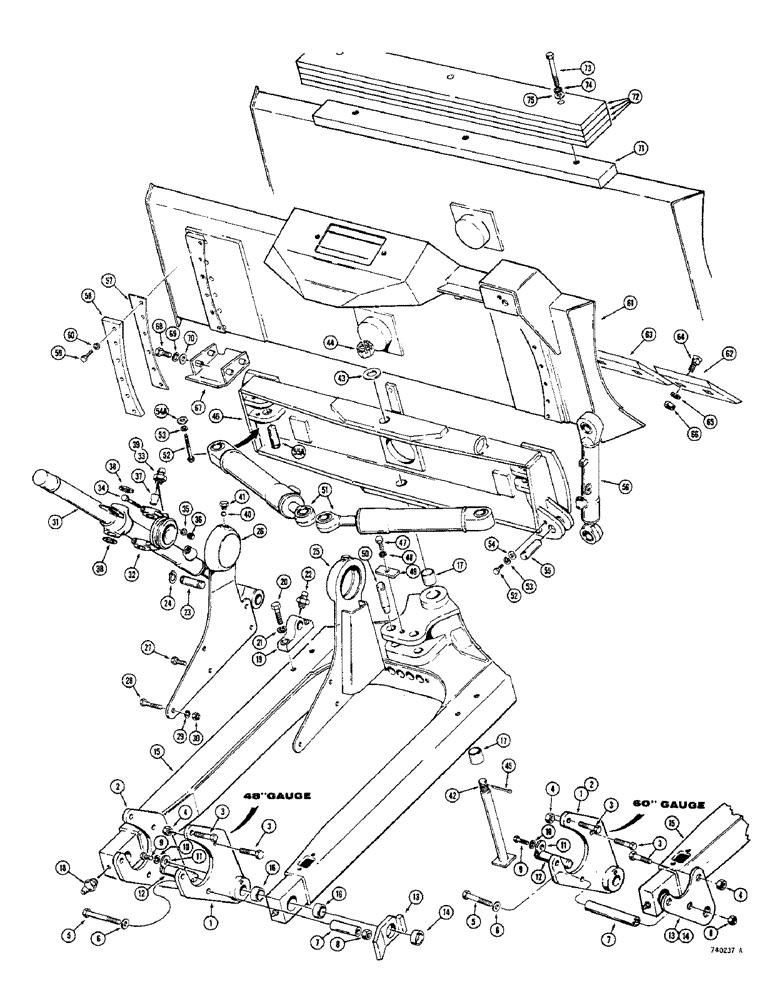

Запчасти Case 350 (380) - POWER ANGLE TILT DOZER - C-FRAME, MOLDBOARDS AND CYLINDERS USED SN 3047966 AND AFTER (05) - UPPERSTRUCTURE CHASSIS

1

R24510

MOUNTING BRACKET - RH, C-frame to crawler, 48'' [1219 mm] gauge models only

1шт.

2

R24509

BRACKET

MOUNTING BRACKET - LH, C-frame to crawler, 48'' [1219 mm] gauge models only

1шт.

3

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4" - 10 NC x 2-1/2", grade, 48'' [1219 mm] gauge models only

6шт.

4

25-1012

NUT,3/4"-10, G5

48'' [1219 mm] gauge models only 3/4"-10, G5

4шт.

5

15-12120

BOLT (MACHINE)

BOLT - hex, 3/4" - 10 NC x 7-1/2", 48'' [1219 mm] gauge models only

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 48'' [1219 mm] gauge models only

2шт.

7

R24504

SPACER - mounting bracket to block, 48'' [1219 mm] gauge models only

2шт.

8

25-1012

NUT,3/4"-10, G5

48'' [1219 mm] gauge models only 3/4"-10, G5

2шт.

9

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

48'' [1219 mm] gauge models only Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 48'' [1219 mm] gauge models only 5/8"

2шт.

11

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, 48'' [1219 mm] gauge models only

2шт.

12

R24503

PIN

- mounting, 48'' [1219 mm] gauge models only

2шт.

R24507

BLOCK ASSEMBLY - mounting, 48'' [1219 mm] gauge models only, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - mounting, 48'' [1219 mm] gauge models only

1шт.

14

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- block, 48'' [1219 mm] gauge models only

1шт.

1

R24509

BRACKET

MOUNTING BRACKET - RH inner, C-frame to crawler, 60' [1524 mm] gauge models only

1шт.

2

R24510

MOUNTING BRACKET - LH inner, C-frame to crawler, 60' [1524 mm] gauge models only

1шт.

3

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

60' [1524 mm] gauge models only Hex, 3/4"-10 x 2 1/2", G5

10шт.

4

25-1012

NUT,3/4"-10, G5

60' [1524 mm] gauge models only 3/4"-10, G5

8шт.

5

13-12108

BOLT,Hex, 3/4" - 10 x 6-3/4", Gr 5

- hex, 3/4" - 10 NC x 6-3/4", 60' [1524 mm] gauge models only

2шт.

6

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, 60' [1524 mm] gauge models only

2шт.

7

R25843

SPACER

- mounting bracket to block, 60' [1524 mm] gauge models only

2шт.

8

25-1012

NUT,3/4"-10, G5

60' [1524 mm] gauge models only 3/4"-10, G5

2шт.

9

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

60' [1524 mm] gauge models only Hex, 5/8"-11 x 1", G5, Full Thd

2шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 60' [1524 mm] gauge models only 5/8"

2шт.

11

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special, 60' [1524 mm] gauge models only

2шт.

12

R25853

PIN - mounting, 60' [1524 mm] gauge models only

2шт.

13

R25841

MOUNTING BRACKET - RH outer, C-frame to crawler, 60' [1524 mm] gauge models only

1шт.

14

R25840

MOUNTING BRACKET - LH outer, C-frame to crawler, 60' [1524 mm] gauge models only

1шт.

15

D46515

C-FRAME - power angle-tilt, used on all models, Includes: Ref. 16 and 17

1шт.

16

D35071

BUSHING

- C-frame mounting, used on all models

4шт.

17

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at leveling beam, used on all models

2шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8" NPT, used on all models

2шт.

19

D46466

BRACKET

MOUNTING BRACKET - lift cylinder to C-frame, used on all models

2шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Used on all models Hex, 5/8"-11 x 2 1/4", G5

4шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on all models 5/8"

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on all models

2шт.

23

D46467

PIN

- mounting, used on all models

2шт.

24

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, used on all models #125, Ext

4шт.

25

D48927

MOUNTING BRACKET - RH lift cylinder to frame, used on all models

1шт.

26

D48928

MOUNTING BRACKET - LH lift cylinder to frame, used on all models

1шт.

27

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Used on all models Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

28

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Used on all models Hex, 5/8"-11 x 2 1/4", G5

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used on all models 5/8"

10шт.

30

25-1010

NUT,5/8"-11, G5

Used on all models 5/8"-11, G5

10шт.

31

REF

INSTRUCTION

CYLINDER - lift, see Figure 222 for cylinders, used on all models

2шт.

32

D24497

TRUNNION

- inner race, used on all models

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, Start Serial: 3047966

2шт.

34

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3", Start Serial: 3047966

4шт.

35

92-6

LOCK WASHER,3/8"

, Start Serial: 3047966

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, Start Serial: 3047966

4шт.

37

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, cylinder to trunnion, Start Serial: 3047966

4шт.

38

D24516

WASHER

- special, Start Serial: 3047966

4шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, Start Serial: 3047966

4шт.

40

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia, Start Serial: 3047966

38шт.

41

D28481

PLUG

- special, Start Serial: 3047966

2шт.

42

D46464

PIN

- pivot, leveling beam mounting, Start Serial: 3047966

1шт.

43

95-22

WASHER,1 3/8" x 3 1/4" x .18"

- flat, 1-3/8", Start Serial: 3047966

1шт.

44

25-1222

NUT

- hex, slotted, 1-3/8" - 6 NC, Start Serial: 3047966

1шт.

45

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2", Start Serial: 3047966

1шт.

46

D46070

BEAM - leveling, Start Serial: 3047966

1шт.

47

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

, Start Serial: 3047966

1шт.

48

92-8

LOCK WASHER,1/2"

, Start Serial: 3047966

1шт.

49

D46462

LARGE PLATE

PLATE - locking, pin, Start Serial: 3047966

1шт.

50

D46461

PIN,31.75mm OD x 127mm L

- mounting, Start Serial: 3047966

2шт.

51

REF

INSTRUCTION

CYLINDER - angle, see page 224 for cylinders, Start Serial: 3047966

2шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

, Start Serial: 3047966

4шт.

53

92-6

LOCK WASHER,3/8"

, Start Serial: 3047966

4шт.

54

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special, Start Serial: 3047966

2шт.

54a

V20216

HOSE

- special, Start Serial: 3047966

2шт.

55

D46460

PIN

- mounting, tilt cylinder, Start Serial: 3047966

2шт.

55a

D33150

HEADED PIN

PIN - mounting, Start Serial: 3047966

2шт.

56

REF

INSTRUCTION

CYLINDER - tilt, parts list page 226 for cylinders, Start Serial: 3047966

1шт.

57

D49144

SHIM

- moldboard, Start Serial: 3047966

1шт.

58

D45894

LARGE PLATE

PLATE - guide, moldboard, Start Serial: 3047966

2шт.

59

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

, Start Serial: 3047966

12шт.

60

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8", Start Serial: 3047966

12шт.

R24511

MOLDBOARD - 79.6" (2022 MM) wide, models without backhoe, machinery item, Start Serial: 3047966

1шт.

R24516

MOLDBOARD - 79.6" (2022 MM) wide, backhoe models, machinery item, Start Serial: 3047966

1шт.

61

R24493

MOLDBOARD - R24511 and R24516 moldboards, Start Serial: 3047966

1шт.

61

R29636

MOLDBOARD - 103.6" (2631 MM) wide, machinery item, Start Serial: 3047966

1шт.

62

NLS

NO LONGER SERVICED

BLADE - cutting, end, R245811 and R24516 moldboards (7 7/8" 2 holes), Start Serial: 3047966

2шт.

62

R29629

EDGE

BLADE - cutting, end, R29636 moldboard (19.88" 4 holes), Start Serial: 3047966

2шт.

63

R24492

EDGE, CUTTING

BLADE - cutting, center (63.88 " 9 holes), Start Serial: 3047966

1шт.

64

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2" - 13 NC x 1-3/4", Start Serial: 3047966

17шт.

65

92-8

LOCK WASHER,1/2"

, Start Serial: 3047966

17шт.

66

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, Start Serial: 3047966

17шт.

67

R24491

SHOE (ASSY)

SHOE - moldboard, Start Serial: 3047966

2шт.

68

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

, Start Serial: 3047966

8шт.

69

92-8

LOCK WASHER,1/2"

, Start Serial: 3047966

8шт.

70

195-33

WASHER,1/2"

- flat, 1/2", Start Serial: 3047966

8шт.

71

R24519

PLATE - mounting, dozer/backhoe counterweights

1шт.

72

R24518

COUNTERWEIGHT - dozer/backhoe, 90 pounds (40.8 KG), plate style

4шт.

73

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- hex, 3/4" - 10 NC x 5-1/2", dozer/backhoe counterweights, plate style

3шт.

74

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Dozer/backhoe counterweights, plate style 3/4"

3шт.

75

95-12

WASHER,3/4"

- flat, , dozer/backhoe counterweights, plate style 3/4"

3шт.
