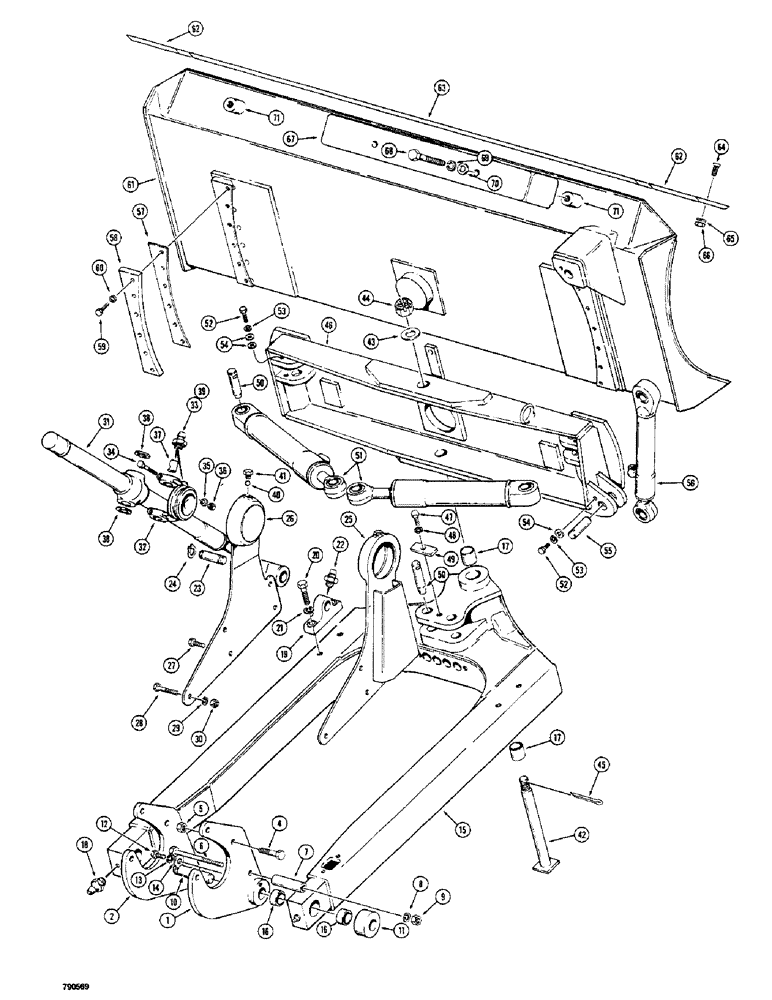

Запчасти Case 350 (376) - POWER ANGLE-TILT DOZER - C-FRAME, MOLDDBOARD AND CYLINDERS USED BEFORE SN 3047966 (05) - UPPERSTRUCTURE CHASSIS

1

D45892

MOUNTING BRACKET - RH, Serial Range: C-frame-crawler

1шт.

2

D45891

MOUNTING BRACKET - LH, Serial Range: C-frame-crawler

1шт.

3

RESERVED

1шт.

4

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4" - 10 NC x 2-1/2", grade 8

6шт.

5

25-1012

NUT,3/4"-10, G5

4шт.

6

13-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

- hex, 5/8" - 11 NC x 7-1/2"

2шт.

7

D45903

SPACER

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

9

25-1010

NUT,5/8"-11, G5

2шт.

10

D46458

AXLE PIN

PIN - mounting

2шт.

11

D45888

BLOCK - mounting

2шт.

12

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- special

2шт.

15

D45615

C-FRAME - power angle-tilt, Includes: Ref. 16 and 17

1шт.

16

D35071

BUSHING

- C-frame mounting

4шт.

17

D30929

BUSHING,38.33mm ID x 47.63mm OD x 38.1mm L

- at leveling beam

2шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree, 1/8" NPT

2шт.

19

D46466

BRACKET

MOUNTING BRACKET - lift, Serial Range: cylinder-C-frame

2шт.

20

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

23

D46467

PIN

- mounting

2шт.

24

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

25

D48927

MOUNTING BRACKET - RH, lift, Serial Range: cylinder-frame

1шт.

26

D48928

MOUNTING BRACKET - LH, lift, Serial Range: cylinder-frame

1шт.

27

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

28

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

30

25-1010

NUT,5/8"-11, G5

10шт.

31

REF

INSTRUCTION

CYLINDER - lift, see page 222 for cylinders

2шт.

32

D24497

TRUNNION

- inner race

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

34

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8" - 16 NC x 3"

4шт.

35

92-6

LOCK WASHER,3/8"

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

37

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

38

D24516

WASHER

- special

4шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

40

211-17

BALL,3/4" Dia

- steel, meter 3/4" Dia

38шт.

41

D24506

PLUG

- special

2шт.

42

D46464

PIN

- pivot, leveling beam mounting

1шт.

43

95-22

WASHER,1 3/8" x 3 1/4" x .18"

- flat, 1-3/8"

1шт.

44

25-1222

NUT

- hex, slotted, 1-3/8" - 6 NC

1шт.

45

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

46

D46070

BEAM - leveling

1шт.

47

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

48

92-8

LOCK WASHER,1/2"

1шт.

49

D46462

LARGE PLATE

PLATE - locking, pin

1шт.

50

D46461

PIN,31.75mm OD x 127mm L

- mounting, angling cylinder

4шт.

51

REF

INSTRUCTION

CYLINDER - angle, see page 224 for cylinders

2шт.

52

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

53

92-6

LOCK WASHER,3/8"

4шт.

54

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- special

6шт.

55

D46460

PIN

- mounting, tilt cylinder

2шт.

56

REF

INSTRUCTION

CYLINDER - tilt, see page 226 for cylinders

1шт.

57

D49144

SHIM

- moldboard

1шт.

58

D45894

LARGE PLATE

PLATE - guide, moldboard

2шт.

59

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

12шт.

60

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

61

D45867

MOLDBOARD - machinery item (91.63")

1шт.

62

NLS

NO LONGER SERVICED

BLADE - cutting, end (7 7/8" 2 holes)

2шт.

63

D46465

EDGE

BLADE - cutting, center (75.88" 11 holes)

1шт.

64

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, 1/2" - 13 NC x 1-3/4"

15шт.

65

92-8

LOCK WASHER,1/2"

15шт.

66

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

15шт.

67

D35480

COUNTERWEIGHT - dozer/backhoe, 200 pounds (90.7 KG)

2шт.

See Figure 382 for plate style counterweights.

1шт.

68

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

Dozer/backhoe counterweights Hex, 3/4"-10 x 4 1/2", G5

4шт.

See Figure 382 for plate style counterweights.

1шт.

69

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Dozer/backhoe counterweights 3/4"

4шт.

See Figure 382 for plate style counterweights.

1шт.

70

95-12

WASHER,3/4"

- flat, , dozer/backhoe counterweights 3/4"

4шт.

See Figure 382 for plate style counterweights.

1шт.

71

D35481

BOSS - mounting, dozer/backhoe counterweights

4шт.

See Figure 382 for plate style counterweights.

1шт.
