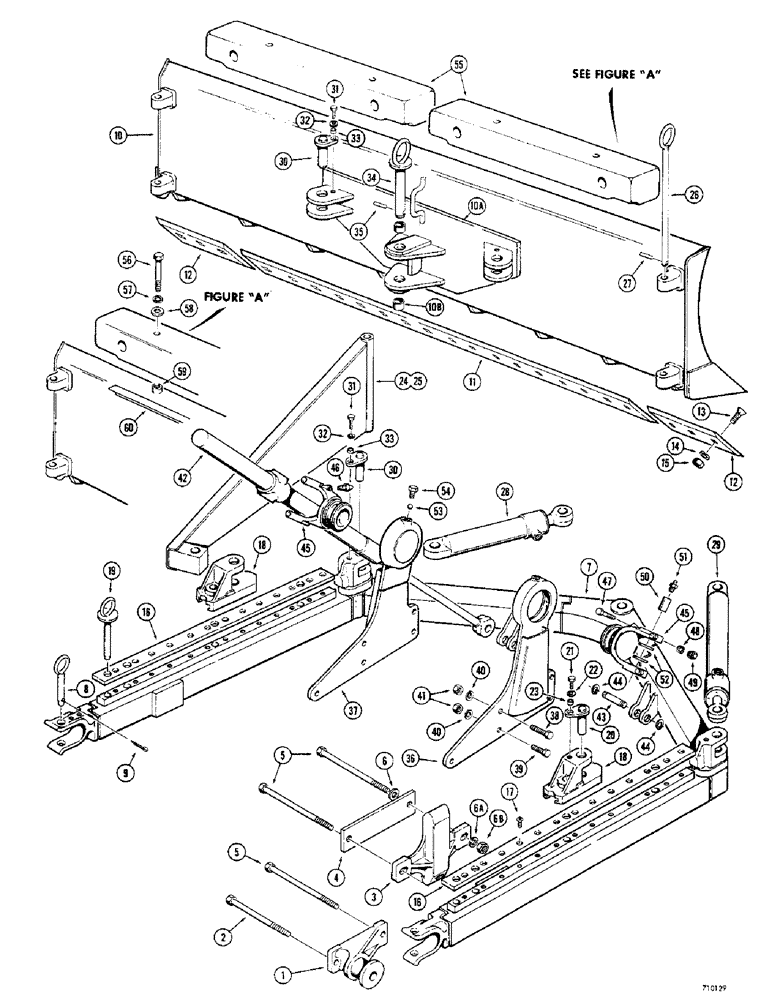

Запчасти Case 350 (368) - POWER ANGLE DOZER - C-FRAME, MOLDBOARD AND CYLINDERS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D30596
BRACKET - pivot, dozer attaching
2шт.
2
15-12192
BOLT
- 3/4" - 10 NC x 12"
2шт.
4
D30585
SPACER - rub plate
2шт.
5
15-12216
BOLT
- hex, 3/4" - 10 NC x 13-1/2"
6шт.
6
D34666
WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk
- special
4шт.
6a
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
6b
25-1012
NUT,3/4"-10, G5
8шт.
7
R30750
FUNNEL
C-FRAME
1шт.
8
16865
PIN - C-frame to pivot bracket
2шт.
9
132-154
COTTER PIN,1/4" x 2"
Pin, Split (Cotter), 1/4" x 2"
2шт.
10
D51971
MOLDBOARD - blade (91.875"), Includes: Ref. 10A and 10B
1шт.
10a
R24026
KIT - backing plate, moldboard, Includes: Ref. 10B
1шт.
10b
D20201
BUSHING
- plate
2шт.
11
38047
EDGE
- cutting, center (67 7/8" 17 holes)
1шт.
12
R29742
BLADE
EDGE - cutting, outer (12" 3 holes)
2шт.
13
19-828
BOLT,1/2"-13 x 1 3/4", G5
- plow, 1/2" - 13 NC x 1-3/4"
23шт.
14
92-8
LOCK WASHER,1/2"
23шт.
15
25-108
NUT,1/2"-13, G5
- hex, 1/2" - 13 NC
23шт.
17
164-132
HEX SOC SCREW,Flat Hd, 1/2" - 20 x 1 3/4"
SCREW - hex, socket, 1/2" - 20 NF x 1-3/4"
26шт.
19
38070
LUBE NIPPLE
PIN - angling stop
2шт.
20
D28564
PIN - mounting, strut to slide bracket
2шт.
21
14-812
BOLT,Hex, 1/2" - 20 x 3/4", Gr 5
- hex, 1/2" - 20 NF x 3/4"
2шт.
22
193-32
LOCK WASHER,Int Tooth, 1/2"
WASHER, LOCK, Int Tooth, 1/2"
2шт.
23
D23740
BUSHING
- lockhead pin
2шт.
24
D20224
STRUT - slide bracket to moldboard, RH
1шт.
25
D20225
STRUT - slide bracket to moldboard, LH
1шт.
26
D20247
PIN - mounting, Serial Range: strut-moldboard
2шт.
27
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, 1/4" x 2", Slotted
2шт.
28
REF
INSTRUCTION
CYLINDER - angling, LH, see page 224 for cylinders
1шт.
29
REF
INSTRUCTION
CYLINDER - angling, RH, see page 224 for cylinders
1шт.
30
31109
PIN ASSY.
PIN - mounting, angling cylinder to C-frame and moldboard
4шт.
31
14-812
BOLT,Hex, 1/2" - 20 x 3/4", Gr 5
- hex, 1/2" - 20 NF x 3/4"
4шт.
32
193-23
LOCK WASHER,Int Tooth, #5
WASHER - lock, internal tooth, 1/2"
4шт.
33
D23740
BUSHING
- lockhead pin
4шт.
34
38072
PIN
- C-frame to moldboard, center
1шт.
35
138-180
LOCK PIN,3/8" x 2 1/2", Slotted
PIN, 3/8" x 2 1/2", Slotted
1шт.
36
D48927
TRUNNION - cylinder, RH outer
1шт.
37
D48928
TRUNNION - cylinder, LH outer
1шт.
38
13-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
- hex, 5/8" - 11 NC x 1-1/4"
2шт.
39
13-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd
8шт.
41
25-1010
NUT,5/8"-11, G5
10шт.
42
REF
INSTRUCTION
CYLINDER - lift, see page 222 for cylinders
2шт.
43
D30609
PIN,25.4mm OD x 95.25mm L
- mounting, lift, Serial Range: cylinder-C-frame
2шт.
44
D25277
SNAP RING,23.5mm ID x 2.62mm Thk
- D30609 pin
4шт.
45
D24497
TRUNNION
- inner race
2шт.
46
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
2шт.
47
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
- hex, 3/8" - 16 NC x 3"
4шт.
48
92-6
LOCK WASHER,3/8"
4шт.
49
25-106
NUT,3/8"-16, G5
- hex, 3/8" - 16 NC
4шт.
50
D24508
PIN,31.74mm OD x 50.8mm L
- mounting, Serial Range: cylinder-trunnion
4шт.
51
219-1
LUBE NIPPLE,1/8" - 27 NPTF
GREASE FITTING - straight, 1/8" NPT
4шт.
52
D24516
WASHER
- thrust, special
4шт.
53
211-17
BALL,3/4" Dia
- steel, 3/4" Dia
38шт.
54
D24506
PLUG
- special
2шт.
55
D35480
COUNTERWEIGHT - dozer/backhoe, 200 lbs (90.7 KG)
2шт.
See Figure 382 for plate style counterweights.
1шт.
56
13-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
Dozer/backhoe counterweights Hex, 3/4"-10 x 4 1/2", G5
4шт.
See Figure 382 for plate style counterweights.
1шт.
57
92-12
LOCK WASHER,3/4"
WASHER, LOCK, , Dozer/backhoe counterweights 3/4"
4шт.
See Figure 382 for plate style counterweights.
1шт.
58
95-12
WASHER,3/4"
- flat, , dozer/backhoe counterweights 3/4"
4шт.
See Figure 382 for plate style counterweights.
1шт.
59
D35481
BOSS - mounting , dozer/backhoe counterweights
4шт.
See Figure 382 for plate style counterweights.
1шт.
60
D35483
BRACKET - support , dozer/backhoe counterweights
1шт.
See Figure 382 for plate style counterweights.
1шт.
