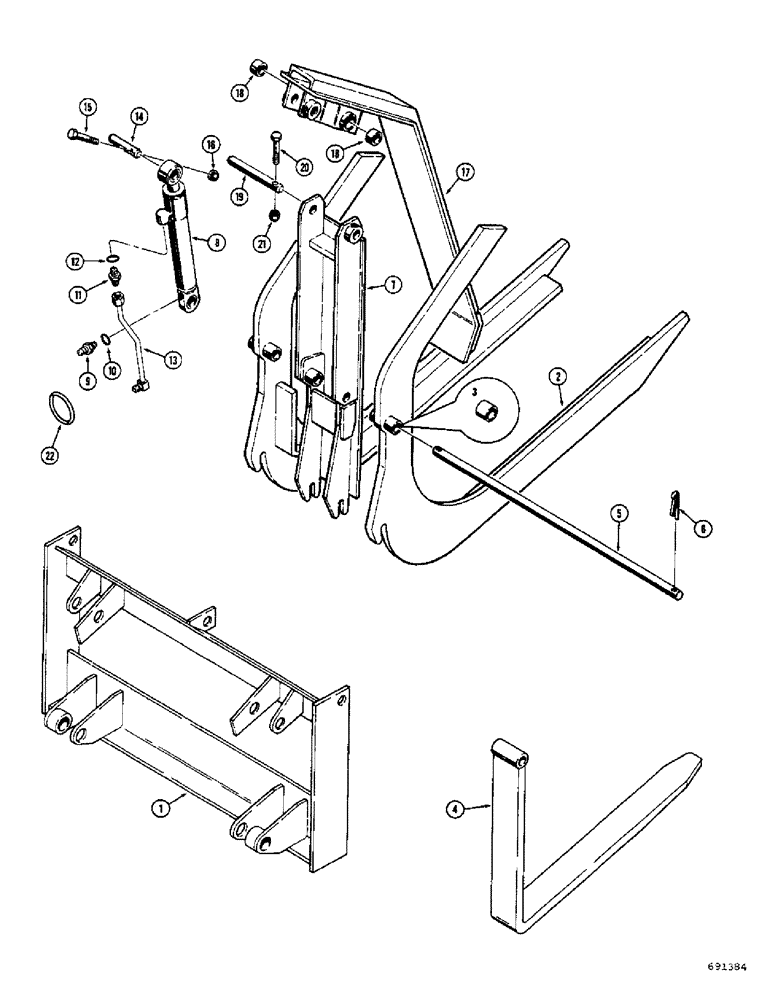

Запчасти Case 350 (364) - LOGGING FORK, PALLET FORK AND GRAPPLE ATTACHMENT (05) - UPPERSTRUCTURE CHASSIS

1

D48002

FRAME - pallet and logging

1шт.

2

D43124

FORK TEDDER

FORK - logging, Includes: Ref. 3

2шт.

3

D21942

BUSHING - fork

1шт.

4

D47999

FORK

- pallet

2шт.

5

D48001

SHAFT - fork

1шт.

6

132-152

PIN

- cotter, 1/4" x 1-3/4"

2шт.

7

D46133

FRAME - grapple

1шт.

8

REF

INSTRUCTION

CYLINDER - grapple, see Figure 222 for cylinders

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male, straight, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

11

D48030

CONNECTOR, ELEC

CONNECTOR - special, restrictor, Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- connector

1шт.

13

D48028

TUBE - hose to cylinder, closed end

1шт.

14

D46141

PIN,31.75mm OD x 101.6mm L

- cylinder mounting

1шт.

15

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

1шт.

16

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

1шт.

17

D46114

ARM - grapple attachment, Includes: Ref. 18

1шт.

18

D32890

BUSHING

- arm

2шт.

19

D46142

PIN - arm mounting

1шт.

20

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8" - 16 NC x 2-3/4"

1шт.

21

131-352

LOCK NUT,3/8"-16, GA

NUT - hex, self lock, 3/8" - 16 NC

1шт.

22

D48031

RING - hose

1шт.
