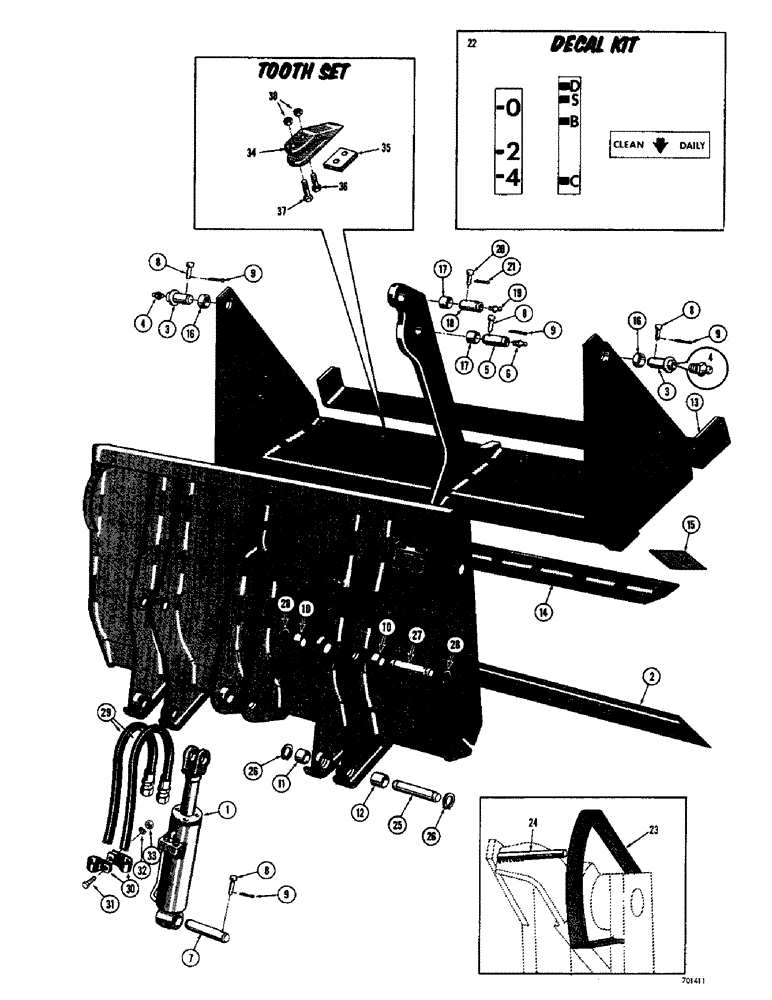

Запчасти Case 350 (358) - D34421 DROTT 4-IN-1 BUCKET (05) - UPPERSTRUCTURE CHASSIS

D34421

BUCKET - without teeth, machinery item, see Figure 2 for ordering, Includes: Ref. 1 - 24

1шт.

1

D35616

CYLINDER

- clam, parts list figure 250

1шт.

D35646

BLADE

ASSEMBLY - bucket, Includes: Ref. 2 - 12

1шт.

2

D35636

EDGE

CUTTING EDGE - blade assembly

1шт.

3

D35637

PIN

- blade to clam, Includes: Ref. 4

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

5

D35638

PIN

- blade to clam, Includes: Ref. 6

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

7

D35639

PIN

- cylinder, Serial Range: base-blade

1шт.

8

A18664

CLEVIS PIN

PIN - clevis, 3/8" x 2-1/8"

4шт.

9

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

10

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket hinge

4шт.

11

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- inner bucket hinge, lower

2шт.

12

D33054

BUSHING

- outer bucket hinge, lower

2шт.

D35630

CLAW

CLAM ASSEMBLY - bucket, Includes: Ref. 13 - 21

1шт.

13

D35631

EDGE

CUTTING EDGE - clam, front

1шт.

14

D35632

CUTTING EDGE

- clam, rear

1шт.

15

D35641

HOOK

- grab

2шт.

16

D35633

BUSHING

- outer

2шт.

17

D35634

BUSHING

- center

2шт.

18

D35635

PIN - clam to cylinder, Includes: Ref. 19

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

20

D35649

X

PIN - clevis, 3/8" x 2-3/4"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

22

D35613

KIT - decals

1шт.

23

D34458

LARGE PLATE

PLATE - indicator

1шт.

24

D34456

POINTER - indicator

1шт.

25

D33146

AXLE PIN

PIN - mounting, lower

2шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , lower mounting pin #175, Ext

4шт.

27

D32931

PIN

- mounting, upper

2шт.

28

D25279

SNAP RING,M35, Int

- upper mounting pin

4шт.

29

D34401

HOSE ASSY.

HOSE - 60" (1524 MM) long

2шт.

30

49855

CLAMP

- hose

2шт.

31

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

32

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

34

D35642

TOOTH

- bucket, optional

6шт.

35

D35643

SPACER - tooth, bucket, optional

6шт.

36

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Bucket teeth, optional Hex, 1/2"-13 x 2", G5

6шт.

37

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2" - 13 NC x 2-1/4", bucket teeth, optional

6шт.

38

25-108

NUT,1/2"-13, G5

BOLT - hex, 1/2" - 13 NC, bucket teeth, optional

12шт.
